What Is P1209 Accessor Trunk Cable?

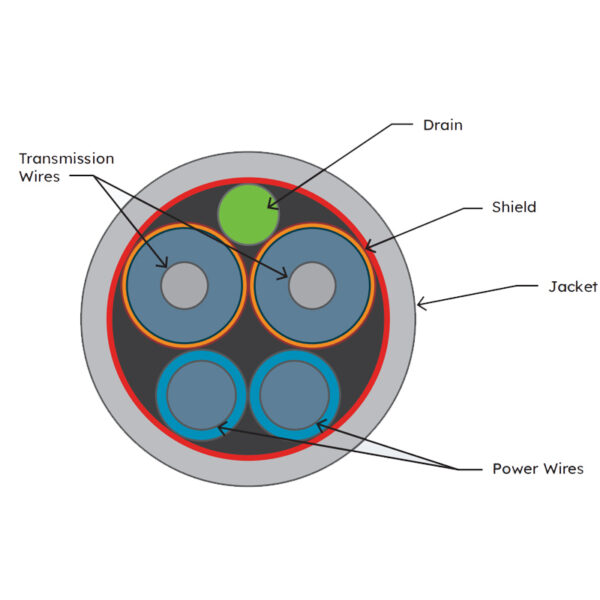

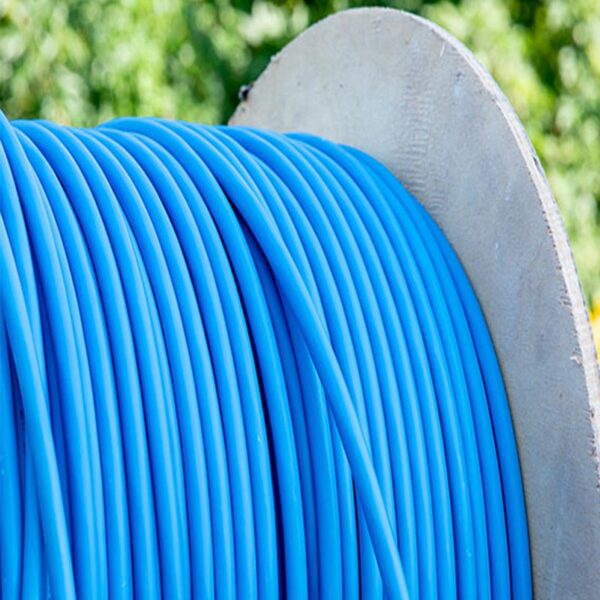

The P1209 Accessor Trunk Cable is a four-conductor mining communication cable designed for power and data transmission within underground monitoring and control systems.
The cable combines:
- Two communication conductors
- Two power conductors
- Shielding for signal protection
- Waterproof PVC outer jacket
- Heavy-duty construction for harsh environments
Unlike traditional mining communication systems that require extensive hardwiring, the P1209 cable operates as a single trunk communication network. Monitoring and control devices can be connected anywhere along the cable route, simplifying installation and reducing infrastructure costs

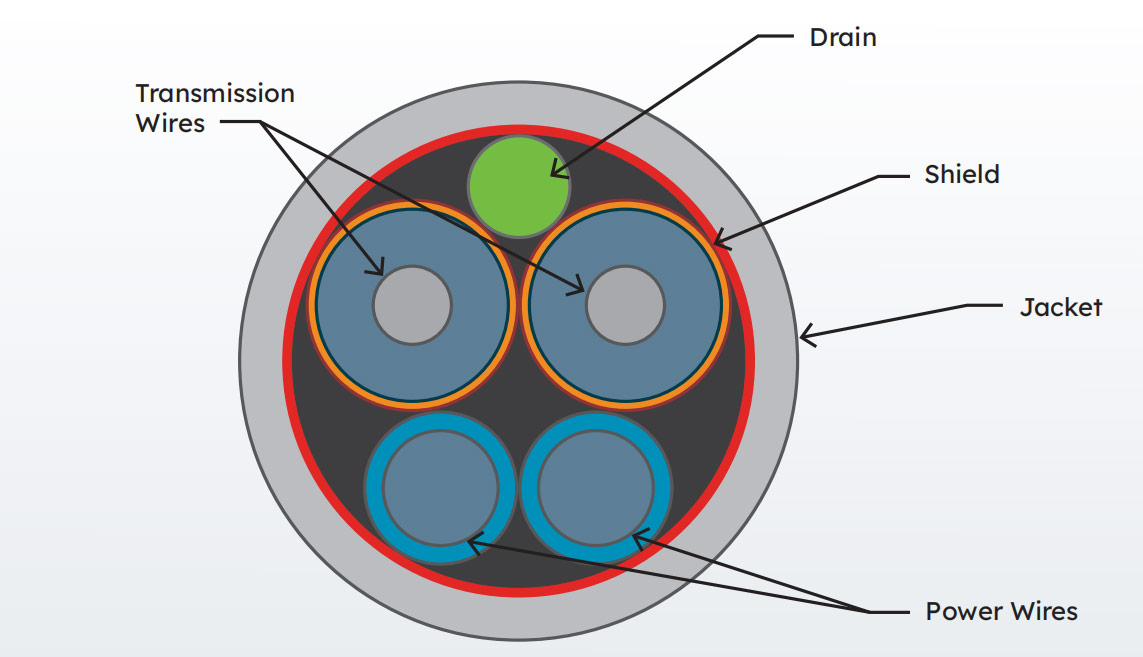

Information Construction of P1209 Accessor Trunk Mine Data Comimuication Cable
VOLTAGE: 0.6/1kV
PHYSICAL DIMENSIONS: Maximum Outside Diameter: 0.5 inches (1.27 cm)
ELECTRICAL REQUIREMENTS: Maximum Voltage: 30 V DC
OPERATING REQUIREMENTS: Temperature: 0 to +140F (-18 to +60C)
CONDUCTOR COLOR CODE: Brown: Receiving
Yellow: Transmitting
Orange: Common
Red: 24 V DC Power
CABLE TYPE: P1209 Cable
COMMUNICATION LINES: #18 AWG
POWER LINES: #12 AWG
Technical Specifications of P1209 Accessor Trunk Cable
Operating Conditions
- Operating Temperature：-18°C to +60°C
- Operating Temperature： 0°F to +140°F
- Application Environment：Underground Mining
Physical Characteristics
- Maximum Outside Diameter: 0.5 in (12.7 mm)
- Jacket Material: Waterproof PVC
- Cable Construction: Four-Conductor
- Shielding: Yes
- Heavy-Duty Design: Yes
Electrical Characteristics
- Maximum Voltage: 30 VDC
- Communication Conductors: 18 AWG
- Power Conductors: 12 AWG
- Power Configuration : 24 VDC
Conductor Color Code
- Color: Function
- Brown: Receiving
- Yellow: Transmitting
- Orange: Common
P1209 Accessor Trunk Cable for Underground Mining Monitoring Data Communication Systems
In today’s mining industry, real-time monitoring, automation, and safety systems are essential for maintaining productivity and ensuring worker safety.
The P1209 Accessor Trunk Cable is specifically designed to meet these demanding requirements. Engineered for underground mining environments, this heavy-duty communication and power cable serves as the backbone of mining monitoring and control networks. Its rugged construction, waterproof protection, and long-distance transmission capabilities make it an ideal solution for mine-wide supervisory control and monitoring systems.
Whether used in coal mines, hard rock mining operations, tunneling projects, or industrial underground facilities, the P1209 cable provides dependable connectivity for sensors, controllers, monitoring devices, and communication equipment.
Key Features of P1209 Mining Cable
Heavy-Duty Underground Construction
Mining environments expose cables to:
- Mechanical impacts
- Moisture
- Dust
- Vibration
- Abrasion
- Chemical contaminants
The P1209 cable is designed with a rugged waterproof PVC jacket that protects internal conductors against harsh underground conditions. The durable outer sheath helps extend service life and reduce maintenance requirements.
Flexible Device Connectivity
Devices can be connected in parallel anywhere along the trunk cable.
Benefits include:
- Easy system expansion
- Simplified installation
- Reduced wiring requirements
- Lower maintenance costs
- Faster deployment
A single trunk network can support hundreds of devices and thousands of monitoring points depending on system architecture
