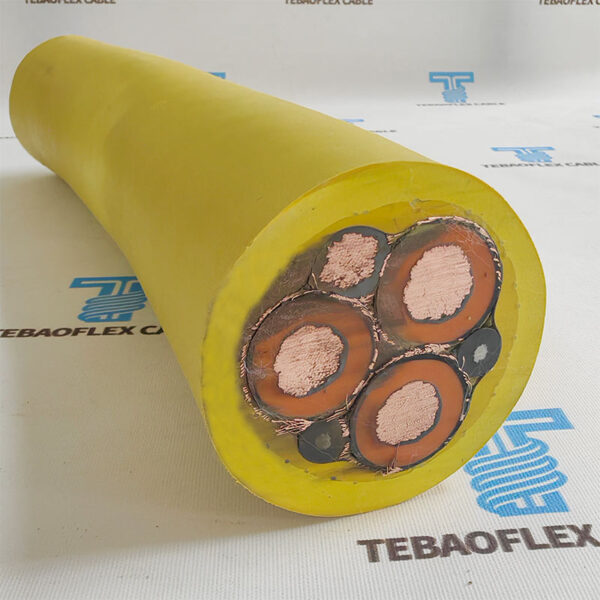

NTSCGECEWOU (N)TSCGECEWÖU Submersible ABT FO Mining Cable

(N)TSCGECEWÖU also call NTSCGECEWOU cable, it is designed for monospiral drum reeling and trailing operations and will withstand the rigours of the environmental and mechanical operations associated with the Mining industry.

  • Voltage1.8/3kV – 12/20kV
  • Phase conductorClass 5 tinned copper conductor
  • InsulationRubber compound Type 3GI3
  • Protective earthIndividual copper wire braid
  • Submersible300 meters
  • Phase cross-section25 – 185 mm2
  • Overall diameter38.2 – 76.3 mm
  • Nominal weight1125 – 10330 kg/km

Full specificationsRequest a quotation

Request a QuoteSend EmailWhatsApp
Category: Tags: , , , ,
Get Quote
Product overview

(N)TSCGECEWÖU also call NTSCGECEWOU cable, it is designed for monospiral drum reeling and trailing operations and will withstand the rigours of the environmental and mechanical operations associated with the Mining industry.

NTSCGECEWOU (N)TSCGECEWÖU Submersible Cable suitable for in salty and brackish water up to 300 meters under high mechanical stresses

(N)TSCGECEWÖU NTSCGECEWOU ABT Cable have an Anti-Torsion Polyester Braid lay (option: check ground core)

Request a technical quotationView specifications

Application & Features

Selection overview

(N)TSCGECEWÖU Cable Different Applications

There are variants of these trailing cables with fiber optic, anti-torsion braids, or suitable for permanent submersion, to suit individual applications and their environments:

Types Application
N)TSCGECEWÖU Flexible cable for fixed energy distribution in mines and alongside material handling equipment.
(N)TSCGECEWÖU – ATB Flexible cable for providing energy supply to heavy mobile equipment during trailing operations in opencast mines. Applications include drag lines, shovels, dredges and drills performing under extreme mechanical stresses and abrasion.
(N)TSCGECEWÖU – ATB (Ground conductor) The ATB cable with Ground Check Conductor has additional Earth Protective Conductors over and above the Protective Earth Conductor of individual copper braid. The cable benefits from 2x copper earth conductors and 1x copper checking earth wiring conductor.
(N)TSCGECEWÖU – Submersible Suitable for depths up to 300m and for permanent use in salty or brackish water, these flexible supply cables are used for applications such as pumps, dredges and floating docks, as well as trailing operations of opencast mining equipment.

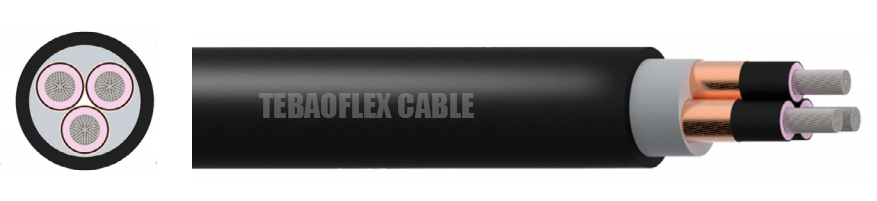

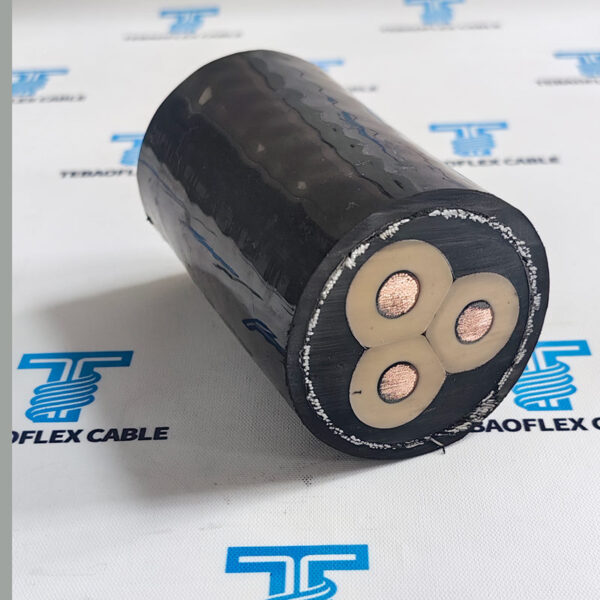

(N)TSCGECEWÖU-submersible-cable

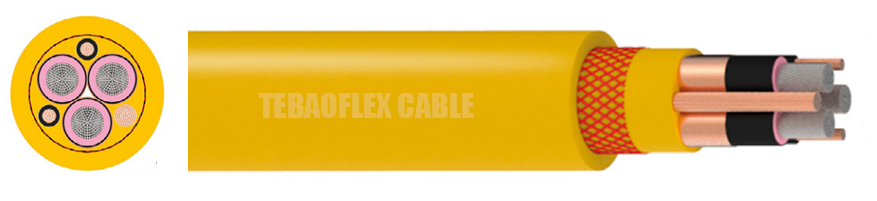

(N)TSCGECEWÖU-ABT-cable

Specifications

Technical data

(N)TSCGECEWÖU Cables feature different structures for different applications

Types (N)TSCGECEWÖU Cable (N)TSCGECEWÖU – ATB Cable (N)TSCGECEWÖU ATB Cable (Ground Conductor) (N)TSCGECEWÖU – Submersible Cable
Voltage 3.6/6kV, 6/10kV 8.7/15kV, 12/20kV 1.8/3kV, 3.6/6kV, 6/10kV 3.6/6kV, 6/10kV
Phase Conductor Class 5 Flexible Stranded Tinned Copper
Insulation Rubber Compound
Semi-Conductive Layer Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
Protective Earth Conductor Individual Copper Wire Screen Individual Copper Wire Braid Individual Copper Braid Individual Copper Wire Braid
2 x Copper Earth Conductors
1 x Copper Checking Earth Wiring Conductor
Center Filler Rubber Compound on a Textile Polyester Support
Inner Sheath Rubber Compound Abrasion Resistant Rubber Compound EPR Rubber Compound with Water Proofing
Anti-torsion Braid – Polyester Braid between the Inner and Outer Sheath –
Outer Sheath Rubber Abrasion Resistant Rubber Compound CM Rubber Compound Water Proofing

(N)TSCGECEWÖU Submersible Cable

VOLTAGE PHASE + EARTH NOMINAL CROSS SECTIONAL AREA CONDUCTOR DIAMETER MINIMUM OVERALL DIAMETER MAXIMUM OVERALL DIAMETER NOMINAL WEIGHT
kV NO. OF CORES mm2 mm2 mm mm mm kg/km
3.6/6 3+3 25 25/3E 6.8 43.9 45.6 2870
3.6/6 3+3 35 25/3E 7.8 45.4 47.1 3230
3.6/6 3+3 50 25/3E 9.4 48.5 50.3 3860
3.6/6 3+3 70 35/3E 11.2 54.1 55.9 5010
3.6/6 3+3 95 50/3E 12.7 58.4 60.2 6150
3.6/6 3+3 120 70/3E 14.4 62.5 64.8 7450
3.6/6 3+3 150 70/3E 16.3 68.9 71.3 8980
3.6/6 3+3 185 90/3E 17.6 71.9 74.3 10290
6/10 3+3 25 25/3E 6.8 43.9 46.2 2910
6/10 3+3 35 25/3E 7.8 45.4 47.7 3270
6/10 3+3 50 25/3E 9.4 48.5 50.9 3900
6/10 3+3 70 35/3E 11.2 54.1 56.5 5050
6/10 3+3 95 50/3E 12.7 58.4 60.8 6190
6/10 3+3 120 70/3E 14.4 62.5 65.5 7490
6/10 3+3 150 70/3E 16.3 68.9 72 9020
6/10 3+3 185 90/3E 17.6 71.9 75 10330
8.7/15 3+3 25 25/3E 6.8 49.4 51.2 1125
8.7/15 3+3 35 25/3E 7.8 50.9 52.7 1575
8.7/15 3+3 50 25/3E 9.4 55.8 57.6 2250
8.7/15 3+3 70 35/3E 11.2 59.6 61.4 3150
8.7/15 3+3 95 50/3E 12.7 63.3 65.6 4257
8.7/15 3+3 120 70/3E 14.4 69.8 72.2 5400
12/20 3+3 25 25/3E 6.8 55.9 57.7 1125
12/20 3+3 35 25/3E 7.8 57.3 59.1 1575
12/20 3+3 50 25/3E 9.4 60.5 62.3 2250
12/20 3+3 70 35/3E 11.2 66.1 67.9 3150
12/20 3+3 95 50/3E 12.7 69.8 72.2 4257

(N)TSCGECEWÖU ABT Check Ground Conductor Cable

VOLTAGE PHASE + EARTH+GROUND CHECK CONDUCTOR NOMINAL CROSS SECTIONAL AREA CONDUCTOR DIAMETER MINIMUM OVERALL DIAMETER MAXIMUM OVERALL DIAMETER NOMINAL WEIGHT
Phase Conductor Earth Conductor
kV NO. OF CORES mm2 mm2 Ground Check Conductor mm mm mm kg/km
1.8/3 3+2+1 25 45713 10 6.8 38.2 42.3 1125
1.8/3 3+2+1 35 45713 10 7.8 39.7 44 1575
1.8/3 3+2+1 50 45713 10 9.4 42.7 47.2 2250
1.8/3 3+2+1 70 12816 10 11.2 48.1 53 3150
1.8/3 3+2+1 95 18295 10 12.7 53 58.3 4257
1.8/3 3+2+1 120 25600 10 14.4 57.4 63.1 5400
1.8/3 3+2+1 150 25600 10 16.3 63.8 70 6750
1.8/3 3+2+1 185 34731 10 17.6 65.6 71.9 8325
3.6/6 3+2+1 25 45713 10 6.8 45.4 50.1 1125
3.6/6 3+2+1 35 45713 10 7.8 46.7 51.5 1575
3.6/6 3+2+1 50 45713 10 9.4 51.5 56.7 2250
3.6/6 3+2+1 70 12816 10 11.2 55.2 60.7 3150
3.6/6 3+2+1 95 18295 10 12.7 58.9 64.8 4257
3.6/6 3+2+1 120 25600 10 14.4 65.1 71.4 5400
3.6/6 3+2+1 150 25600 10 16.3 69.9 76.3 6750
6/10 3+2+1 25 45713 10 6.8 48.1 53 1125
6/10 3+2+1 35 45713 10 7.8 49.5 54.6 1575
6/10 3+2+1 50 45713 10 9.4 54.2 59.7 2250
6/10 3+2+1 70 12816 10 11.2 57.9 63.6 3150
6/10 3+2+1 95 18295 10 12.7 61.6 67.7 4257
6/10 3+2+1 120 45713 10 14.4 67.9 74.4 5400
8.7/15 3+2+1 25 45713 10 6.8 53.9 59.3 1125
8.7/15 3+2+1 35 45713 10 7.8 55.3 60.8 1575
8.7/15 3+2+1 50 45713 10 9.4 58.5 64.2 2250
8.7/15 3+2+1 70 12816 10 11.2 64.2 70.5 3150
8.7/15 3+2+1 95 18295 10 12.7 67.9 74.4 4257
12/20 3+2+1 25 45713 10 6.8 58.2 63.9 1125
12/20 3+2+1 35 45713 10 7.8 59.8 65.7 1575
12/20 3+2+1 50 45713 10 9.4 64.6 70.9 2250
12/20 3+2+1 70 12816 10 11.2 68.3 74.8 3150

Construction

Material and build-up

NTSCGECEWOU (N)TSCGECEWÖU Submersible Mining Cable

  • Voltage: 3.6/6kV, 6/10kV, 8.7/15kV
  • Phase Conductor: Class 5 tinned copper conductor
  • Insulation: Rubber compound Type 3GI3
  • Semi-Conductive Layers: Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
  • Protective Earth Conductor: Individual copper wire braid
  • Central Filler: compound on a textile polyester support
  • Inner Sheath: EPR rubber compund with water proofing
  • Outer Sheath: CM rubber compound water proofing (Black)
  • Submersible: 300 meters
  • Ambient Temperature: Fixed: -40ºC to +80°C;
    Flexed: -25°C to +60°C
  • Maximum Permissible Water Temperature: +40°C
  • Minimum Bending Radius: Fixed: 6 x overall diameter
    Flexed: 10 x overall diameter
  • Application: the (N)TSCGECEWÖU Submersible Cable for use in permanent immersion in salty and brackish water up to 300 metres under high mechanical stresses. For applications such as pumps, dredgers and floating docks. It is suitlable for trailing operations of opencast mining equipment

(N)TSCGECEWÖU NTSCGECEWOU ABT Ground Check Core Mining Cable

  • Voltage: 3.6/6kV, 6/10kV, 8.7/15kV
  • Phase Conductor: tinned copper conductor Class 5
  • Insulation: Rubber compound Type 3GI3
  • Semi-Conductive Layers: Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation from 3.6/6kV
  • Earth Conductor: Individual copper wire braid
    2 x copper earth conductors
    1 x copper checking earth wiring conductor
  • Central Filler: Rubber compound on a textile polyester support
  • Inner Sheath: Abrasion resistant rubber compound
  • Anti-Torsion Braid: Polyester braid between the inner and outer sheath
  • Outer Sheath: Abrasion resistant rubber compound (Yellow)
  • Ambient Temperature: Fixed: -40ºC to +80°C;
    Flexed: -25°C to +60°C
  • Maximum Short Circuit Temperature: +250°C
  • Minimum Bending Radius: Fixed: 6 x overall diameter
    Flexed: 10 x overall diameter
  • Application: the (N)TSCGECEWÖU ABT Check Gound Conductor Cable for energy supply to heavy mobile equipment such as drag lines, shovels, dredges and drills, under extreme mechanical stresses and abrasion during trailing operation in opencast mines. Special construction with additional ground check conductor.

More Details

Comparison and references

Guide of (NTSCGECEWOU) (N)TSCGECEWÖU Cable Installation

In the first place, prior to installation, inspect the cable for damage and confirm it matches required voltage and specifications.

Secondly, keep the working area dry and clean. Lay the (N)TSCGECEWÖU Cable gently without sharp pulling, twisting or squeezing. Follow the minimum bending radius to avoid insulation cracks.

But, for submersible and trailing use, fix cable clamps properly to reduce tensile and friction stress. Make firm and waterproof terminal connections. Do not apply power until full installation is completed.

Lastly, during NTSCGECEWOU Cable operation, prevent contact with sharp edges, high temperature and corrosive substances. Regular routine checks are recommended to ensure long-term safe service.
