600V CUR-2PNCT-3PNCT CUR-2PNCT-3PNCT-SB Cable for port crane festoon
- CUR PNCT Cable for Cable Carrier / Festoon Trolley System, specially optimized for horizontal reciprocating festoon running, anti-sag & anti-torsion design
- CUR 2PNCT SB Cable: Class 2 EPR insulated chloroprene rubber cabtyre flexible cable, standard grade for light & medium-duty festoon
- CUR 3PNCT SB Cable: Class 3 reinforced EPR insulated chloroprene rubber cabtyre cable, built-in canvas reinforcement layer for heavy-duty, high tension festoon
- Rated Voltage: 600V AC, Test Voltage: 3000V/1min
- Standard: JIS C 3327 Japanese rubber flexible cable standard

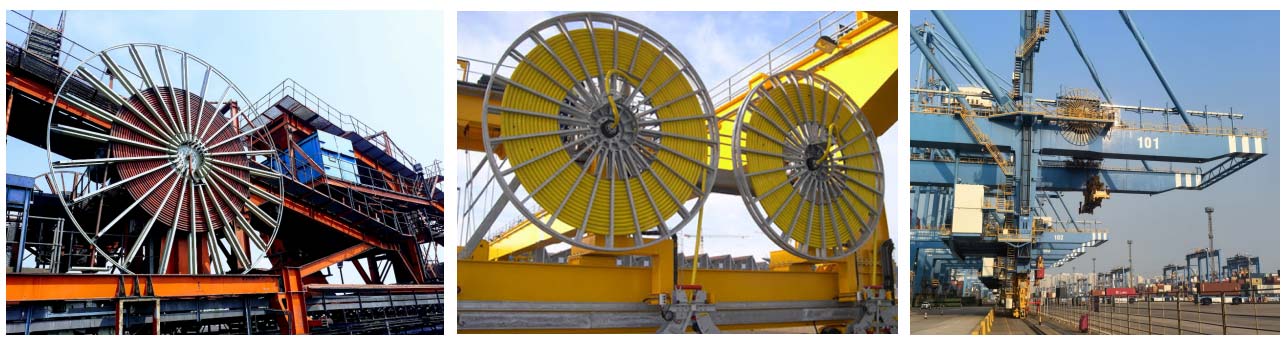

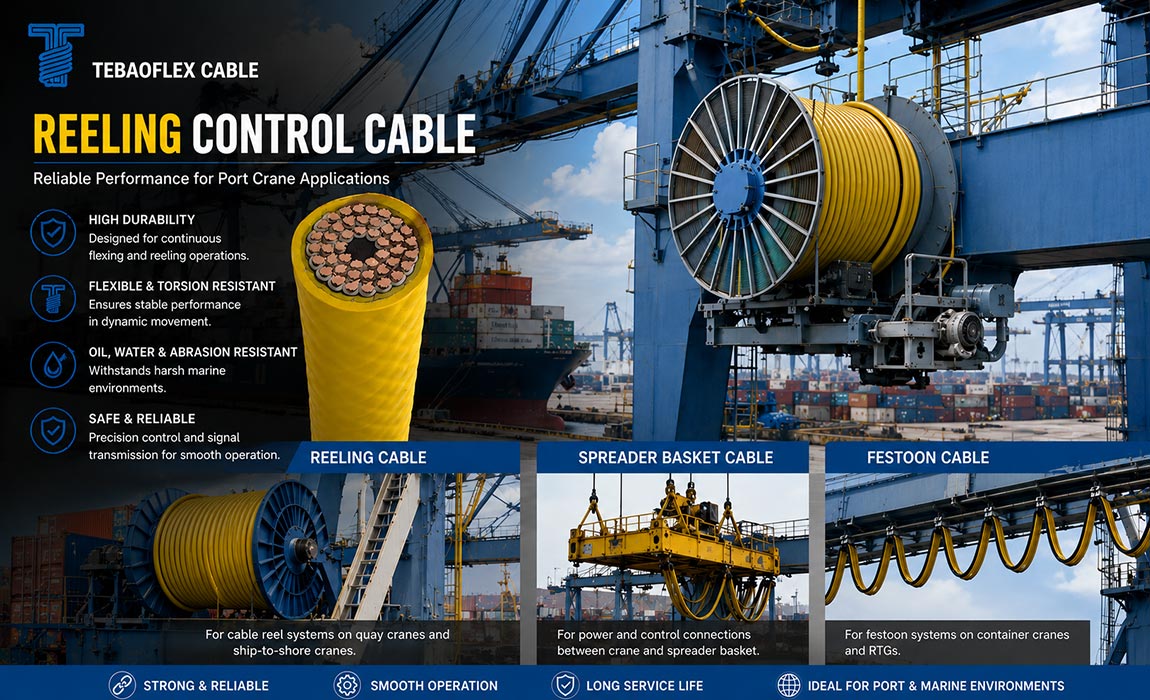

Application of CUR-2PNCT-SB and CUR-3PNCT-SB Festoon Cable
Firstly CUR-2PNCT-SB Cable: Class 2 EPR insulated chloroprene rubber cabtyre flexible cable, standard grade for light & medium-duty festoon,Warehouse overhead traveling cranes, light gantry cranes, Workshop mobile hoists, small lifting trolleys, stage mobile equipment, Indoor factory festoon power & control wiring, low reciprocating frequency.
Secondly, CUR-3PNCT-SB: Class 3 reinforced EPR insulated chloroprene rubber cabtyre cable, built-in canvas reinforcement layer for heavy-duty, high tension festoon, Port RTG/RMG container cranes, bucket wheel stacker-reclaimers, Equipment with long travel distance, high reciprocating frequency, heavy cable self-weight.
Lastly, Both Cur-2PNCT & CUR 3PNCT Cable’s conductor is Class 5 ultra-fine tinned annealed soft copper strands, high flexibility for repeated bending; optional extra aramid tensile yarn for long-span festoon, Insulation is Excellent low-temperature resistance, ozone-proof, high dielectric strength, color-coded cores for circuit identification, Our sheath is tear resistance, oil & UV resistant, anti-cracking under long-term friction with festoon trolley rollers.

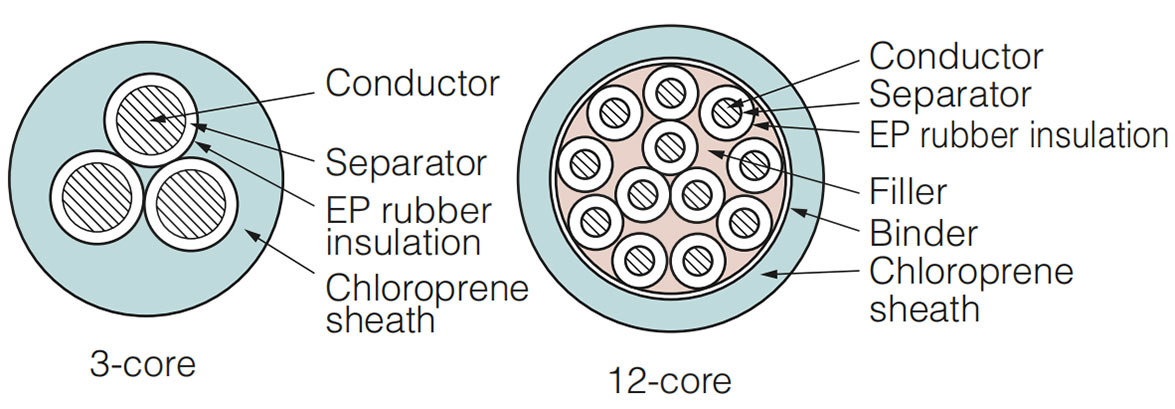

600V 2PNCT and CUR-2PNCT-SB Festoon Flexible Cable Construction
Voltage: 600V
Conductor: Class 5 ultra-fine tinned annealed soft copper, JIS C 3327
Insulation: EPR compound rubber, low-temperature resistance, ozone-proof
Filler and Binder: Jute/rubber elastic fillers fill gaps between cores; non-woven binding tape locks core bundle to avoid core dislocation during back-and-forth sliding
Outer sheath: Chloroprene rubber,Black CR rubber, high abrasion, tear resistance.
Cores: 2~24 cores
Rated Temperature: 80 degrees C
Cores: 2~24 cores
Application:Festoon System and Lift System, Please use CAR-2PNCT-SX for cable chain system (10 cores or more) and carrier drum system.
Test Voltage: 3000V /1 minute
Feature: High flexibilitand impact resistance
Core identification: Color coding /tracer method.

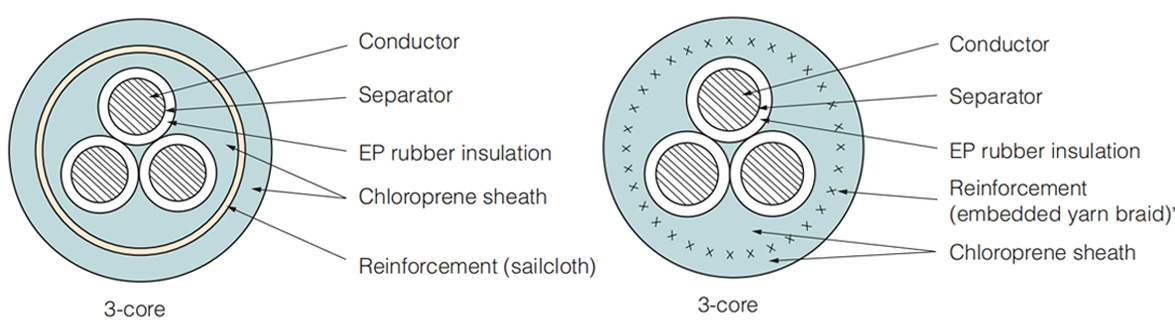

600V 3PNCT and CUR-3PNCT-SB Festoon Flexible Cable Construction
Voltage: 600V
Conductor: Class 5 ultra-fine tinned annealed soft copper, JIS C 3327
Insulation: EPR compound rubber, low-temperature resistance, ozone-proof
Filler and Binder: non-woven binding tape locks core bundle to avoid core dislocation during back-and-forth sliding
Reinforce Layer: built-in canvas reinforcement layer for heavy-duty, high tension festoon
Outer sheath: Chloroprene rubber,Black CR rubber, high abrasion, tear resistance.
Cores: 2~24 cores
Rated Temperature: 80 degrees C
Cores: 2~24 cores
Application:Festoon System and Lift System, Please use CAR-3PNCT-SX for cable chain system (10 cores or more) and carrier drum system.
Test Voltage: 3000V /1 minute
Feature: High flexibility and impact resistance
Core identification: Color coding /tracer method.
2PNCT, CUR-2PNCT-3PNCT Festoon Cable Technical
| Item | CUR-2PNCT Festoon Cable | CUR-3PNCT Festoon Cable |
|---|---|---|
| Reinforcement Layer | No built-in canvas cloth reinforcement between core bundle and outer sheath | Extra canvas reinforcing layer wrapped under outer sheath |
| Mechanical Strength | Medium tensile & impact resistance | Heavy-duty reinforced, higher anti-tear, anti-lateral pressure |
| Travel Distance Limit | ≤60m festoon travel | Unlimited long-span heavy-load festoon |
| Reciprocating Frequency | Medium daily cycles | High-speed frequent reciprocation |
| Anti-Split Performance | General | Excellent, prevent sheath cracking under heavy self-weight |
- Operating temperature: -40℃ ~ +80℃ continuous
- Standard: JIS C 3327 Japanese rubber flexible cable standard
- Rated Voltage: 600V AC, Test Voltage: 3000V/1mi
- Severe outdoor environment: UV, oil splash, snow, heavy friction.
- Resist abrasion, ozone, mineral oil, weather aging, slight flame retardant
Parameter Data of 600V 2PNCT, CUR-2PNCT-3PNCT Festoon Cable
Note： Step 1 Festoon Trolley & Track Preparation Step 4 Two End Termination Fixing Step3 Anti-Torsion & Protection Setup
No. of Cores
Conductor
Construction (No./mm)
Outer Diameter (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Approx. Overall Diameter (mm)
Approx. Mass (kg/km)
Max. Conductor Resistance
Min. Insulation Resistance (20 degrees C)
Min. Permissible Bending Radius (mm)
Size (mm2)
(20 degrees C) (Ω/km)
(MΩ･km)
3
0.75
30/0.18
1.1
0.8
1.7
9.3
115
26.6
500
60
1.25
50/0.18
1.5
0.8
1.8
10.5
145
16
500
70
2
37/0.26
1.8
0.8
1.8
11
180
10.2
500
70
3.5
45/0.32
2.5
0.8
1.9
13
260
5.54
400
80
5.5
70/0.32
3.1
1
2
15.5
380
3.56
400
100
8
50/0.45
3.7
1
2.1
17
480
2.52
400
110
14
88/0.45
4.9
1
2.3
20
735
1.43
300
120
22
7/20/0.45
7
1.2
2.7
26
1,180
0.919
300
160
30
7/27/0.45
8.1
1.2
2.8
28
1,480
0.681
300
170
38
7/34/0.45
9.1
1.2
3
31
1810
0.541
200
190
50
19/16/0.45
10.4
1.5
3.3
36
2310
0.423
200
220
60
19/20/0.45
11.6
1.5
3.4
38
2750
0.339
200
230
80
19/27/0.45
13.5
2
3.8
45
3790
0.25
300
270
100
19/34/0.45
15.2
2
4.1
49
4620
0.199
200
300
125
19/42/0.45
16.8
2
4.2
52
5500
0.161
200
320
150
27/34/0.45
18.7
2
4.4
55
6230
0.14
200
330
4
0.75
30/0.18
1.1
0.8
1.8
10.5
140
26.6
500
70
1.25
50/0.18
1.5
0.8
1.8
11.5
175
16
500
70
2
37/0.26
1.8
0.8
1.9
12.5
220
10.2
500
80
3.5
45/0.32
2.5
0.8
2
14
320
5.54
400
90
5.5
70/0.32
3.1
1
2.1
17
465
3.56
400
110
8
50/0.45
3.7
1
2.2
18.5
590
2.52
400
120
14
88/0.45
4.9
1
2.4
22
910
1.43
300
140
22
7/20/0.45
7
1.2
2.8
28
1,490
0.919
300
170
30
7/27/0.45
8.1
1.2
3
31
1,880
0.681
300
190
38
7/34/0.45
9.1
1.2
3.2
34
2,290
0.541
200
210
50
19/16/0.45
10.4
1.5
3.5
39
2,940
0.423
200
240
60
19/20/0.45
11.6
1.5
3.7
42
3,530
0.339
200
260
80
19/27/0.45
13.5
2
4.1
50
4,860
0.25
300
300
100
19/34/0.45
15.2
2
4.4
54
5,920
0.199
200
330
125
19/42/0.45
16.8
2
4.5
58
7,080
0.161
200
350
150
27/34/0.45
18.7
2
4.7
61
8,020
0.14
200
370
5
0.75
30/0.18
1.1
0.8
1.8
11
160
26.6
500
70
1.25
50/0.18
1.5
0.8
1.9
12.5
210
16
500
80
2
37/0.26
1.8
0.8
1.9
13
255
10.2
500
80
3.5
45/0.32
2.5
0.8
2.1
15.5
385
5.54
400
100
5.5
70/0.32
3.1
1
2.2
18.5
560
3.56
400
120
8
50/0.45
3.7
1
2.3
21
720
2.52
400
130
14
88/0.45
4.9
1
2.6
25
1,130
1.43
300
150
22
7/20/0.45
7
1.2
3
31
1,810
0.919
300
190
30
7/27/0.45
8.1
1.2
3.2
35
2,290
0.681
300
210
38
7/34/0.45
9.1
1.2
3.4
38
2,800
0.541
200
230
6
0.75
30/0.18
1.1
0.8
1.8
12
185
26.6
500
80
1.25
50/0.18
1.5
0.8
1.9
13.5
245
16
500
90
2
37/0.26
1.8
0.8
2
14.5
305
10.2
500
90
3.5
45/0.32
2.5
0.8
2.1
17
455
5.54
400
110
5.5
70/0.32
3.1
1
2.3
20
675
3.56
400
120
8
50/0.45
3.7
1
2.4
22
865
2.52
400
140
14
88/0.45
4.9
1
2.7
27
1,350
1.43
300
170
22
7/20/0.45
7
1.2
3.1
34
2,160
0.919
300
210
7
0.75
30/0.18
1.1
0.8
1.9
13
215
26.6
500
80
1.25
50/0.18
1.5
0.8
2
14.5
285
16
500
90
2
37/0.26
1.8
0.8
2.1
15.5
360
10.2
500
100
3.5
45/0.32
2.5
0.8
2.2
18
530
5.54
400
110
8
0.75
30/0.18
1.1
0.8
2
14
250
26.6
500
90
1.25
50/0.18
1.5
0.8
2
15.5
325
16
500
100
2
37/0.26
1.8
0.8
2.1
17
410
10.2
500
110
3.5
45/0.32
2.5
0.8
2.3
19.5
615
5.54
400
120
10
0.75
30/0.18
1.1
0.8
2.1
16.5
305
26.6
500
100
1.25
50/0.18
1.5
0.8
2.2
18
395
16
500
110
2
37/0.26
1.8
0.8
2.3
19.5
500
10.2
500
120
3.5
45/0.32
2.5
0.8
2.5
23
745
5.54
400
140
12
0.75
30/0.18
1.1
0.8
2.1
17
335
26.6
500
110
1.25
50/0.18
1.5
0.8
2.2
18.5
440
16
500
120
2
37/0.26
1.8
0.8
2.3
20
560
10.2
500
120
3.5
45/0.32
2.5
0.8
2.5
24
845
5.54
400
150
16
0.75
30/0.18
1.1
0.8
2.2
18.5
415
26.6
500
120
1.25
50/0.18
1.5
0.8
2.3
21
550
16
500
130
2
37/0.26
1.8
0.8
2.4
22
705
10.2
500
140
3.5
45/0.32
2.5
0.8
2.7
26
1,080
5.54
400
160
20
0.75
30/0.18
1.1
0.8
2.3
21
505
26.6
500
130
1.25
50/0.18
1.5
0.8
2.5
23
680
16
500
140
2
37/0.26
1.8
0.8
2.6
25
870
10.2
500
150
3.5
45/0.32
2.5
0.8
2.8
29
1,340
5.54
400
180
24
0.75
30/0.18
1.1
0.8
2.4
22
600
26.6
500
140
1.25
50/0.18
1.5
0.8
2.6
25
810
16
500
150
2
37/0.26
1.8
0.8
2.7
27
1,050
10.2
500
170
3.5
45/0.32
2.5
0.8
3
32
1,610
5.54
400
200
No. of x Cores
Conductor
Insulation Thickness (mm)
Sheath Thickness (mm)
Approx. Overall Diameter (mm)
Approx. Mass (kg/km)
Size (mm2)
Construction (No./mm)
Outer Diameter (mm)
cur-pnct 12 cores
0.75
30/0.18
1.1
0.8
2.1
17
335
1.25
50/0.18
1.5
0.8
2.2
18.5
440
2
37/0.26
1.8
0.8
2.3
20
560
3.5
45/0.32
2.5
0.8
2.5
24
845
cur-pnct 16 cores
0.75
30/0.18
1.1
0.8
2.2
18.5
415
1.25
50/0.18
1.5
0.8
2.3
21
550
2
37/0.26
1.8
0.8
2.4
22
705
3.5
45/0.32
2.5
0.8
2.7
26
1080
cur-pnct 20 cores
1.25
50/0.18
1.5
0.8
2.5
23
680
2
37/0.26
1.8
0.8
2.6
25
870
cur-pnct 24cores
1.25
50/0.18
1.5
0.8
2.6
25
810
2
37/0.26
1.8
0.8
2.7
27
1050
3.5
45/0.32
2.5
0.8
3
32
1610
No. of Cores
Conductor
Insulation Thickness (mm)
Thickness of Reinforcement (mm)
Sheath Thickness (mm)
Approx. Overall Diameter (mm)
Approx. Mass (kg/km)
Size (mm2)
Construction (No./mm)
Outer Diameter (mm)
5
2
37/0.26
1.8
1.2
0.5
3
18.5
420
3.5
45/0.32
2.5
1.2
0.5
3.1
21
565
5.5
70/0.32
3.1
1.2
0.5
3.2
23
720
10
2
37/0.26
1.8
1.2
1
3.4
27
790
3.5
45/0.32
2.5
1.2
1
3.6
30
1080
12
2
37/0.26
1.8
1.2
1
3.4
28
870
3.5
45/0.32
2.5
1.2
1
3.7
32
1230
16
2
37/0.26
1.8
1.2
1
3.6
30
1080
3.5
45/0.32
2.5
1.2
1
3.8
34
1520
20
2
37/0.26
1.8
1.2
1
3.8
34
1330
3.5
45/0.32
2.5
1.2
1
4
38
1850
24
2
37/0.26
1.8
1.2
1
3.9
36
1560
3.5
45/0.32
2.5
1.2
1
4.2
41
2200
30
2
37/0.26
1.8
1.2
1
4.1
39
1850
3.5
45/0.32
2.5
1.2
1
4.4
44
2620
The CUR-2PNCT-SB, CUR-3PNCT Rubber Cable Install
1. CUR-3PNCT is mandatory for festoon travel over 60m or daily reciprocating cycles over 500 times

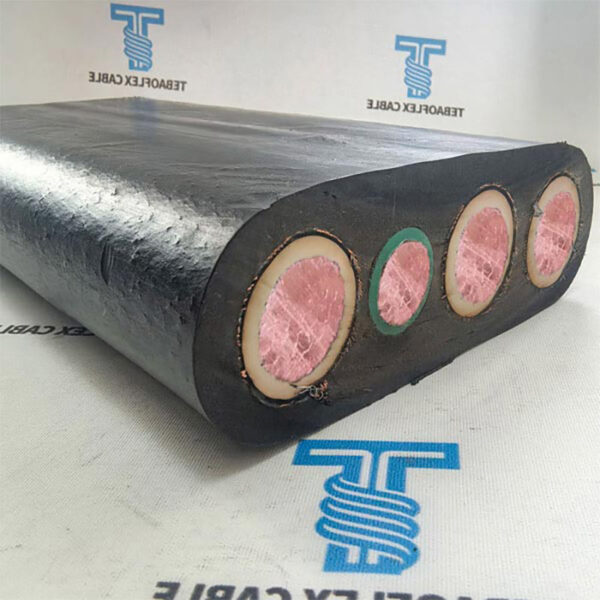

2. Flat PNCT-F variant is available for compact multi-cable festoon bundles to save installation space
3. Do not overload cable sag; excessive self-weight will cause sheath split, only reinforced 3PNCT can bear heavy load
1. Install horizontal festoon I-beam track, ensure track level without tilt to avoid cable side extrusion
2. Match trolley roller size: roller diameter ≥10× cable outer diameter, rubber-coated rollers to reduce sheath abrasion
3. Set trolley spacing: max 2.0–2.5m for CUR-2PNCT; max 1.5–2.0m for heavy CUR-3PNCT to control sag.
Fixed end (crane main control cabinet): Use Kellem tensile grip to bear cable self-weight, avoid tensile force transferred to terminal lugs
Moving end (trolley terminal box): Reserve 1–2m loose cable allowance for full travel stroke, prevent tension pulling terminals loose
Strip insulation carefully without damaging copper strands; use tin-coated compression lugs, seal joints with heat-shrink sleeves for water & dust protectio
1. Install swivel anti-twist joints at both cable ends to eliminate torsion during reciprocating travel
2. Add rubber guard plates at all track turning points, beam sharp edges to block sheath scratch
3. For outdoor application, install rain cover above festoon track to reduce long-term UV & rain erosion
Related products
-
Trommelflex PUR-C-HF-J EMC Festoon Cable 12×2 5 18×2 5 4×16
Description and application Tebaoflex Trommelflex PUR-C-HF-J EMC Festoon Screen Cable is specifically designed for continuous movement applications requiring reliable power transmission, signal integrity, and outstanding mechanical durability, Extra flexible cable with excellent mechanical strength, with copper braided shield, with polyurethane…
-
600V 2PNCT-SB-3C-T-B PNCT Cable for Crane Reeling & Festoon
The PNCT Cable (is also called 3pnct or 2pnct Cable) is a type low voltage rubber cable, mainly used for reeling, festoon, basket operation of port crane and handling mobile equipment, the cable types including: 600v 2pnct sb, 600v 2pnct-b,…
-
Olflex SMK NSHTOU J Rubber Crane Reeling Cable
NSHTÖU cable portfolio is defined by the cable reeling speeds, determining which specification is most appropriate for your high-speed crane reeling operations. NSHTÖU Maximum working speed 120m/min (N)SHTÖU PUR Maximum working speed 180m/min (N)SHTÖU-K Festoon: up to 240m/min / Reeling:…
-
Flat NGFLCGÖU-J, NGFLCGOU-J Trailing Festoon Flexible Cable for Cranes, Hoists
Electrical parameters, temperature range and bending radius are the same as NGFLGÖU. The braided shield shall be grounded to block electromagnetic interference. Application: Frequency conversion drives, servo systems and combined power & signal circuits in ports, mines, steel mills and…
