UL 1199 PTFE Wire 200°C 600V, Silver-Plated Copper

UL 1199 wire is a 600 V, 200 °C single-conductor wire with extruded PTFE insulation over stranded silver-plated copper, for internal wiring of electronic and electrical equipment that runs hot or is exposed to oil, gasoline and chemicals.

  • Voltage rating600 V
  • Temperature range-60 °C to +200 °C
  • ConductorSilver-plated copper, stranded
  • InsulationExtruded PTFE
  • Sizes28 to 8 AWG
  • Overall diameter1.47 mm to 5.85 mm
  • Bending radius6 × outer diameter
  • Flame testsVW-1 and FT1

Download UL 1199 datasheet (PDF)Full specifications

Request a QuoteSend EmailWhatsApp
Category:
Get Quote
Product overview

UL 1199 is the UL wire style for 600 V, 200 °C single-conductor wire with PTFE insulation. TEBAOFLEX makes it with an extruded PTFE wall over stranded silver-plated copper from 28 AWG to 8 AWG, with overall diameters from 1.47 mm at 28 AWG to 5.85 mm at 8 AWG.

The 200 °C rating gives headroom where a wire runs beside heaters, lamps, power resistors or transformer windings, or inside an enclosure that heats up in service. The PTFE wall also resists chemicals, oil and gasoline, as well as ozone, UV and humidity, so one wire type can serve both the hot and the contaminated parts of a machine.

Browse the UL style wire category for the other PTFE, FEP, silicone and XLPE styles or download the UL 1199 datasheet (PDF).

Request a technical quotationView specifications

Application & Features

Selection overview

UL 1199 is used for internal wiring where temperature is the limiting factor: heating and drying equipment, lighting fixtures, industrial machines, control cabinets that run warm, and electronic assemblies with hot components. Where a design uses a 150 °C wire and the measured conductor temperature leaves too little margin, UL 1199 keeps the 600 V rating and raises the limit to 200 °C.

Within the TEBAOFLEX PTFE range, compare UL 1198 for a 600 V PTFE wire over silver-plated copper rated 150 °C, UL 1180 for a 300 V, 200 °C PTFE wire, and UL 1570 for 600 V at 250 °C with mineral-filled PTFE over nickel-plated copper.

  • 200 °C PTFE insulationAn extruded PTFE wall rated from -60 °C to +200 °C for wiring close to hot components.
  • Chemical and fuel resistanceExcellent resistance to chemicals, oil and gasoline.
  • Silver-plated copperSilver plating protects the copper strands at the 200 °C rating.
  • 600 V ratingOne wire for control and power circuits, with VW-1 and FT1 flame-test designations agreed per order.

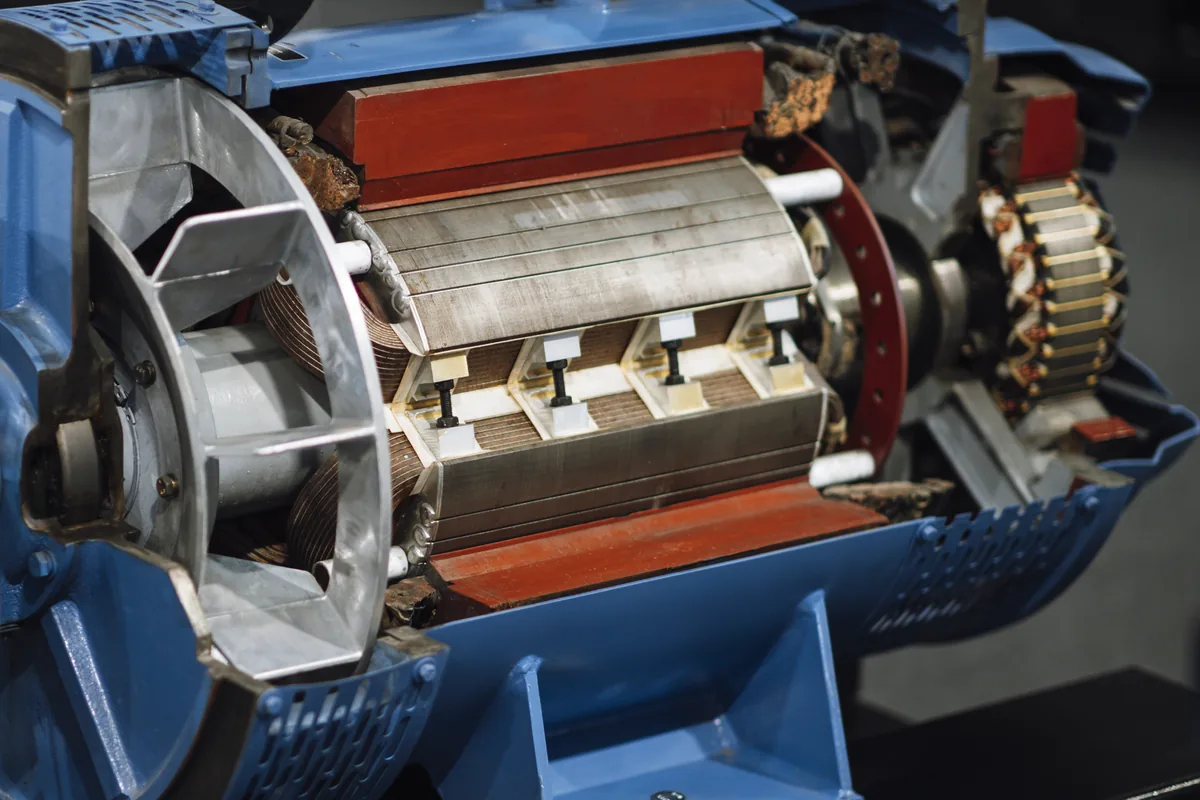

Cutaway industrial electric motor showing the stator windings and rotor, the kind of electrical machine whose internal leads use 200 °C PTFE wire such as UL 1199
Motors and generators route their internal leads through hot windings and housings, where 200 °C PTFE wire is used for the connections (cropped). Photo: Shixart1985, CC BY 2.0, via Wikimedia Commons.

Specifications

Technical data

Nominal values for UL 1199 constructions. The final construction is confirmed on the TEBAOFLEX datasheet issued with your quotation.

Electrical, thermal and material data

Parameter Value
Voltage rating 600 V
Temperature rating 200 °C
Temperature range -60 °C to +200 °C
Conductor Silver-plated copper, stranded: 7 or 19 strands; 10 AWG: 37 strands; 8 AWG: 133 strands
Insulation Extruded PTFE
Construction Non-flammable stranded high-temperature wire
Chemical resistance Excellent resistance to chemicals, oil and gasoline
Environmental resistance Excellent ozone, UV, humidity and thermal fluctuation resistance
Minimum bending radius 6 × outer diameter
Wire style UL AWM style 1199, 200 °C, 600 V; CSA AWM I A/B, 200 °C, 600 V
Flame-test designations VW-1 (UL style); FT1 (CSA)
Application Internal wiring of electronic and electrical equipment

Dimensions and weights

AWG / stranding Overall diameter mm Copper kg/km Weight kg/km Voltage
28/7 1.47 0.90 1.70 600 V
26/7 1.60 1.40 2.30 600 V
26/19 1.60 1.40 2.30 600 V
24/7 1.73 2.20 3.20 600 V
24/19 1.73 2.20 3.20 600 V
22/7 1.88 3.40 4.40 600 V
22/19 1.88 3.40 4.40 600 V
20/7 2.11 6.00 7.00 600 V
20/19 2.11 6.00 7.00 600 V
18/19 2.36 8.30 10.60 600 V
16/19 2.59 13.00 17.40 600 V
14/19 2.92 21.00 27.00 600 V
12/19 3.40 33.00 42.00 600 V
10/37 4.04 51.00 66.00 600 V
8/133 5.85 83.00 102.00 600 V

Selection note: Before ordering, ask our engineers to confirm the conductor resistance, the current rating at your ambient temperature, the insulation colours, the flame-test marking and the put-up lengths you need.

Standards & References

Applicable standards and compliance

  • Wire styleUL 1199 single-conductor wire, 600 V and 200 °C, with a CSA AWM I A/B 600 V, 200 °C marking option.
  • Flame testsVW-1 under the UL style and FT1 under the CSA class.
  • Temperature scopeRated from -60 °C to +200 °C, with a minimum bending radius of 6 × the outer diameter.
  • ApprovalsUL style, CSA and flame-test markings for your order are confirmed and quoted per order.

Construction

Material and build-up

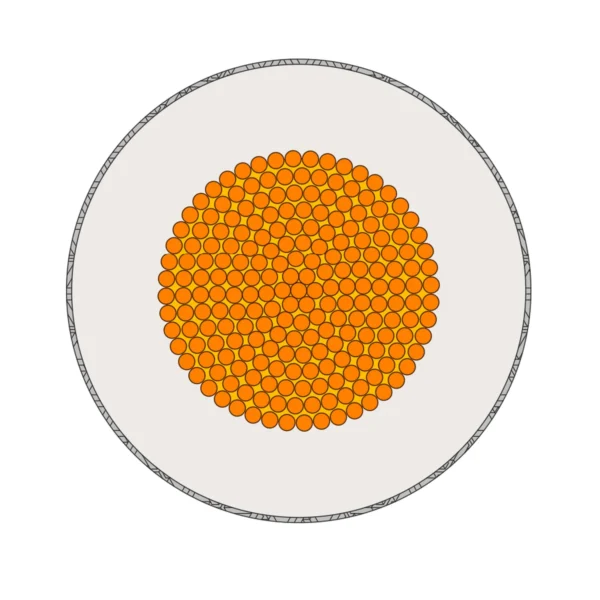

UL 1199 is a single-conductor wire with two layers: a stranded silver-plated copper conductor and one extruded PTFE wall.

  • Conductor: stranded copper: 7 strands at 28 AWG, 7 or 19 strands from 26 AWG to 20 AWG, 19 strands from 18 AWG to 12 AWG, 37 strands at 10 AWG and 133 strands at 8 AWG.
  • Plating: silver plating keeps the copper strands protected at the 200 °C rating.
  • Insulation: extruded PTFE, a non-flammable fluoropolymer that resists chemicals, oil, gasoline, ozone, UV and humidity.
  • Identification: insulation colour and UL or CSA surface marking are agreed with your order.

FAQ

Selection questions

What is UL 1199 wire?

UL 1199 is a UL wire style for single-conductor wire rated 600 V and 200 °C. The TEBAOFLEX version uses extruded PTFE insulation over stranded silver-plated copper, from 28 AWG to 8 AWG, for internal wiring of equipment that runs hot or is exposed to oil, gasoline and chemicals.

Should I choose UL 1199 or UL 1198?

Both are 600 V PTFE wires over silver-plated copper. UL 1198 is rated 150 °C and UL 1199 is rated 200 °C. Choose UL 1199 when the conductor may run above 150 °C or when you want margin in a hot enclosure; for 250 °C service, see UL 1570 with mineral-filled PTFE over nickel-plated copper.

Which sizes are available?

28 AWG to 8 AWG in 15 constructions, from 28/7 with a 1.47 mm overall diameter to 8/133 with 5.85 mm. The size table lists the copper weight and total weight of each construction in kg/km.

What should I send for a quotation?

Send the UL style, AWG size and stranding, insulation colour, put-up length, quantity and any UL, CSA or flame-test marking you need. Our engineers confirm the construction on the datasheet issued with your quotation.
