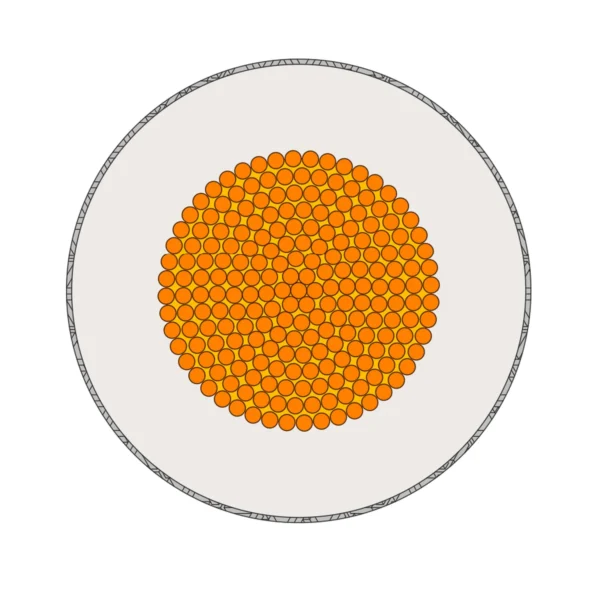

UL 1213 cross-section
  1. UL 1213 PTFE Hook-Up Wire 105°C 600V, Silver-Plated Copper
  2. UL 1213 cross-section

UL 1213 PTFE Hook-Up Wire 105°C 600V, Silver-Plated Copper

UL 1213 wire is a 600 V PTFE-insulated hook-up wire with a silver-plated copper conductor, rated 105 °C as a UL wire style and 200 °C under MIL-W-16878/4, for internal wiring of electronic and electrical equipment.

  • Voltage rating600 V
  • UL style temperature105 °C
  • MIL-W-16878/4 rating200 °C
  • ConductorSilver-plated copper
  • ConstructionSolid or stranded
  • InsulationPTFE, 0.010 in to 0.015 in
  • Sizes32 to 10 AWG
  • Nominal O.D.0.029 in to 0.131 in

Download UL 1213 datasheet (PDF)Full specifications

Request a QuoteSend EmailWhatsApp
Category:
Get Quote
Product overview

UL 1213 is the UL wire style for 600 V, 105 °C PTFE hook-up wire. TEBAOFLEX makes it with a PTFE wall of 0.010 in to 0.015 in over annealed silver-plated copper, solid or stranded, from 32 AWG to 12 AWG under the UL style, plus a 10 AWG construction supplied to the MIL-W-16878/4 rating only.

The thin wall keeps the wire small: a 22 AWG 19 × 34 construction has a nominal outside diameter of 0.050 in, and 32 AWG only 0.029 in. Choose UL 1213 for dense point-to-point wiring and harnesses inside electronic and electrical equipment, where space and weight matter. The UL style rating is 105 °C; where a design works to MIL-W-16878/4, the same PTFE construction is rated 200 °C.

Browse the UL style wire category for the other PTFE, FEP, silicone and XLPE styles or download the UL 1213 datasheet (PDF).

Request a technical quotationView specifications

Application & Features

Selection overview

UL 1213 is used for internal and point-to-point wiring of electronic and electrical equipment: control panels, instruments, power supplies, communication and test equipment, where many small conductors must fit through tight wire ducts and connectors. Solid conductors suit fixed point-to-point connections; 7- and 19-strand conductors suit wiring that is bent during assembly or sees vibration in service.

Within the TEBAOFLEX range, compare UL 1212 for a 150 V PTFE wire rated 80 °C, UL 1199 for 600 V PTFE over silver-plated copper rated 200 °C as a UL style, and UL 3287 for a 600 V, 105 °C wire with XLPE insulation.

  • Thin PTFE wall0.010 in for 16 AWG and smaller, for compact harnesses and dense wire ducts.
  • Two temperature ratings105 °C as UL 1213 and 200 °C under MIL-W-16878/4 for the same construction.
  • Solid or strandedSolid 1 × n conductors from 32 AWG to 20 AWG, and 7-, 19- or 37-strand constructions.
  • Colour codingStandard colour codes and custom colours for traceable wiring.

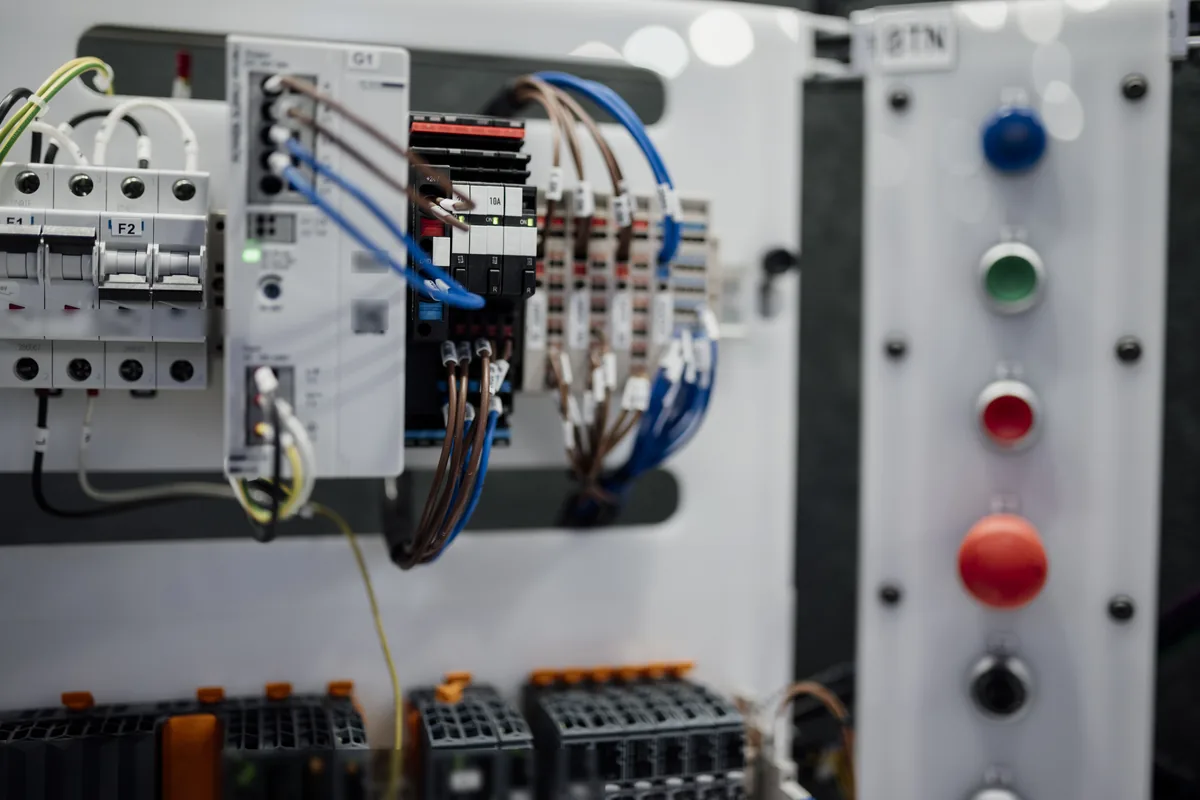

Close-up of a machine control panel with circuit breakers, PLC modules and terminal blocks connected by labelled hook-up wires, next to a column of push buttons, the kind of internal wiring done with UL 1213 PTFE hook-up wire
Inside a machine control panel, many small hook-up wires run between breakers, PLC modules and terminal blocks; a thin-wall PTFE wire such as UL 1213 keeps these bundles compact (logos and labels blurred). Photo: Shixart1985, CC BY 2.0, via Wikimedia Commons.

Specifications

Technical data

Nominal values for UL 1213 constructions; dimensions in inches. The final construction is confirmed on the TEBAOFLEX datasheet issued with your quotation.

Electrical, thermal and material data

Parameter Value
Voltage rating 600 V
Temperature rating UL 1213: 105 °C
Military temperature rating MIL-W-16878/4: 200 °C
Conductor Stranded annealed silver-plated copper
Construction Solid or stranded conductor options
Insulation PTFE
Identification Available in standard colour codes and custom colours
Wire style UL 1213
Flame test UL VW flame test
10 AWG Supplied to the MIL-W-16878/4 rating only; not part of the UL 1213 wire style
Application Internal wiring of electronic and electrical equipment

Dimensions and ratings (inches)

AWG Construction Insulation in Nominal O.D. in Temperature Voltage
10 37 x 26 0.015 0.131 200 °C 600 V
12 19 x 25 0.015 0.115 105 °C 600 V
14 19 x 27 0.013 0.095 105 °C 600 V
16 19 x 29 0.010 0.080 105 °C 600 V
18 7 x 26 0.010 0.069 105 °C 600 V
18 19 x 30 0.010 0.069 105 °C 600 V
20 1 x 20 0.010 0.052 105 °C 600 V
20 7 x 28 0.010 0.058 105 °C 600 V
20 19 x 32 0.010 0.058 105 °C 600 V
22 1 x 22 0.010 0.045 105 °C 600 V
22 7 x 30 0.010 0.050 105 °C 600 V
22 19 x 34 0.010 0.050 105 °C 600 V
24 7 x 32 0.010 0.044 105 °C 600 V
24 19 x 36 0.010 0.044 105 °C 600 V
24 1 x 24 0.010 0.040 105 °C 600 V
26 7 x 34 0.010 0.039 105 °C 600 V
26 19 x 38 0.010 0.039 105 °C 600 V
26 1 x 26 0.010 0.036 105 °C 600 V
28 1 x 28 0.010 0.033 105 °C 600 V
28 19 x 40 0.010 0.035 105 °C 600 V
28 7 x 36 0.010 0.035 105 °C 600 V
30 7 x 38 0.010 0.032 105 °C 600 V
30 1 x 30 0.010 0.030 105 °C 600 V
32 1 x 32 0.010 0.029 105 °C 600 V
32 7 x 40 0.010 0.029 105 °C 600 V

Selection note: The 10 AWG construction carries the 200 °C MIL-W-16878/4 rating only. Before ordering, ask our engineers to confirm the conductor resistance, the current rating for your installation, the minimum bending radius, the flame-test marking and the put-up lengths you need.

Standards & References

Applicable standards and compliance

  • Wire styleUL 1213 PTFE hook-up wire, 600 V and 105 °C, from 32 AWG to 12 AWG.
  • Military ratingMIL-W-16878/4, 200 °C and 600 V; 10 AWG is supplied to this rating only.
  • Flame testUL VW flame test.
  • ApprovalsUL style, CSA and flame-test markings for your order are confirmed and quoted per order.

Construction

Material and build-up

UL 1213 is a single-conductor hook-up wire with two layers: a solid or stranded silver-plated copper conductor and one PTFE wall.

  • Conductor: annealed silver-plated copper, either solid (1 × 20 to 1 × 32) or stranded in 7 or 19 strands, with 37 strands at 10 AWG.
  • Insulation: PTFE with a nominal wall of 0.010 in from 32 AWG to 16 AWG, 0.013 in at 14 AWG and 0.015 in at 12 AWG and 10 AWG.
  • Identification: insulation in standard colour codes or custom colours, for circuit tracing in dense harnesses.
  • Ratings by size: 32 AWG to 12 AWG are rated 105 °C as UL 1213; 10 AWG is rated 200 °C under MIL-W-16878/4 only.

FAQ

Selection questions

What is UL 1213 wire?

UL 1213 is a UL wire style for PTFE hook-up wire rated 600 V and 105 °C. The TEBAOFLEX version uses a thin PTFE wall over solid or stranded silver-plated copper, from 32 AWG to 12 AWG, for internal wiring of electronic and electrical equipment.

Why is the wire rated both 105 °C and 200 °C?

The two figures apply to the same PTFE construction under two different specifications: 105 °C is the temperature rating of the UL 1213 wire style, and 200 °C is the rating under MIL-W-16878/4. Design to 105 °C when the equipment uses the UL style, and tell us if your design works to the MIL-W-16878/4 rating.

Is 10 AWG available as UL 1213?

No. The 10 AWG 37 × 26 construction is supplied to the MIL-W-16878/4 rating of 200 °C and 600 V only and is outside the UL 1213 wire style. If you need a UL-style marking at that size, ask our engineers for an alternative.

How does UL 1213 compare with UL 1212 and UL 3287?

UL 1212 is a PTFE wire rated 150 V and 80 °C for low-voltage circuits. UL 3287 has the same 600 V, 105 °C rating as UL 1213 but uses XLPE insulation. UL 1213 combines the 600 V rating with a thin PTFE wall and silver-plated copper.

What should I send for a quotation?

Send the UL style or MIL-W-16878/4 requirement, AWG size, solid or stranded construction, insulation colour, put-up length and quantity. Our engineers confirm the construction on the datasheet issued with your quotation.
