Submersible Pump Cable
Product Categories
Heavy-duty rubber cables for mining, port cranes, submersible pumps, EV charging, elevators and marine duty. Pick a family to filter the range.
Submersible Pump Cable
TEBAOFLEX submersible pump cables connect pumps in wells, boreholes, tanks and flooded pits to the surface supply and are built to work permanently under water. The range covers the flat S1BNH2-F halogen-free rubber cable for fresh and salt water to 300 m, Drincable 600 and 800 for potable water to 600 m or 800 m, and the ELCOSUB (N)TMH3S P2 with a TPU sheath for groundwater and seawater to 2000 m. Ratings are 0.6/1 kV and 0.6/2 kV, all with Class 5 tinned copper conductors.
Showing all 3 results
-

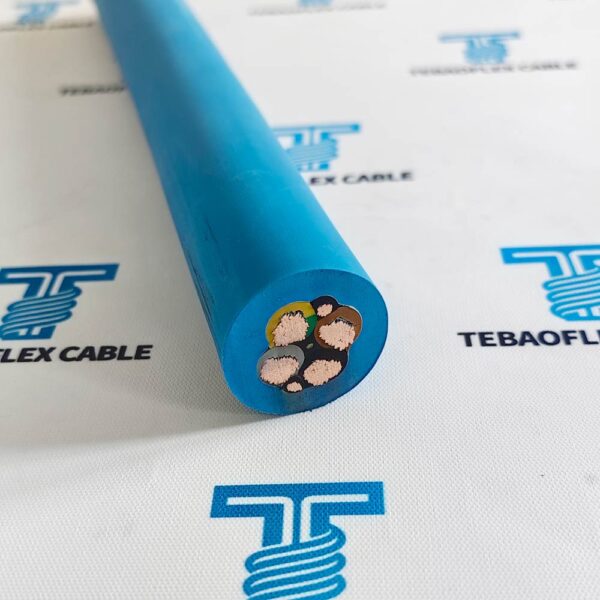

Drinking Water Drincable 600 and 800 Cable for 600m 800m Depth
-

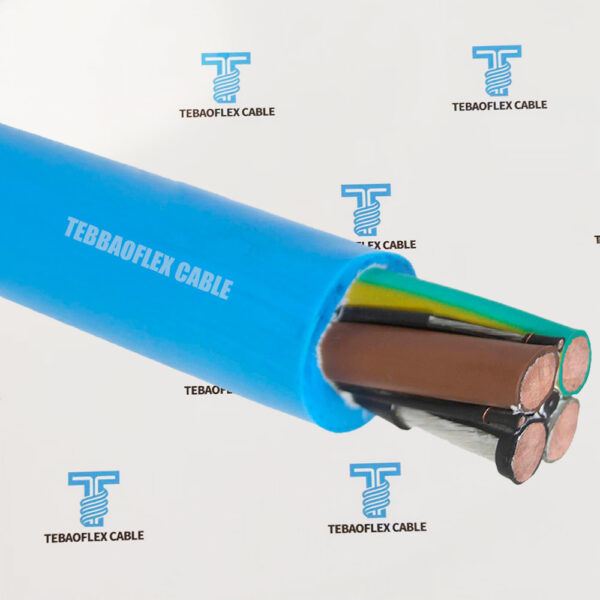

ELCOSUB (N)TMH3S P2 0.6/2kV Submersible Pump Cable with TPU Sheath
-
S1BNH2-F Flat Submersible Pump Rubber Cable 0.6/1kV, 3G4 to 3G185
Selection Guide
Submersible Pump Cable Selection Guide
Model comparison, operating conditions and RFQ checklist.
A submersible pump cable is a flexible power cable built to work permanently under water. It connects a submersible pump in a well, borehole, tank or flooded pit to the surface supply. It combines finely stranded tinned copper conductors, rubber insulation and a water-resistant outer sheath, and is selected by water type, immersion depth, rated voltage and flat or round shape.
Which submersible pump cable fits your water, depth and voltage?
- Drinking water: the drinking water cable is stated for permanent immersion in potable water to 600 m or 800 m.
- Wells and sewage: the flat S1BNH2-F is a halogen-free, low-smoke rubber cable for fresh and salt water to 300 m.
- Dewatering, deep or saline water: the (N)TMH3S P2 has a polyurethane sheath and is stated for groundwater and seawater to 2000 m, but not for explosion-hazard areas or water with more than 0.5 mg/l of chlorine.
- Voltage: 0.6/1 kV for the first two families, 0.6/2 kV for the (N)TMH3S P2.
- Flat or round: flat cable needs less space beside the riser pipe; round cable seals more easily in a gland.
Model selection matrix
| Model | Rated voltage | Construction / key feature | Typical application | Reference standard |
|---|---|---|---|---|
| 0.6/1kV Flat S1BNH2-F Submersible Pump Rubber Cable 4G16mm | 0.6/1 kV | Flat; class 5 tinned copper, EPR insulation, halogen-free low-smoke EM2 rubber sheath; 3G4 to 3G185 listed | Well, sewage and mine dewatering pumps; depth to 300 m | EN 50525-2-21, HD 308, EN 50363-2-1 |
| Drinking water submersible cable for 600 m and 800 m depth | 0.6/1 kV (450/750 V also listed) | Class 5 tinned copper, EPR insulation, light blue cross-linked sheath; round, 600 m type also flat | Drinking water pumps, water treatment, food processing; water up to +80 °C | EN 50525-2-21 (AD8), BS 6920 |
| (N)TMH3S P2 0.6/2 kV submersible pump cable | 0.6/2 kV | Class 5 tinned copper, 3GI3 rubber insulation, blue TPU sheath; three power cores, grounding conductor, two pilot cores | Lowering of water level, mine drainage; seawater to 2000 m; water up to 60 °C | DIN VDE 0250 part 812, EN 50525-2-21, IEC 60332-1-2 |
Which installation conditions decide the choice?
- Tensile load: where a maximum tensile load is listed, compare it with the suspended cable weight; clamp long drops to the riser pipe.
- Water chemistry: check warm, chlorinated or corrosive water against the product page limits.
- Bending radius: flat types are specified by cable height, round types by overall diameter.
- Fire behavior: surface runs through buildings or tunnels may call for a halogen-free, low-smoke sheath.
- Voltage drop: on long drops, size the cross-section for motor-start voltage drop as well as current rating.
What to send with your RFQ
- Water type, temperature and chemical content
- Installation depth and total cable length
- Motor power, supply voltage and starting method
- Cores, cross-section and pilot cores
- Flat or round
- Required standards and documents
Request current test and certification documents for the exact model at RFQ stage, including potable-water hygiene documents where applicable. More constructions are shown on the TEBAOFLEX submersible pump cables page. Send your data through the contact page.
Product Advantages
What sets TEBAOFLEX Submersible Pump Cable apart in service.
Permanent Immersion to 2000 m
Stated water depths run from 300 m for S1BNH2-F and 600 or 800 m for Drincable to 2000 m for the (N)TMH3S P2.
Drinking Water Construction
Drincable 600 and 800 have EPR insulation and a light blue cross-linked sheath, reference BS 6920 and are listed for water up to +80 °C.
Halogen-Free, Low-Smoke Sheath
S1BNH2-F has a halogen-free, low-smoke, flame-retardant EM2 rubber sheath, relevant where surface runs pass through buildings or tunnels.
Abrasion-Resistant TPU Sheath
The ELCOSUB (N)TMH3S P2 has a blue TPU sheath listed as abrasion, impact, tear and oil resistant, for groundwater and seawater service.
Flat or Round Construction
Flat cable needs less space beside the riser pipe and round cable seals more easily in a gland; S1BNH2-F is flat and Drincable 600 is also available flat.
Ratings and Pilot Cores
0.6/1 kV for S1BNH2-F and Drincable; 0.6/2 kV for the (N)TMH3S P2, which adds two insulated pilot cores to three power cores and earth.
Technical Specifications
Capabilities across the Submersible Pump Cable range; each product page lists the exact construction, rating and reference standard.
| Specification | Available options |
|---|---|
| Product types | Flat submersible pump cable (S1BNH2-F); drinking water cable (Drincable 600, Drincable 800); TPU-sheathed submersible pump cable (ELCOSUB (N)TMH3S P2) |
| Rated voltage | 0.6/1 kV (S1BNH2-F; Drincable 600 and 800, with 450/750 V also listed); 0.6/2 kV ((N)TMH3S P2) |
| Conductor | Class 5 finely stranded tinned copper |
| Cross-section | 3G4 to 3G185 listed (S1BNH2-F) |
| Insulation | EPR rubber, type 3GI3 |
| Sheath | Halogen-free, low-smoke EM2 rubber, black or blue (S1BNH2-F); light blue cross-linked compound (Drincable 600 and 800); blue TPU ((N)TMH3S P2) |
| Core assembly | Flat, unscreened (S1BNH2-F); round, with Drincable 600 also flat; three power cores, grounding conductor and two insulated pilot cores ((N)TMH3S P2) |
| Water depth and temperature | To 300 m (S1BNH2-F); to 600 m or 800 m with water up to +80 °C (Drincable 600 / 800); to 2000 m with water up to 60 °C ((N)TMH3S P2) |
| Temperature | Conductor up to 90 °C, short circuit 250 °C; minimum ambient -25 °C mobile, -40 °C static (S1BNH2-F); -25 to +90 °C (Drincable); minimum ambient -50 °C ((N)TMH3S P2) |
| Minimum bending radius | 3 × H (H ≤ 12 mm) or 4 × H (H > 12 mm) for flat cable; 3 × D fixed, 5 × D flexed for round Drincable; 4 × d fixed, 6 × d mobile, 15 × d S-shape deflection ((N)TMH3S P2) |
| Reference standards | EN 50525-2-21, HD 308, EN 50363-2-1 (S1BNH2-F); EN 50525-2-21 (AD8), BS 6920 (Drincable); DIN VDE 0250 part 812, EN 50525-2-21, IEC 60332-1-2 ((N)TMH3S P2) |
| Documents | Datasheet, test report and certification documents for the exact model on request at RFQ stage |
Application Scenarios
Where Submersible Pump Cable from TEBAOFLEX is installed.
01
Water Well Pumps
Flat S1BNH2-F for submersible pumps in water wells and drinking water supply, in fresh or salt water to 300 m, with less space needed beside the riser pipe.
02Drinking Water Pumps
Drincable 600 and 800 for submersible pumps in potable water, including depuration and chlorination systems, at depths to 600 m or 800 m.
03Sewage and Wastewater Pumps
S1BNH2-F is listed for sewage treatment and wastewater pumps; its EM2 rubber sheath is stated as resistant to ozone, UV, oil, sewage and mild chemicals.
04Dewatering and Mine Drainage
(N)TMH3S P2 for lowering of water level, mine drainage and booster plants, rated 0.6/2 kV with three power cores, earth and two pilot cores.
05Deep Groundwater and Seawater
(N)TMH3S P2 is stated for groundwater and seawater to 2000 m, indoors, outdoors and in industrial and agricultural plant, but not in explosion-hazard areas.
06Water Treatment and Food Processing
Drincable is used in water treatment and food processing, including drink and foodstuff production, aquariums, fish-ponds and swimming pool lighting.
How to Choose Submersible Pump Cable
Four decisions specify the right cable the first time; send them with your RFQ and our engineers confirm the type designation.
1
Water Type and Chemistry
Potable, fresh, salt, sewage or groundwater; check warm, chlorinated or corrosive water against the product limits, such as 0.5 mg/l chlorine for (N)TMH3S P2.
2
Depth and Tensile Load
Match the stated depth (300, 600, 800 or 2000 m) and compare any listed maximum tensile load with the suspended cable weight; clamp long drops to the riser pipe.
3
Voltage and Cross-Section
0.6/1 kV or 0.6/2 kV to suit the supply; on long drops, size the cross-section for motor-start voltage drop as well as current rating.
4
Shape and Sheath
Flat for tight space beside the riser pipe, round for gland sealing, and a halogen-free, low-smoke sheath where surface runs pass through buildings or tunnels.
Industry Solutions
Cable packages engineered around the application, not just the cable.
Mining
Tunnelling & Mining
Mine drainage and dewatering pump cables alongside trailing, shuttle-car and shield-machine cables for underground equipment.
Aquaculture
Aquaculture
S1BNH2-F is listed for aquaculture, seawater pumps and coastal facilities, alongside waterproof and floating cables for fish farms.
Global Projects
Recent deliveries from the TEBAOFLEX project team.
Standards & Certifications
ISO 9001 quality management for cable production; ISO 14001 and ISO 45001 for sales and related management. UL and cUL (flexible cord), VDE (EN 50525-2-21), Korea KC, China MA and US MSHA approvals cover the certified types; CE is a third-party verification of conformity (VoC).
ISO 9001ISO 14001ISO 45001ULcULVDEKC (KTL)MAMSHACE VoC
Manufacturing Process
From compound to shipment, the production steps and routine tests behind each cable length.
- 1
Compound preparation
EPR, CPE, PUR and silicone compounds are mixed and tested for hardness, tensile strength and elongation before use.
- 2
Conductor stranding
Tinned or bare copper is bunched and rope-stranded to Class 5/6 flexibility for trailing and reeling duty.
- 3
Insulation extrusion
Cores are extruded and continuously vulcanised; wall thickness and spark tests are recorded on every length.
- 4
Core assembly and screening
Cores, earth conductors, pilot and fibre-optic elements are laid up with the fillers and screens the type designation requires.
- 5
Inner and outer sheathing
Reinforced double-sheath constructions are extruded and cured for abrasion, oil and tear resistance.
- 6
Routine electrical tests
Conductor resistance, voltage withstand and insulation resistance tests at the levels set by the referenced standard.
- 7
Mechanical and ageing tests
Bending, tensile, hot-set, ozone and flame tests according to the referenced standard.
- 8
Marking, packing and shipment
Metre marking, drum packing and documentation for worldwide project delivery.
Cable Manufacturing Quality Control
Five-stage quality assurance from incoming copper to the packed drum.
- 01
Raw Material Inspection
Every batch of copper rod, rubber compound and reinforcing material is checked before it reaches the line.
- Copper: conductor resistance, elongation and surface condition on incoming rod and drawn wire
- EPR, CPE, PUR and silicone compounds: hardness, tensile strength, elongation and ageing samples from each mix
- 02
Manufacturing Process Control
Stranding, insulation extrusion, core assembly and sheathing run under recorded process parameters.
- Class 5/6 stranding with lay length and tension monitored for trailing and reeling flexibility
- Continuous-vulcanisation extrusion with wall thickness and spark tests logged on every length
- Operators sign off each stage before the cable moves to the next machine
- 03
Electrical Testing
Finished lengths go through the routine tests required by the referenced VDE, ICEA, IEC or NEK standard.
- Conductor resistance and insulation resistance on every length
- Voltage withstand test at the level set by the referenced standard
- Screen and pilot-core continuity checks for mining and reeling constructions
- 04
Mechanical and Ageing Tests
Samples from production are tested for the duty a mining, crane or submersible cable will actually see.
- Tensile strength and elongation of insulation and sheath before and after ageing
- Hot-set, ozone, oil-immersion and low-temperature bending tests
- Constant-temperature water bath for insulation resistance of submersible constructions
- 05
Flame Test and Final Inspection
Before packing, the cable is checked against the order and the flame-performance requirement of its standard.
- Single-cable vertical flame test to IEC 60332-1-2 where specified
- Metre marking, printing, drum length and appearance inspection
- Packing list with every shipment; test documents for the order confirmed at quotation
Factory & Workshop Gallery
TEBAOFLEX CABLE, No.77 Wusongbang Road, Taicang, Suzhou.
Related Articles
Selection and application guides from the TEBAOFLEX engineering team.
Oil Resistant Cable: PR I vs PR II
PR I is a 96-hour oil immersion, PR II is 1,440 hours with a higher pass mark. What the two UL ratings prove, and how to specify oil duty.
Read more
What Is SO Cord? Meaning, Uses and How to Read Its Markings
Learn what SO cord means, where it is used, and how to read type, AWG, conductor count and voltage markings, with a sample photo and a labeled example.
Read more
SOOW vs SJOOW vs SEOOW: What the Cord Letters Mean and Which to Specify
SOOW, SJOOW and SEOOW decoded letter by letter, with voltage, compound and temperature compared and NEC 400.5 ampacity for every size from 18 to 2 AWG.
Read moreFrequently Asked Questions
Quick answers about Submersible Pump Cable from our engineers.
01Which submersible pump cable fits my water, depth and voltage?
For drinking water, Drincable 600 and 800 are stated for permanent immersion in potable water to 600 m or 800 m. For wells and sewage, the flat S1BNH2-F halogen-free rubber cable covers fresh and salt water to 300 m. For dewatering, deep or saline water, the (N)TMH3S P2 with a polyurethane sheath is stated for groundwater and seawater to 2000 m. The first two are rated 0.6/1 kV, the (N)TMH3S P2 0.6/2 kV.
02Should I choose flat or round submersible pump cable?
Flat cable needs less space beside the riser pipe, while round cable seals more easily in a gland. S1BNH2-F is a flat cable, Drincable 800 is round and Drincable 600 is also available flat on request. Bending radius is specified by cable height for flat types, 3 × H up to 12 mm height and 4 × H above, and by overall diameter for round types.
03Which cable should I use for drinking water pumps?
Drincable 600 and 800 are designed for submersible pumps in potable water. Both have Class 5 tinned copper, EPR insulation and a light blue cross-linked sheath, reference EN 50525-2-21 (AD8) for water resistance and BS 6920 for non-metallic materials in contact with water, and are listed for water up to +80 °C. Request potable-water hygiene documents for the exact model at RFQ stage.
04Where can the (N)TMH3S P2 cable not be used?
The ELCOSUB (N)TMH3S P2 is not for explosion-hazard areas or for water containing more than 0.5 mg/l of chlorine, and corrosive water or water of other special compositions must be checked case by case. The permissible water temperature is 60 °C; at higher water temperatures a shortened service life is to be expected. It can be used indoors, outdoors and in industrial and agricultural plant.
05How do depth, tensile load and voltage drop affect cable selection?
Confirm the stated depth first: 300 m for S1BNH2-F, 600 or 800 m for Drincable and 2000 m for (N)TMH3S P2. Compare the suspended cable weight with any listed maximum tensile load, such as 15 N/mm² for S1BNH2-F, and clamp long drops to the riser pipe. On long drops, size the cross-section for motor-start voltage drop as well as current rating.
06What should I send with a submersible pump cable RFQ?
Send the water type, temperature and chemical content; the installation depth and total cable length; motor power, supply voltage and starting method; the number of cores, cross-section and pilot cores; flat or round construction; and the required standards and documents. Request current test and certification documents for the exact model at RFQ stage, including potable-water hygiene documents where applicable.
