(N)TMCGETMPU vs RIT-(N)TMCGETMPU Portable Trailing Cable

RIT-(N)TMCGETMPU Cable Construction

The RIT-(N)TMCGETMPU Portable Mining Trailing Cable is an upgraded version specifically developed for mining equipment operating under extremely high tensile loads, continuous reeling, repetitive torsion, and severe mechanical stress.

While maintaining the same electrical performance as the standard cable, the reinforced design significantly improves durability under dynamic operating conditions.

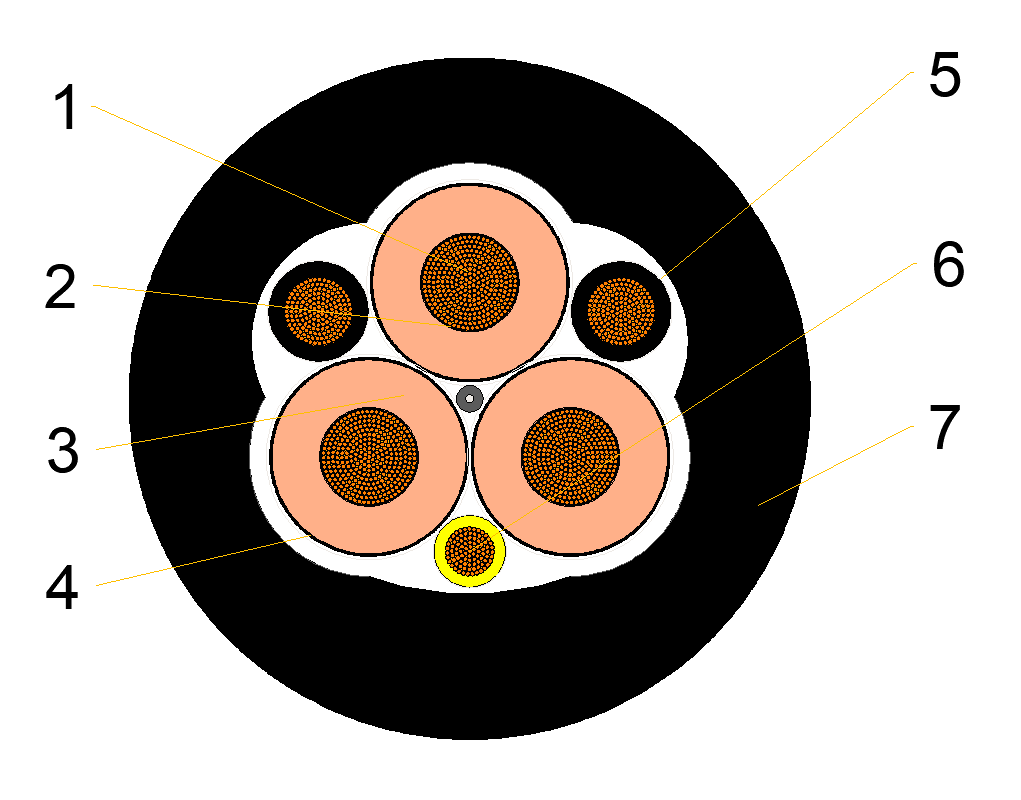

tebaoflex RIT-(N)TMCGETMPU trailing cable

1.Conductors: Finely stranded tinned copper, flexible, class 5 in accordance with IEC 60228
2.Conductor shield: Semi-conductive layer over the conductor
3.Insulation: Special thermosetting Ethylene-Propylene Rubber (EPR). High electrical, mechanical and temperature properties. Quality better than type 3GI3 according to DIN VDE 0207, Part 20
4. Insulation shield: Semi-conducting strippable layer
5.Grounding conductor (Earth): Tinned copper conductor, flexible, finely stranded
6.Ground check conductor: Annealed tin coated copper in accordance with IEC 60228. Polypropylene insulation, yellow colour
7. Jacket: Thermoplastic Polyurethane (TPU) compound, for extra heavy usage, oil resistant, very highly abrasion and very highly tear resistant

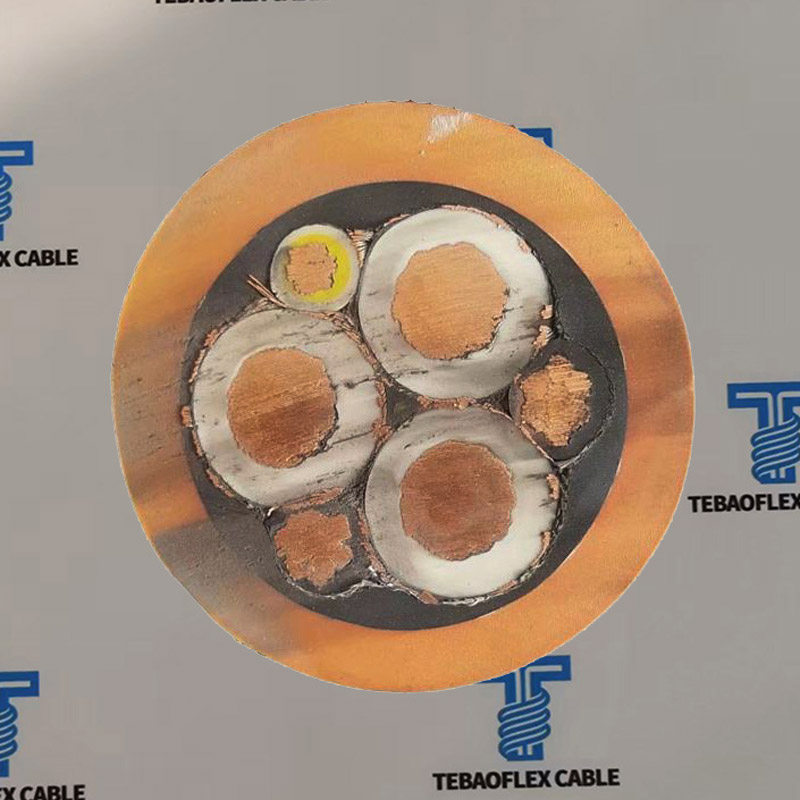

(N)TMCGETMPU Cable Construction

The (N)TMCGETMPU Portable Mining Trailing Cable is manufactured for medium-voltage mining applications requiring excellent flexibility, electrical reliability, and long service life. Its construction follows internationally recognized mining cable design principles and incorporates high-quality insulating and protective materials suitable for harsh operating environments.

Tebaoflex-Cable-RIT-(N)TMCGETMPU

Conducltor: finely stranded tinned copper conductors calss 5 provide maximum flexibility while resisting corrosion in humid underground environments.
Semi-Conductive Shielding System: Extruded conductor and insulation shields provide uniform electrical stress control and improve long-term dielectric reliability.
Insulation: Thermosetting EPR insulation offers excellent dielectric strength, thermal stability, and mechanical flexibility under repeated bending cycles.
Ground Check Conductor: A dedicated insulated ground-check conductor continuously monitors earth continuity and supports safe mining operations.
Dual Grounding Conductors: Flexible tinned copper grounding conductors ensure effective grounding and improve electrical safety.
Reinforced Core Assembly: The internal cable assembly incorporates optimized fillers, compact core geometry, and an integral filled jacket design that significantly improves resistance to torsional stress.
Enhanced Anti-Torsion Design: One of the most important differences between RIT-(N)TMCGETMPU and the standard cable is its reinforced anti-torsion construction. This design reduces internal conductor movement during continuous winding and unwinding, extending cable service life in demanding mining environments.
Outer Sheath: Heavy-Duty TPU

Technical Feature

Performance Features

Higher torsion resistance
Improved tensile performance
Longer reeling life
Excellent flexibility
Reduced maintenance
Longer service intervals
Enhanced reliability under continuous movement

Typical Characteristics

Voltage Rating: 6/10 kV to 14/25 kV
Maximum Conductor Temperature: 90°C
Short Circuit Temperature: 200°C
Cold Flexibility: -30°C
Excellent abrasion resistance
High oil resistance
Superior weather resistance
Outstanding flexibility for trailing applications

Differences Between (N)TMCGETMPU and RIT-(N)TMCGETMPU

Structural Differences

Comparison Item	(N)TMCGETMPU	RIT-(N)TMCGETMPU
Reinforcement Layer	Optional aramid/steel braid	Standard polyester-aramid hybrid anti-torsion braid
Central Strength Member	Not equipped, external reinforcement optional	Integrated full-length aramid strength member (standard)
Torsion Resistance	Standard ±15°/m	Enhanced ±25°/m
Tensile Strength	20~30 kN	40~50 kN
Core Lay-Up	Standard stranding pitch	Optimized short pitch for better flexibility
Outer Sheath	Standard 5GM5 rubber	Modified 5GM5 with higher tear strength

Application Differences

(N)TMCGETMPU: it is a cost-effective standard mining trailing cable, suitable for general mobile mining equipment with moderate mechanical stress and intermittent movement. . The cable is applicable to working conditions with bending cycles within 10,000 times, featuring stable basic performance and competitive cost, which is the preferred choice for conventional mining power distribution

RIT-(N)TMCGETMPU: it is a premium reinforced model, focusing on extreme working conditions with continuous reeling, frequent twisting and heavy load dragging, It is the dedicated power cable for core large mining equipment such as underground continuous miners, longwall shearers, open-pit electric shovels and draglines, as well as Tunnel Boring Machines in tunnel projects.

What’s RIT-(N)TMCGETMPU Portable Mining Trailing Cable

RIT-(N)TMCGETMPU is a high-performance medium-voltage portable mining trailing cable with rated voltage covering 3.6/6 kV to 18/30 kV. It is specially designed for the harshest mobile mining working scenarios, especially for equipment that needs continuous reeling, frequent unreeling, long-distance dragging and severe twisting during operation.
Based on the mature technical platform of (N)TMCGETMPU, it realizes comprehensive reinforcement of anti-torsion, tensile, anti-abrasion and anti-impact performance through RIT exclusive structural upgrades. The cable can work stably in the temperature range from -30°C to +90°C, maintaining excellent flexibility even in low-temperature environments, and will not become hard and brittle.
The core design purpose of RIT-(N)TMCGETMPU is to provide continuous, safe and stable power supply for large heavy-duty mobile mining equipment. Its application scope covers underground coal mines, metal mines, open-pit mines, tunnel engineering and large quarry projects.
In terms of certification and compliance, the cable strictly follows VDE 0250 Part 813 and IEC 60502 standards for medium-voltage power cables. It can also be equipped with MSHA certification for the North American market and ATEX certification for explosive hazardous areas on demand. All products pass IEC 60332-1 flame retardant test, fully complying with global mainstream mining safety specifications.
Compared with traditional rubber-sheathed mining cables, the RIT-(N)TMCGETMPU design offers significantly improved resistance to abrasion, tearing, torsion, oil exposure, and environmental aging, making it one of the preferred cable solutions for modern mining operations where equipment reliability and reduced maintenance costs are critical.

Ordering Information of RIT-(N)TMCGETMPU Cable

Number and cross- section of power + grounding conductors	Power conductor stranding	Grounding/Ground check conductor stranding	Nominal insulation thickness	Nominal jacket thickness	Approximate overall diameter	Maximum conductor resistance at 20℃	Ampacity at ambient temperature 30℃	Approximate weight of cable
mm2	Nx mm	Nx mm	mm	mm	mm	Ω/km	A	kg/km
6/10 kV
3×70+2×35+1×35	514×0.4	254×0.4/254×0.4	2.9	5.5	53.2	0.277	250	5050
3×95+2×35+1×35	684×0.4	254×0.4/254×0.4	2.9	5.5	61.0	0.210	301	6401
3×120+2×50+1×35	870×0.4	364×0.4/254×0.4	2.9	5.5	64.7	0.164	352	7067
3×185+2×70+1×35	1325×0.4	514×0.4/254×0.4	2.9	5.5	74.0	0.108	461	10300
8.7/15 kV
3×70+2×35+1×35	514×0.4	254×0.4/254×0.4	3.7	5.5	61.0	0.277	265	5300
3×95+2×35+1×35	684×0.4	254×0.4/254×0.4	3.7	5.5	66.0	0.210	319	6300
3×120+2×50+1×35	870×0.4	364×0.4/254×0.4	3.7	5.5	70.0	0.164	371	7600
3×185+2×70+1×35	1325×0.4	514×0.4/254×0.4	3.7	5.5	77.5	0.108	488	11300
14/25 kV
3×70+2×35+1×35	514×0.4	254×0.4/254×0.4	5.5	5.5	67.4	0.277	265	7200
3×95+2×35+1×35	684×0.4	254×0.4/254×0.4	5.5	5.5	73.0	0.210	319	8200
3×120+2×50+1×35	870×0.4	364×0.4/254×0.4	5.5	5.5	76.0	0.164	371	8600
3×185+2×70+1×35	1325×0.4	514×0.4/254×0.4	5.5	5.5	84.0	0.108	488	13200

Advantages of RIT-(N)TMCGETMPU Portable Mining Trailing Cable

The RIT-(N)TMCGETMPU Portable Mining Trailing Cable has been specifically engineered for medium-voltage power distribution in demanding mining environments where conventional trailing cables often experience premature wear. Compared with standard portable mining cables, the reinforced RIT design provides higher mechanical reliability, longer service life, and lower maintenance costs.

1. Superior Torsion Resistance

One of the most significant advantages of the RIT-(N)TMCGETMPU cable is its enhanced torsion-resistant construction. The cable incorporates an integral filled jacket design that minimizes internal conductor movement during repeated winding, unwinding, and twisting operations.

This feature makes the cable ideal for continuous cable reel systems, draglines, electric shovels, and other mobile mining equipment subjected to constant dynamic movement.

2. Exceptional Abrasion Resistance

The heavy-duty Thermoplastic Polyurethane (TPU) outer sheath offers excellent protection against:

Sharp rocks
Gravel
Ore fragments
Steel structures
Continuous dragging
Mechanical impacts

Compared with conventional rubber sheaths, TPU provides significantly improved wear resistance and extends the operational life of the cable in harsh mining environments.

3. High Mechanical Strength

The optimized cable assembly improves resistance to:

Tensile loads
Crushing forces
Impact damage
Repeated bending
Mechanical vibration
Dynamic movement

These characteristics reduce conductor fatigue and improve operational reliability during long-term mining operations.

Why Choose TEBAOFLEX RIT-(N)TMCGETMPU?

TEBAOFLEX manufactures premium mining cables designed for the world’s most demanding mining environments.

Our RIT-(N)TMCGETMPU cables provide:

Medium-voltage ratings from 6/10 kV to 14/25 kV
Premium EPR insulation
Heavy-duty TPU jacket
Superior abrasion resistance
Enhanced torsion resistance
Oil and chemical resistance
Flexible Class 5 tinned copper conductors
OEM & customized solutions
Global technical support

Whether powering electric shovels, draglines, continuous miners, mobile crushers, or drilling equipment, TEBAOFLEX RIT-(N)TMCGETMPU Portable Mining Trailing Cables deliver reliable performance, maximum durability, and lower total ownership costs.

Application Cases of RIT-(N)TMCGETMPU

Case 1: Underground Metal Mine – Continuous Miner

The application site is a deep underground copper mine in Chile, and the core equipment is a 6/10 kV continuous miner. The tunnel space is narrow, the cable is in a wet environment all year round, and it will generate continuous torsion of about ±20° per meter during the operation of the miner. Sharp ore particles also cause serious abrasion to the cable sheath.

The project selected RIT-(N)TMCGETMPU 6/10 kV 3×70 mm² cable. The cable runs 24 hours a day in the ambient temperature of -20°C to +40°C. Within two years of operation, there is no fault caused by torsion and abrasion. It completely eliminates unplanned shutdowns due to cable damage and improves the overall operation efficiency of the mining equipment by 15%.

Case 2: Urban Tunnel Project – TBM Power Supply

This case is an urban metro tunnel construction project in Europe, using large Tunnel Boring Machine with a rated voltage of 12/20 kV. The cable laying length reaches 300 to 500 meters. During the tunneling process, the cable is continuously reeled and bears long-distance tensile load, and is often soaked by muddy water.

The construction team adopted RIT-(N)TMCGETMPU 12/20 kV 3×120 mm² cable. Its excellent tensile resistance and waterproof structure keep the insulation performance stable for a long time. The cable can withstand the maximum tensile force of 45 kN during reeling. After putting into use, the cable replacement frequency is reduced by 70%, providing a solid guarantee for the smooth progress of the tunnel project.

FAQ of RIT-(N)TMCGETMP Cable

1. What equipment uses RIT-(N)TMCGETMPU cables?

Typical applications include:

Electric shovels
Draglines
Continuous miners
Mobile crushers
Blast-hole drills
Dredges
Track-mounted mining equipment
Cable reel systems

2. Why is TPU used for the outer sheath?

TPU provides outstanding resistance to abrasion, tearing, oil, impact, chemicals, UV exposure, and weathering, making it one of the preferred sheath materials for heavy-duty mining cables.

3. Is RIT-(N)TMCGETMPU suitable for underground mining?

Yes. The cable is designed for both underground and surface mining operations where continuous movement and severe mechanical stresses are present

4. Can TEBAOFLEX manufacture customized mining cables?

Yes. TEBAOFLEX provides customized conductor sizes, voltage ratings, jacket colors, grounding configurations, and OEM solutions to meet specific mining project requirements.
