(N)3GHSSHCH LSZH Tunnelling & Underground Mining Cable

TEBAOFLEX CABLE is customer-oriented in the design and manufacture of cables and products, providing (N)3GHSSHCH cable customized product services, Suitability: For use in the Mining industry for tunnelling and underground applications requiring low smoke and zero halogen properties (LSZH).
All performance requirements of the customer’s heva-duty rubber cable working application, and we are committed to providing high-quality services and products to customers at competitive prices at all levels.

LSZH (N)3GHSSHCH Tunnelling & underground Mining Cable Construction

Voltage:  3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV
Conductors : Flexible electrolytic copper wire acc. to DIN VDE 0295 – Class 5
Insulation Main Cores : 3GI3 type EPR compound
Pilot Control Cores : 3GI3 type EPR compound
Protective Conductor : Made of plain copper wires or copper wire braiding laid-up concentrically around each main core
Electrical Field : Extruded inner and outer rubber semiconductive layer For
Control : 3,6/6 kV cables outer semiconductive layer only
Core Identification Main Cores : Natural coloring, design acc. to DIN VDE 0250 Part.1
Pilot Cores : Black colored and number coded
Lay Up : Three main conductors laid-up with three pilot control cores in the outer interstice Protective cores are concentrically wrapped over insulation of power cores
Inner Sheath : Special Halogen free and flame retardant HFFR compound
Monitoring : Semiconductive tape + overall concentric lay of copper wires and
Conductor : syntetic tape over wires
Inner Sheath : Special Halogen free and flame retardant HFFR compound
Armour : Galvanized steel wire braiding, coverage minimum 75 %
Outer Sheath : Special Halogen free and flame retardant HFFR compound
Color : Red or Black

Operation Characteristics

Rated Voltage : 3,6/6 kV 6/10 kV 8,7/15 kV 2/20 kV 18/30 kV
AC Test Voltage : 11 kV 17 kV 24 kV 29 kV 43 kV
Max. Permissible :
Operating Voltage AC : 4,2/7,2 kV 6,9/12 kV 10,4/18 kV 13,9/24 kV 20,8/36 kV
Max. Permissible :
Operating Voltage DC : 5,4/10,8 kV 9/18 kV 13,5/27 kV 18/36 kV 27/54 kV
Min. Bending Radius :
Current Carrying Capacity : Acc. to DIN VDE 0298 part 3
Working Temperature : According to DIN VDE 0298, Part 4
Fixed : -40ºC … +80ºC
Mobile : +5ºC … +80ºC
Max. Tensile Load of cable : 15 N/mm²
Max. Torsion : 25º/m
Travel Speed : max. 30m/min
Minimum distance for :
change of direction : 20 X D

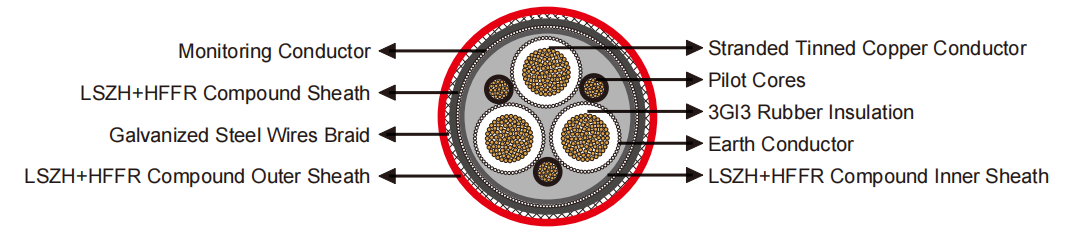

Difference voltage of (N)3GHSSHCH Cable Structure

VOLTAGE	(N)3GHSSHCH – 3.6/6kV and 6/10kV Cable	(N)3GHSSHCH – 8.7/15kV and 12/20kV Cable
	3.6/6kV & 6/10kV	8.7/15kV & 12/20kV
PHASE CONDUCTOR	Class 5 Flexible Stranded Copper
INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
PROTECTIVE EARTH CONDUCTOR	Individual Copper Wire Screen
CONTROL CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
CENTRAL FILLER	Rubber Compound on a Textile Polyester Support
INNER SHEATH	LSZH (Low Smoke Zero Halogen)
MONITORING CONDUCTOR	Copper Wire Screen over the First Inner Sheath
INNER SHEATH 2	LSZH (Low Smoke Zero Halogen)
ARMOUR	Steel Wire Braid over the Second Inner Sheath
OUTER SHEATH	LSZH (Low Smoke Zero Halogen)

Tebaoflex (N)3GHSSHCH Cable Design Feature

• Voltage Rating:  The (N)3GHSSHCH is manufactured to VDE0250 Standard for Voltage Ratings (Uo/U) of 3.6/6kv, 6/10kV or 8.7/15kV, 12/20kV, and they are designed to operate in ambient temperatures of -40oC to +80oC when fixed and +5oC to +80oC when flexed
• Specification: (N)3GHSSHCH designed for use in the Mining industry for tunnelling and underground applications, the (N)3GHSSHCH cable offers a flexible power supply to Medium Voltage (MV) equipment with a black Low Smoke Zero Halogen (LSZH) inner (x2) and outer sheathing.
• Suitability: As feeder cable for power supply of shiftable MV equipment, e.g. compressure resistant transformers, for underground mining applications as well as for tunnel sites. For use in the Mining industry for tunnelling and underground applications requiring low smoke and zero halogen properties (LSZH).

 (N)3GHSSHCH LSZH Tunnelling Mining Cable Parameter Data

Cross Section	Overall Diameter Mln-Max	Conductor Resistance At 20 °C	Approxlmate welght
(mm2)	(mm)	(Ω/km)	(kg/km)
3,6/6 kV (N)3GHSSHCH LSZH Mining Cable
3×25 + 3×16/3E + 3×2,5st + .L	47.0 – 51.0	0.78	3600
3×70 + 3×35/3E + 3×2,5st + .L	56.1 – 61.2	0.272	5900
3×95 + 3X50/3E + 3×2,5st + .L	60.3 – 66.2	0.206	5900
3×120 + 3×70/3E + 3×2,5st + .L	63.8 – 70.2	0.161	8620
3×150 + 3×70/3E + 3×2,5st + .L	66.0 – 72.0	0.129	9860
3×185 + 3×95/3E + 3×2,5st + .L	70.0 – 74.0	0.106	11300
6/10 kV
3×25 + 3×16/3E + 3×2,5st + .L	54.0 – 57.0	0.78	4200
3×35 + 3×16/3E + 3×2,5st + .L	57.1 – 60.2	0.554	4650
3×50 + 3×25/3E + 3×2,5st + .L	60.4 – 63.6	0.386	5380
3×70 + 3×35/3E + 3×2,5st + .L	65.2 – 68.8	0.272	6450
3×95 + 3X50/3E + 3×2,5st + .L	68.0 – 71.9	0.206	7700
3×120 + 3×70/3E + 3×2,5st + .L	70.1 – 76.1	0.161	9260
3×150 + 3×70/3E + 3×2,5st + .L	73.0 – 78.0	0.129	10840
3×185 + 3×95/3E + 3×2,5st + .L	74.0 – 79.2	0.106	12400
8,7/15 kV (N)3GHSSHCH LSZH Mining Cable
3×25 + 3×16/3E + 3×2,5st + .L	54.2 – 58.0	0.78	4530
3×35 + 3×16/3E + 3×2,5st + .L	55.0 – 60.0	0.554	5100
3×50 + 3×25/3E + 3×2,5st + .L	58.0 – 61.0	0.386	5840
3×70 + 3×35/3E + 3×2,5st + .L	65.2 – 67.0	0.272	7840
3×95 + 3X50/3E + 3×2,5st + .L	66.0 – 69.0	0.206	9120
12/20 kV (N)3GHSSHCH LSZH Mining Cable
3×25 + 3×16/3E + 3×2,5st + .L	54.4 – 58.2	0.78	4920
3×35 + 3×16/3E + 3×2,5st + .L	55.4 – 60.0	0.554	5400
3×50 + 3×25/3E + 3×2,5st + .L	58.0 – 61.0	0.386	6200
3×70 + 3×35/3E + 3×2,5st + .L	65.2 – 67.0	0.272	7320
3×95 + 3X50/3E + 3×2,5st + .L	66.0 – 69.0	0.206	8630
3×120 + 3×70/3E + 3×2,5st + .L	68.7 – 74.0	0.161	9260
3×150 + 3×70/3E + 3×2,5st + .L	74.0 – 78.0	0.129	10460
3×185 + 3×95/3E + 3×2,5st + .L	78.0 – 82.0	0.106	11870

(N)3GHSSHCH Tunnelling Underground Mining Cable Installation Instructions



✔ Firstly, Before installation, inspect (N)3GHSSYCY/(N)3GHSSYHCH Cable for damage and verify specifications match operating requirements.
1. Avoid dragging, sharp friction and excessive bending;
2. follow the specified minimum bend radius.
3. Keep cables away from high-temperature sources and corrosive substances.

✔ Secondly, during laying, ensure proper tension to prevent overstretching the steel wire braid armor.
1. For underground and mobile use, fix cables securely with dedicated fixtures.
2. Terminate cores strictly per electrical standards, guaranteeing tight connections and good insulation.

✔ Lastly, after installation, conduct insulation and continuity tests.
Do not operate the cable until all inspections pass. Wear protective gear during work and comply with local electrical safety regulations at all times.
