UL 1815 PTFE Wire 250°C 300V, Silver- or Nickel-Plated Copper
UL 1815 wire is a 300 V, 250 °C single-conductor wire with PTFE fluoropolymer insulation over silver-plated or nickel-plated copper, for the internal wiring of appliances and electronic equipment, in sizes from 30 AWG to 10 AWG with a VW-1 flame rating.
- Voltage rating300 V
- Temperature rating250 °C
- ConductorSilver- or nickel-plated copper
- InsulationPTFE fluoropolymer
- Sizes10 to 30 AWG
- Overall diameter0.92 mm to 3.60 mm
- Flame ratingVW-1
- ColoursSAE colour series
UL 1815 is the UL wire style for 300 V, 250 °C appliance wire. TEBAOFLEX builds it with a PTFE fluoropolymer wall over silver-plated or nickel-plated copper, in sizes from 30 AWG to 10 AWG, with stranded and solid conductors and nominal overall diameters from 0.92 mm to 3.60 mm.
Choose UL 1815 for internal wiring of appliances and electronic equipment where the circuit voltage is 300 V or less and the wire runs close to heat. The PTFE insulation resists flame, corrosion and radiation, and the wire keeps good mechanical strength, flexibility and twist resistance in tight routing.
Browse the UL style wire category for the other PTFE, FEP, silicone and XLPE styles or download the UL 1815 datasheet (PDF).
Application & Features
Selection overview
UL 1815 is used for the internal wiring of appliances and electronic equipment, such as connections inside cooking and heating appliances, power supplies, control units, instruments and test equipment, where many small-gauge wires run near hot parts. Sizes down to 30 AWG and the SAE colour series suit dense, colour-coded wiring, and the PTFE wall stays stable where flame, corrosive atmospheres or radiation are present.
Within the TEBAOFLEX PTFE range, compare UL 1659 for a 600 V, 250 °C lead wire with nickel-plated copper, UL 1570 for a 600 V, 250 °C wire with abrasion-resistant mineral-filled PTFE, and UL 1180 where a 300 V, 200 °C rating with silver-plated copper is enough.
- 250 °C ratingFor internal wiring that runs next to heating elements and other hot components.
- Fine sizesDown to 30 AWG, with solid conductors at 20, 28 and 30 AWG for compact point-to-point wiring.
- Plated copperSilver-plated or nickel-plated copper to suit the termination method and the duty.
- VW-1 flame ratingPTFE insulation with excellent flame, corrosion and radiation resistance.
Specifications
Technical data
Nominal values for UL 1815 constructions. The final construction is confirmed on the TEBAOFLEX datasheet issued with your quotation.
Electrical, thermal and material data
| Parameter | Value |
|---|---|
| Voltage rating | 300 V |
| Temperature rating | 250 °C |
| Conductor | Silver-plated or nickel-plated copper |
| Insulation | PTFE fluoropolymer |
| Protection | PTFE insulation with excellent flame, corrosion and radiation resistance |
| Performance | Good mechanical strength, flexibility and twist resistance |
| Colours | SAE colour series |
| Wire style | UL AWM style 1815; UL 758-2010; UL 1581-2009 |
| Flame rating | VW-1 |
| Environmental | RoHS/REACH compliant |
| Application | Appliance and electronic equipment internal wiring |
Dimensions and electrical data
| AWG | Stranding | Cond. dia. mm | Insul. thickness | Overall dia. mm | Resistance ohm/km |
|---|---|---|---|---|---|
| 10 | 37/0.42 | 3.01 | 0.33 / 0.30 | 3.60 | 3.54 |
| 12 | 37/0.374 | 2.62 | 0.33 / 0.30 | 3.28 | 5.64 |
| 14 | 19/0.361 | 1.85 | 0.33 / 0.30 | 2.55 | 8.96 |
| 16 | 19/0.287 | 1.50 | 0.33 / 0.30 | 2.15 | 14.60 |
| 18 | 19/0.235 | 1.18 | 0.33 / 0.30 | 1.85 | 23.20 |
| 18 | 7/0.39 | 1.19 | 0.33 / 0.30 | 1.85 | 23.20 |
| 20 | 1/0.813 | 0.813 | 0.33 / 0.30 | 1.47 | 35.20 |
| 20 | 19/0.19 | 0.95 | 0.33 / 0.30 | 1.62 | 36.70 |
| 22 | 19/0.15 | 0.76 | 0.33 / 0.30 | 1.40 | 59.40 |
| 24 | 7/0.20 | 0.63 | 0.33 / 0.30 | 1.28 | 94.20 |
| 26 | 7/0.16 | 0.48 | 0.33 / 0.30 | 1.15 | 150.00 |
| 28 | 1/0.32 | 0.32 | 0.33 / 0.30 | 0.98 | 227.00 |
| 28 | 7/0.127 | 0.40 | 0.33 / 0.30 | 1.05 | 239.00 |
| 30 | 1/0.254 | 0.254 | 0.33 / 0.30 | 0.92 | 361.00 |
Selection note: Dimensions are nominal and subject to manufacturing tolerances. Before ordering, ask our engineers to confirm the insulation wall tolerance, the reference temperature of the resistance values, the temperature rating for the conductor plating you choose, the minimum bending radius, the current rating for your installation, the VW-1 marking and the put-up lengths you need.
Standards & References
Applicable standards and compliance
- Wire styleUL 1815 appliance wiring material, 300 V and 250 °C, with UL 758 and UL 1581 as the reference standards.
- Flame ratingVW-1 flame-test designation; the marking printed on your wire is agreed with the quotation.
- ConductorSilver-plated or nickel-plated copper from 30 AWG to 10 AWG, solid or stranded with 7, 19 or 37 wires, as listed in the size table.
- Voltage scope300 V for the internal wiring of appliances and electronic equipment.
- ApprovalsUL style, CSA and flame-test markings for your order are confirmed and quoted per order.
Construction
Material and build-up

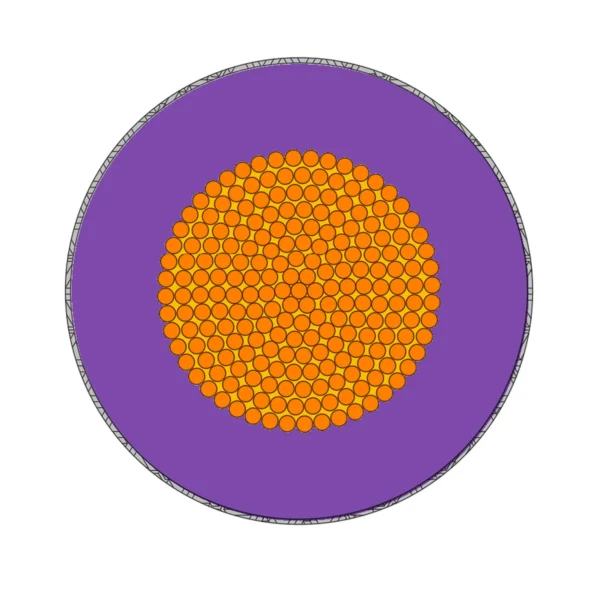

UL 1815 is a single-conductor wire with two layers: a silver-plated or nickel-plated copper conductor and one PTFE fluoropolymer wall.
- Conductor: silver-plated or nickel-plated copper; 37 strands at 10 and 12 AWG, 19 or 7 strands from 14 AWG to 28 AWG, and solid wire at 20, 28 and 30 AWG.
- Insulation: PTFE fluoropolymer with the same wall on every size (0.33 / 0.30 in the size table), giving overall diameters from 0.92 mm at 30 AWG to 3.60 mm at 10 AWG.
- Performance: good mechanical strength, flexibility and twist resistance for routing inside compact equipment.
- Colours: insulation in the SAE colour series for colour-coded wiring.
FAQ
Selection questions
What is UL 1815 wire?
UL 1815 is a UL wire style for 300 V, 250 °C appliance wire. The TEBAOFLEX version has PTFE fluoropolymer insulation over silver-plated or nickel-plated copper, from 30 AWG to 10 AWG, with a VW-1 flame rating, for the internal wiring of appliances and electronic equipment.
How is UL 1815 different from UL 1659 and UL 1180?
UL 1815 and UL 1659 are both 250 °C PTFE wires, but UL 1659 is rated 600 V with nickel-plated copper, while UL 1815 is rated 300 V with silver-plated or nickel-plated copper. UL 1180 is also a 300 V PTFE wire with silver-plated copper, rated 200 °C.
Silver-plated or nickel-plated copper: which should I choose?
Tell us the highest temperature at the wire and how it is terminated, for example soldered, crimped or welded. Our engineers confirm the plating that suits the duty and state its temperature rating on the datasheet issued with your quotation.
Why are some sizes solid?
At 20, 28 and 30 AWG the size table lists a solid conductor (1/0.813, 1/0.32 and 1/0.254), with stranded options also at 20 and 28 AWG. Solid wire suits fixed point-to-point wiring; choose a stranded construction where the wire flexes in service.
What should I send for a quotation?
Send the UL style, AWG size and stranding, conductor plating, SAE colour, put-up length, quantity and any UL, CSA or VW-1 marking requirement. Our engineers confirm the construction on the datasheet issued with your quotation.
