UL 3132 Silicone Rubber Wire 150°C 300V, Tinned or Bare Copper
UL 3132 wire is a 300 V, 150 °C single-conductor appliance wire with soft silicone rubber insulation over tinned or bare copper, used for internal wiring of totally enclosed appliances and electronic equipment that need a flexible, heat-resistant lead.
- Voltage rating300 V
- Temperature rating150 °C
- ConductorTinned or bare copper
- InsulationSilicone rubber
- Sizes16 to 30 AWG
- Overall diameter1.10 mm to 2.30 mm
- Flame ratingFT2
- EnvironmentalRoHS and REACH compliant
UL 3132 is the UL wire style for 300 V, 150 °C appliance wire with silicone rubber insulation. TEBAOFLEX builds it as a single-conductor wire with silicone rubber over tinned or bare copper, in sizes from 16 AWG to 30 AWG and overall diameters from 1.10 mm to 2.30 mm. Several strandings are offered in 22 AWG and 24 AWG, from a fine 133-wire conductor to a single wire.
Choose UL 3132 for the internal wiring of totally enclosed appliances and electronic equipment that run continuously at up to 150 °C. Silicone rubber stays soft and elastic, resists heat, cold and weather, and is flame retardant with the FT2 flame rating, so the wire routes easily around components in tight housings.
Browse the UL style wire category for the other PTFE, FEP, silicone and XLPE styles or download the UL 3132 datasheet (PDF).
Application & Features
Selection overview

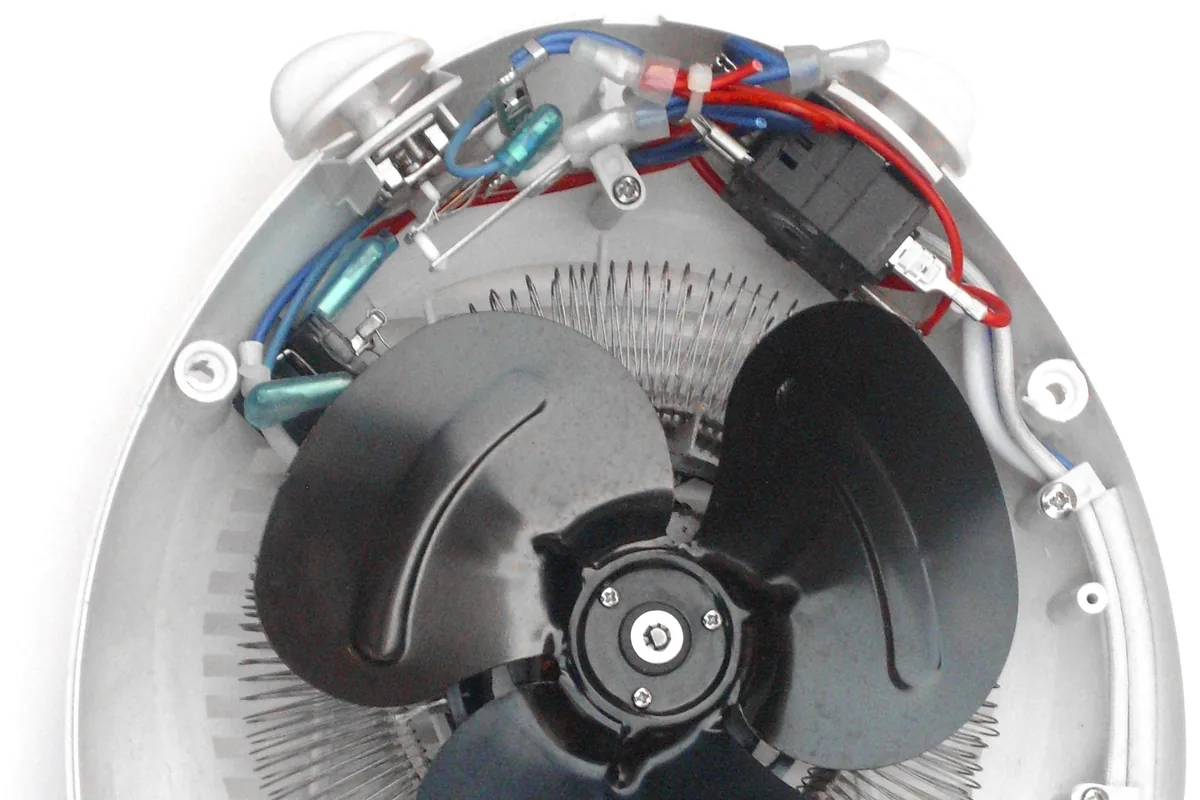

UL 3132 is used inside enclosed appliances where the wiring sits near heating elements, thermostats, switches and motors: fan heaters, toasters, kettles, hair dryers, lamp housings and similar small appliances, and electronic equipment that runs warm. Silicone rubber is soft and elastic, so leads bend easily around terminals and components during assembly.
For comparison, UL 1333 gives the same 300 V, 150 °C rating with a thin FEP wall over tinned copper, UL 1164 does the same with extruded PTFE over silver-plated copper, and UL 3266 is a 300 V, 125 °C low-smoke, non-halogen XLPE appliance wire.
- Silicone rubber insulationSoft, elastic insulation with good heat, cold and weather resistance.
- 150 °C continuousRated for continuous use up to 150 °C inside enclosed appliances.
- Flame retardantSilicone rubber with flame retardancy and the FT2 flame rating.
- Choice of strandingsFine 133-wire stranding at 24 AWG and single-wire conductors at 22, 24 and 26 AWG.
Specifications
Technical data
Nominal values for UL 3132 constructions. The final construction is confirmed on the TEBAOFLEX datasheet issued with your quotation.
Electrical, thermal and material data
| Parameter | Value |
|---|---|
| Voltage rating | 300 V |
| Temperature rating | 150 °C |
| Conductor | Tinned or bare copper strands |
| Insulation | Silicone rubber |
| Construction | Cold extrusion or high-temperature vulcanisation |
| Protection | Silicone rubber insulation with good heat, cold and weather resistance |
| Performance | Good elasticity, softness, flame retardancy and flexibility |
| Flame rating | FT2 |
| Wire style | UL AWM Style 3132 |
| Reference standards | UL 758-2010; UL 1581-2009 |
| Environmental | RoHS/REACH compliant; odourless and non-toxic |
| Application | Internal wiring of totally enclosed appliances and electronic equipment |
Dimensions and electrical data
| AWG | Stranding | Cond. dia. mm | Insul. thickness | Overall dia. mm | Resistance ohm/km |
|---|---|---|---|---|---|
| 16 | 7/0.49 | 1.50 | 0.40 / 0.33 | 2.30 | 14.60 |
| 18 | 7/0.39 | 1.19 | 0.40 / 0.33 | 1.97 | 23.20 |
| 20 | 7/0.30 | 0.92 | 0.46 / 0.33 | 1.85 | 36.70 |
| 22 | 17/0.16 | 0.76 | 0.46 / 0.33 | 1.70 | 59.40 |
| 22 | 7/0.254 | 0.76 | 0.46 / 0.33 | 1.70 | 59.40 |
| 22 | 1/0.65 | 0.65 | 0.46 / 0.33 | 1.57 | 56.40 |
| 24 | 133/0.05 | 0.67 | 0.40 / 0.33 | 1.47 | 94.20 |
| 24 | 19/0.12 | 0.60 | 0.40 / 0.33 | 1.40 | 94.20 |
| 24 | 11/0.16 | 0.61 | 0.40 / 0.33 | 1.41 | 94.20 |
| 24 | 7/0.20 | 0.61 | 0.40 / 0.33 | 1.41 | 94.20 |
| 24 | 1/0.51 | 0.51 | 0.40 / 0.33 | 1.31 | 89.30 |
| 26 | 7/0.16 | 0.48 | 0.40 / 0.33 | 1.28 | 150.00 |
| 26 | 1/0.40 | 0.40 | 0.40 / 0.33 | 1.20 | 143.00 |
| 28 | 7/0.127 | 0.38 | 0.40 / 0.33 | 1.18 | 239.00 |
| 30 | 7/0.10 | 0.30 | 0.40 / 0.33 | 1.10 | 381.00 |
Selection note: Overall diameters are nominal and subject to manufacturing tolerances. Before ordering, ask our engineers to confirm the insulation wall for your size, the reference temperature for the resistance values, the insulation colours, the minimum bending radius, the current rating for your installation, tinned or bare copper and the put-up lengths you need.
Standards & References
Applicable standards and compliance
- Wire styleUL AWM Style 3132 single-conductor appliance wire, 300 V and 150 °C, with the FT2 flame rating.
- Reference standardsUL 758-2010; UL 1581-2009.
- ConductorTinned or bare copper, from a single wire up to 133 strands depending on size, as listed in the size table.
- EnvironmentalRoHS and REACH compliant; the insulation is odourless and non-toxic.
- ApprovalsUL style, CSA and flame-test markings for your order are confirmed and quoted per order.
Construction
Material and build-up

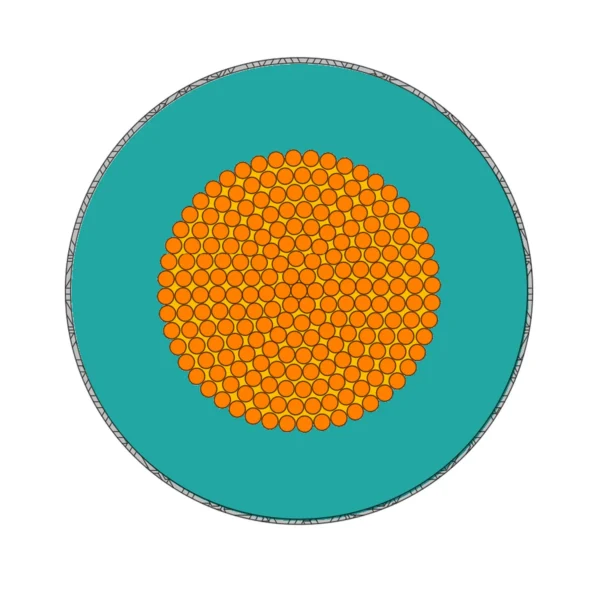

UL 3132 is a single-conductor wire with two layers: a tinned or bare copper conductor and one silicone rubber wall.
- Conductor: tinned or bare copper; stranded in every size from 16 AWG to 30 AWG, with a fine 133-wire conductor at 24 AWG and single-wire options at 22, 24 and 26 AWG.
- Insulation: silicone rubber applied by cold extrusion or high-temperature vulcanisation, giving a soft, elastic wall with good heat, cold and weather resistance.
- Flame performance: flame-retardant silicone rubber with the FT2 flame rating.
- Environmental: RoHS and REACH compliant materials; the insulation is odourless and non-toxic.
FAQ
Selection questions
What is UL 3132 wire?
UL 3132 is a UL wire style for 300 V, 150 °C appliance wire with silicone rubber insulation. The TEBAOFLEX version is a single-conductor wire over tinned or bare copper, from 16 AWG to 30 AWG, for internal wiring of totally enclosed appliances and electronic equipment.
How is UL 3132 different from UL 1333 and UL 3266?
UL 3132 and UL 1333 share the 300 V, 150 °C rating: UL 3132 uses soft silicone rubber, while UL 1333 uses a thin FEP wall over tinned copper. UL 3266 is a 300 V, 125 °C low-smoke, non-halogen XLPE appliance wire for cooler positions.
Tinned or bare copper: which should I choose?
Both are offered. Tinned copper protects the strands and solders easily; bare copper is available where your design does not need plating. Tell us which you need when you request a quotation.
Why are there several strandings in 24 AWG?
Finer stranding gives a more flexible lead. At 24 AWG the choice runs from 133 wires of 0.05 mm to a single 0.51 mm wire, and the overall diameter changes from 1.31 mm to 1.47 mm, so check the size table against your terminals and grommets.
What should I send for a quotation?
Send the UL style, AWG size and stranding, tinned or bare copper, insulation colour, put-up length, quantity and any UL, CSA or flame-test marking requirement. Our engineers confirm the construction on the datasheet issued with your quotation.
Request this cable.
Send the UL style, AWG size and stranding, tinned or bare copper, insulation colour, put-up length, quantity and marking requirement, and we will confirm the construction and quote.
