H07BZ5-F EV Charging PUR Cable 450/750V
H07BZ5-F EV charging PUR cable with 450/750V rating, Class 5 copper, EVI-2 insulation, PUR-HF sheath, control/pilot cores and 1.5mm² to 35mm² configurations.
H07BZ5-F cable is a flexible PUR-sheathed electric vehicle charging cable for project-defined AC charging connections.
View the EV charging cable category for related PUR and DC charging cables.
Application & Features
Selection overview

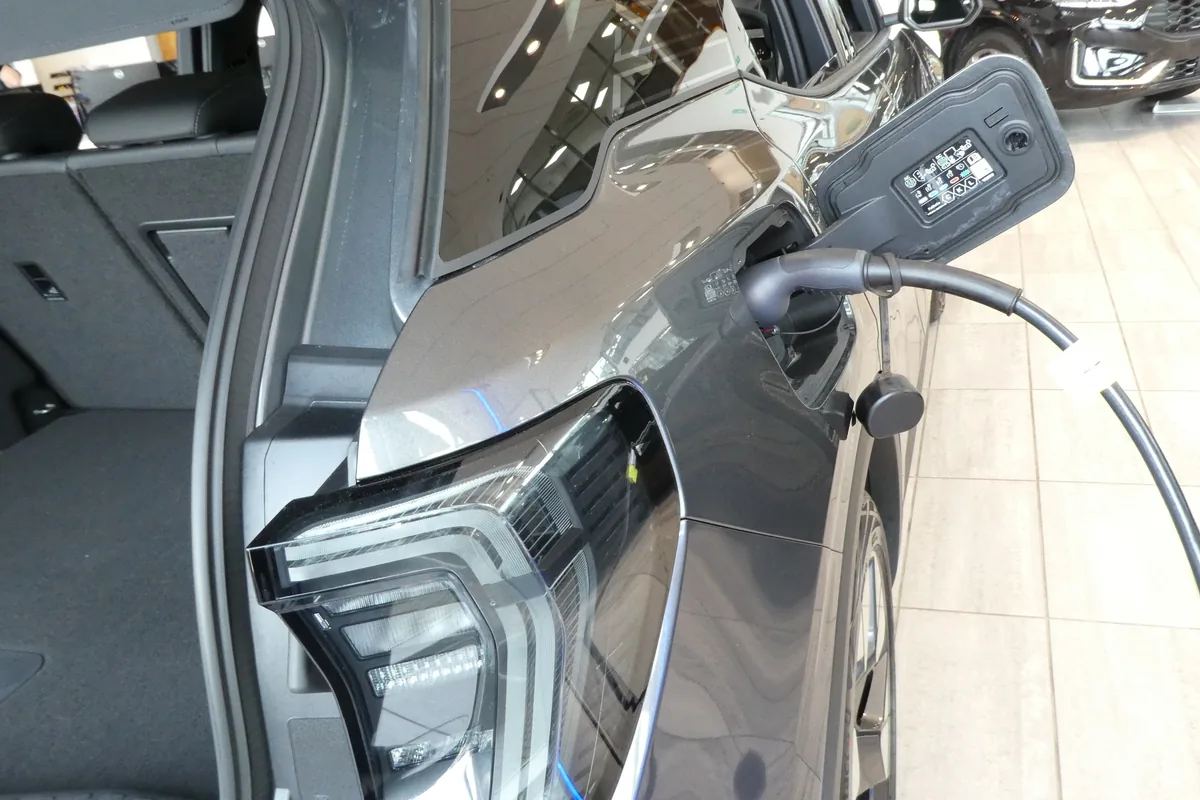

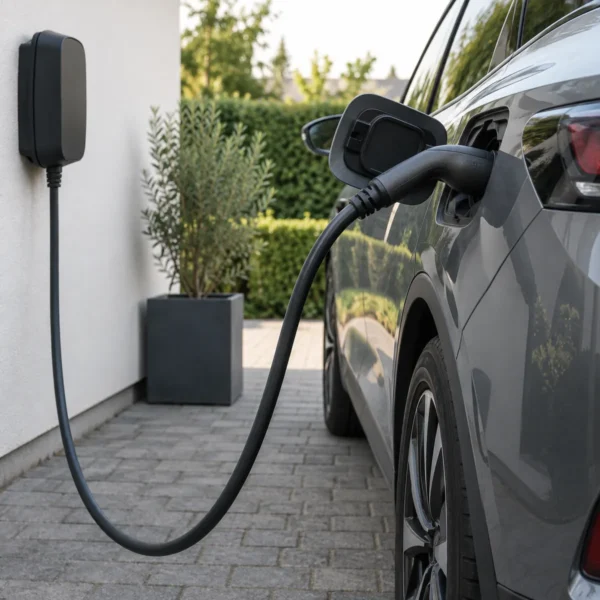

H07BZ5-F cable is positioned for flexible EV charging connections to the vehicle socket in charging modes 2 and 3 according to the supplied references.
- AC charging connectionsH07BZ5-F cable for specified electric vehicle charging equipment and vehicle-socket connections.
- Mode 2 and 3 routesH07BZ5-F cable for charging modes listed in the supplied reference material.
- Control and pilot coresH07BZ5-F cable where the required auxiliary-core arrangement is defined.
- Flexible installationsH07BZ5-F cable where the selected bend convention and route movement are accepted.
Specifications
Metric data from supplied technical material
The following H07BZ5-F cable values are consolidated from the supplied reference sheets.
Electrical and environmental data
| Parameter | Value |
|---|---|
| Voltage rating | 450/750V |
| Operating temperature | -40°C to +90°C |
| Minimum use temperature | -40°C |
| Maximum conductor operating temperature | 90°C |
| Short-circuit temperature | +250°C, maximum 5 seconds |
| Minimum bend radius | 6 × overall diameter in one supplied table; 4 × diameter fixed and 6.5 × diameter flexible in another supplied sheet |
| Conductor | Class 5 flexible stranded copper |
| Insulation | Rubber compound type EVI-2 |
| Outer sheath | PUR-HF polyurethane, black or orange |
More technical data
H07BZ5-F cable construction and current table
| Cores | Area | Control/pilot | Single phase at 30°C | Three phase at 30°C | Overall diameter min-max | Charging mode |
|---|---|---|---|---|---|---|
| 3 | 1.5mm² | n×0.5 / n×1.0mm² | 14A | – | 8.2-10.5mm | 2/3 |
| 3 | 2.5mm² | n×0.5 / n×1.0mm² | 25A | 20A | 9.3-11.9mm | 2/3 |
| 3 | 4mm² | n×0.5 / n×1.0mm² | 35A | 30A | 10.8-13.8mm | 2/3 |
| 3 | 6mm² | n×0.5 / n×1.0mm² | 44A | 38A | 12.3-15.7mm | 2/3 |
| 3 | 10mm² | n×0.5 / n×1.0mm² | 62A | 54A | 14.8-19.0mm | 2/3 |
| 3 | 16mm² | n×0.5 / n×1.0mm² | 82A | 71A | 17.6-22.6mm | 2/3 |
| 3 | 25mm² | n×0.5 / n×1.0mm² | 109A | 94A | 21.9-28.0mm | 2/3 |
| 3 | 35mm² | n×0.5 / n×1.0mm² | 135A | 117A | 25.7-32.9mm | 2/3 |
| 4 | 2.5mm² | n×0.5 / n×1.0mm² | 25A | 20A | 10.2-13.1mm | 2/3 |
| 4 | 4mm² | n×0.5 / n×1.0mm² | 35A | 30A | 11.9-15.2mm | 2/3 |
| 4 | 6mm² | n×0.5 / n×1.0mm² | 44A | 38A | 13.5-17.3mm | 2/3 |
| 4 | 10mm² | n×0.5 / n×1.0mm² | 62A | 54A | 16.4-20.9mm | 2/3 |
| 4 | 16mm² | n×0.5 / n×1.0mm² | 82A | 71A | 19.7-25.2mm | 2/3 |
| 4 | 25mm² | n×0.5 / n×1.0mm² | 109A | 94A | 24.6-31.5mm | 2/3 |
| 4 | 35mm² | n×0.5 / n×1.0mm² | 135A | 117A | 28.9-37.0mm | 2/3 |
| 5 | 2.5mm² | n×0.5 / n×1.0mm² | 25A | 30A | 11.7-15.0mm | 2/3 |
| 5 | 4mm² | n×0.5 / n×1.0mm² | 35A | 30A | 13.2-17.3mm | 2/3 |
| 5 | 6mm² | n×0.5 / n×1.0mm² | 44A | 38A | 15.4-19.7mm | 2/3 |
| 5 | 10mm² | n×0.5 / n×1.0mm² | 62A | 54A | 18.3-23.4mm | 2/3 |
| 5 | 16mm² | n×0.5 / n×1.0mm² | 82A | 71A | 22.0-28.1mm | 2/3 |
| 5 | 25mm² | n×0.5 / n×1.0mm² | 109A | 94A | 27.5-35.2mm | 2/3 |
| 5 | 35mm² | n×0.5 / n×1.0mm² | 135A | 117A | 32.4-41.5mm | 2/3 |
Selection note: current values are listed at 30°C and depend on phase arrangement, core count and installation conditions.
Standards & References
Confirm project scope before ordering
- Charging referencesThe supplied H07BZ5-F cable materials reference EN 50620, IEC 62893, EN/IEC 60228 and IEC 61851-1.
- Material and test referencesThe source sheets list IEC 60811-404, IEC 60332-1-2 and related cable material references for the PUR and charging construction.
- Source-data reconciliationThe supplied sheets differ in bend-radius presentation.
Construction
Material and build-up

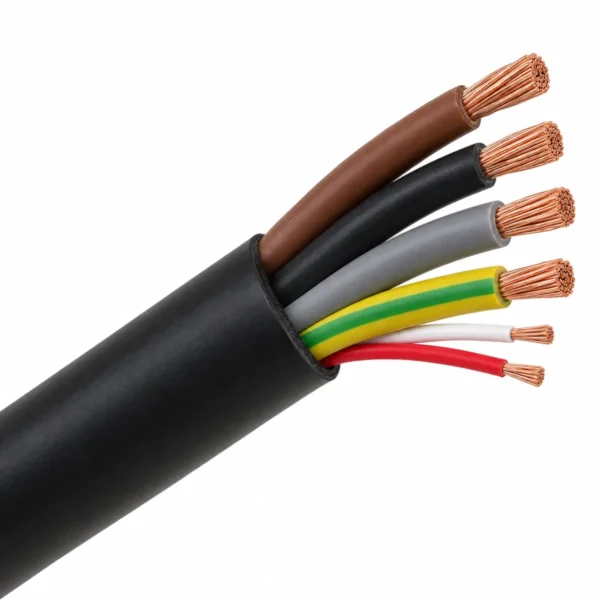

The H07BZ5-F cable construction uses flexible power cores and auxiliary control cores inside a PUR-HF sheath.
- Power conductors: Bare Class 5 flexible stranded copper according to EN/IEC 60228.
- Insulation: Rubber compound type EVI-2 around the H07BZ5-F cable cores.
- Control cores: Class 5 flexible copper with rubber insulation for control or pilot functions.
- Outer sheath: PUR-HF polyurethane, with the source material describing oil-resistance type O3 in one reference.
Request this cable.
Send the model, size, length and application.
