Flat FNGFLGOU-J (NGFLGOEU, NGFLGÖU-J) Flexible Rubber Festoon Cable for conveyors, trolleys
The NGFLGÖU-J cable ( is also spelled NGFLGOEU or NGFLGOU-J) is designed for applications where the cable is subject to bending and medium mechanical loads on a single plane, machine tooling, and in automation applications such as conveyors, trolleys and machine tools. An industrial cable, they are used across industries as diverse as food & beverage and mining.
- Voltage300/500V (600V)
- ConductorClass 6 extra fine stranded Copper
- InsulationEPR (Ethylene Propylene Rubber)
- Outer sheathCP Rubber (Chloroprene)
- No. of cores4 – 24
- Cross section1.5 – 120 mm2
- Cable height6.2 – 27.2 mm
- Weight200 – 6400 kg/km
The NGFLGÖU-J cable ( is also spelled NGFLGOEU or NGFLGOU-J) is designed for applications where the cable is subject to bending and medium mechanical loads on a single plane, machine tooling, and in automation applications such as conveyors, trolleys and machine tools. An industrial cable, they are used across industries as diverse as food & beverage and mining.
NGFLGOU-J festoon cable is suitable for operating temperatures of -40oC to +90oC (fixed) and -35oC to +90oC (moving). They are available from 4 cores (sizes 1.5mm2 to 240mm2) and up to 24 cores,.
Application & Features
Selection overview
Applicaton of FNGFLGOU-J (NGFLGOEU, NGFLGÖU-J) Flat Festoon Cable
The NGFLGÖU cable (also spelled NGFLGOEU) and NGFLGÖU-J cable is designed for applications where the cable is subject to bending and medium mechanical loads on a single plane It is to be used in dry, humid and wet locations as well as in the open-air as a flexible power and control cable for medium-level mechanical loads. This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines provided it is exposed to bending in only one plane.Cores grouped with individual groups sparated by a stay, Suitability: Machine tooling, and in automation applications such as conveyors, trolleys and machine tools. An industrial cable, they are used across industries as diverse as food & beverage and mining.
- The NGFLGOEU cable is for operating temperatures of -40oC up to +90oC (fixed) and -35oC to +90oC (moving). They are available from 4 cores (sizes 1.5mm2 to 240mm2) and up to 24 cores. See the specifications table below for full details.
- The flat configuration is space-saving, allowing for compact designs, with the multiple cores black with white numbering plus a green/yellow earth core.
- Flat configuration is space-saving, allowing for compact designs. Available from 4 cores (sizes 1.5mm2 to 240mm2) and up to 24 core.
- Oil resistant. For indoor and outdoor applications. Moisture, UV and ozone resistance. Flame-retardant according to IEC 60 332 part 1.
Specifications
Technical data
FNGFLGOEU, NGFLGOU Cable Technical and Feature
| Nominal voltage Uo/U | [V] | 300 / 500 volt | |
|---|---|---|---|
| Test voltage | [V]AC | 2000 | |
| Temperature range | in motion | -25°C till +60°C | |
| fixed | -40°C till +80°C | ||
| Operating temperature | short circuit | °C | 200 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | one time / fixed | x diameter | 3 |
| Bending radius | in motion | x diameter | 5 |
| Flammability | standard | EN 60332-1-2 |
FNGFLGOU-J (NGFLGOEU, NGFLGÖU-J) Cable Parameter
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WIDTH OF CABLE | NOMINAL HEIGHT OF CABLE | NOMINAL WEIGHT | TENSILE STRENGTH N |
|---|---|---|---|---|---|
| mm2 | mm | mm | kg/km | ||
| 4 | 1.5 | 17.5 | 6.2 | 200 | 90 |
| 4 | 2.5 | 21.1 | 7.5 | 280 | 150 |
| 4 | 4 | 26.1 | 9.1 | 410 | 240 |
| 4 | 6 | 29.1 | 9.5 | 600 | 360 |
| 4 | 10 | 33.1 | 11.1 | 800 | 600 |
| 4 | 16 | 37.8 | 12.9 | 1150 | 960 |
| 4 | 25 | 49.5 | 15.1 | 1700 | 1500 |
| 4 | 35 | 54.9 | 17.1 | 2200 | 2100 |
| 4 | 50 | 62.8 | 18.9 | 3000 | 1500 |
| 4 | 70 | 71.2 | 22.1 | 3910 | 4200 |
| 4 | 95 | 79.8 | 24.8 | 5300 | 5700 |
| 4 | 120 | 85.8 | 27.2 | 6400 | 7200 |
| 5 | 1.5 | 21.5 | 6.2 | 240 | 112 |
| 5 | 2.5 | 27.1 | 7.5 | 332 | 187 |
| 5 | 4 | 32.1 | 9.1 | 560 | 300 |
| 5 | 6 | 35.1 | 9.5 | 650 | 450 |
| 5 | 10 | 44.1 | 11.1 | 1135 | 750 |
| 5 | 16 | 49.8 | 12.9 | 1450 | 1200 |
| 5 | 25 | 59.8 | 16.1 | 2200 | 1875 |
| 7 | 1.5 | 29.1 | 6.2 | 360 | 157 |
| 7 | 2.5 | 34.9 | 7.5 | 520 | 262 |
| 7 | 4 | 41.9 | 9.1 | 700 | 420 |
| 7 | 6 | 42.1 | 9.5 | 850 | 630 |
| 7 | 25 | 79.7 | 16.1 | 2930 | 2625 |
| 7 | 35 | 88.2 | 17.1 | 3820 | 3675 |
| 8 | 1.5 | 31.5 | 6.2 | 370 | 180 |
| 8 | 2.5 | 39.1 | 7.5 | 550 | 300 |
| 10 | 1.5 | 39.9 | 6.5 | 460 | 225 |
| 10 | 2.5 | 47.9 | 8.1 | 680 | 375 |
| 12 | 1.5 | 47.1 | 6.5 | 620 | 270 |
| 12 | 2.5 | 56.1 | 8.1 | 800 | 450 |
| 16 | 1.5 | 4.2 | 6.5 | 900 | 360 |
| 24 | 1.5 | 55.1 | 12.5 | 1300 | 540 |
| 24 | 2.5 | 68.2 | 16.2 | 1480 | 900 |
Standards & References
Applicable standards
NGFLGÖU-J Standards:
- DIN VDE 0250-809
- DIN EN 60228 class 5 and 6 (construction)
- HD 308 S2 (core identification)
Construction
Material and build-up

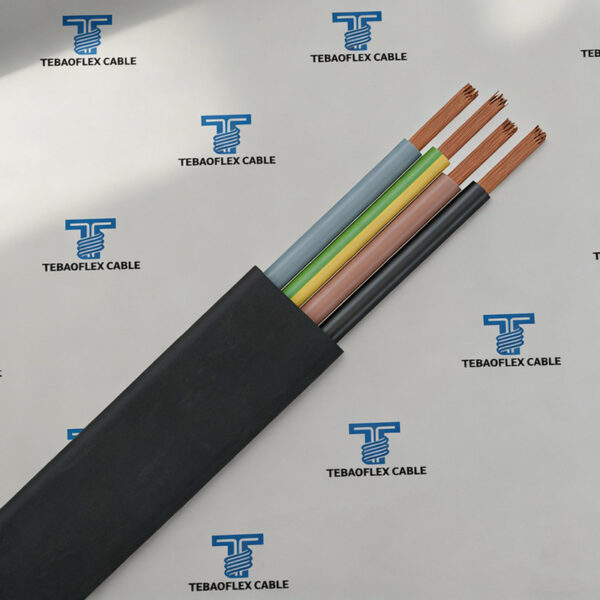

NGFLGÖU (NGFLGOU-J) Flat Festoon Trailing Cable
- Voltage: 300/500V (600V)
- Conductor: Class 6 extra fine stranded Copper
- Insulation: EPR (Ethylene Propylene Rubber)
- Screen: Non
- Outer Sheath: CP Rubber (Chloroprene)
- Core Identification:
DIN VDE 0293 part 308/HD 308 S2

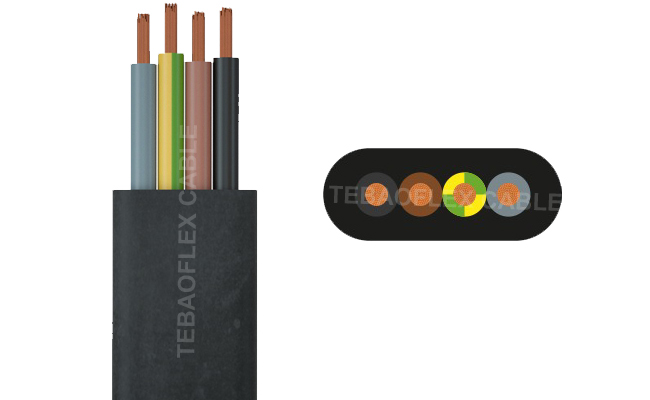

4 cores: green/yellow – brown – black – grey
5 cores: green/yellow – blue – brown – black – grey
≥ 5 cores: black with white printed numbers – green/yellow
More Details
Comparison and references
Differences of both NGFLGÖU and NGFLCGÖU Cable Structural
Both are flat reeling cables for moving equipment, the main distinction lies in the copper braided shield equipped on NGFLCGÖU.
1. Structural Differences
NGFLGÖU (Unshielded)
- Conductor: Bare copper, Class 6 extra-fine stranding for sizes ≤25mm²; Class 5 fine stranding for sizes ≥35mm².
- Insulation: EPR (Ethylene Propylene Rubber, 3GI3).
- Core layout: Cores arranged in parallel, no shielding layer.
- Outer sheath: CR (Chloroprene Rubber, 5GM3), black.

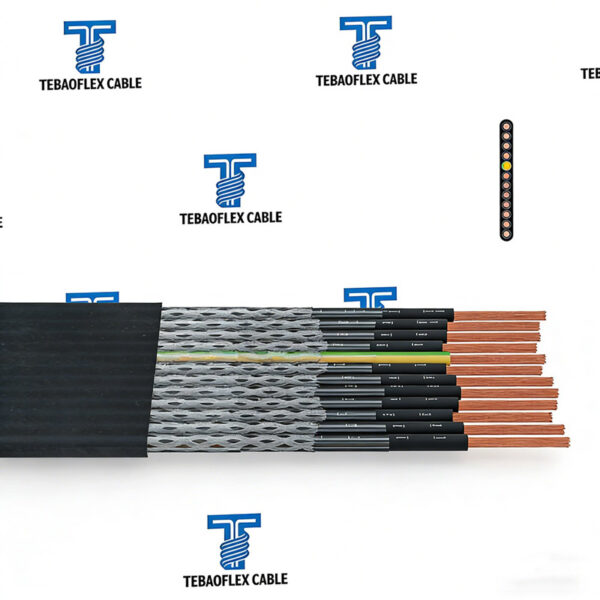

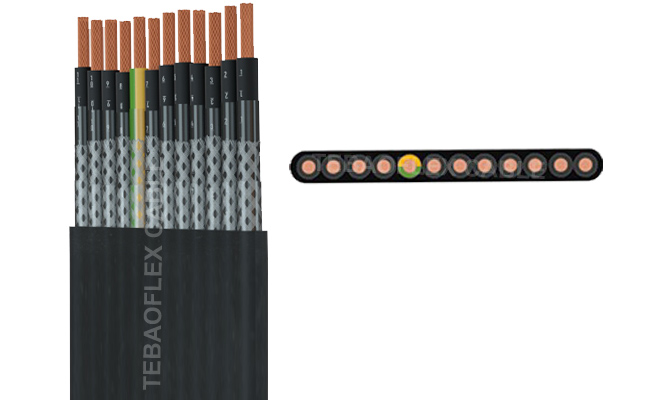

NGFLCGÖU (Shielded)
- Conductor, insulation and outer sheath are identical to NGFLGÖU.
- Shield: Tinned copper wire braid with coverage ≥80%~85%, for EMI/RFI suppression.
