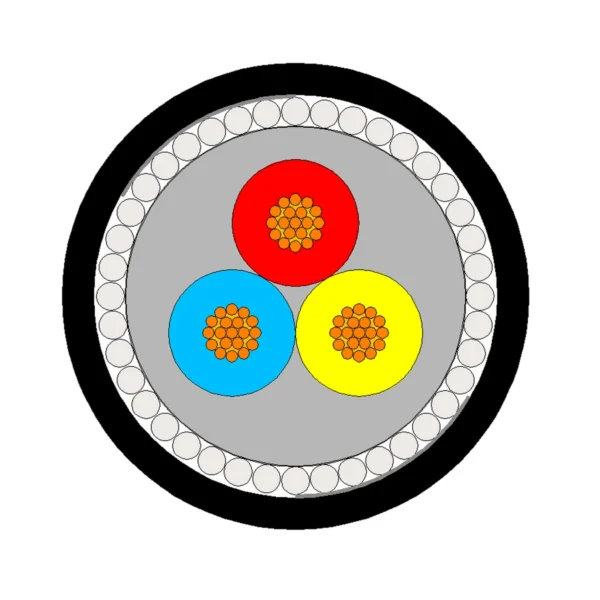

MGM 109 Type 3013 cross-section
  1. MGM 109 Type 3013 3.3kV Single Armoured Mining Power Cable
  2. MGM 109 Type 3013 cross-section

MGM 109 Type 3013 3.3kV Single Armoured Mining Power Cable

MGM 109 Type 3013 is a 1900/3300 V three-core fixed mining power cable with Class 2 copper, PVC insulation, unscreened cores and a single layer of galvanised steel wire armour, from 3×50 to 3×185 mm².

  • Rated / test voltage1900/3300 V / 10 kV
  • Cores × size3 × 50 to 3 × 185 mm²
  • ConductorCu, stranded, IEC 60228 Class 2
  • Core screenNone (unscreened)
  • Insulation / sheathPVC / special PVC
  • ArmourSingle galvanised steel wire
  • Overall diameter38.0 – 62.9 mm
  • Current at 25 °C168 – 382 A

Download MGM 109 Type 3013 datasheet (PDF)Full specifications

Request a QuoteSend EmailWhatsApp
Category:
Get Quote
Product overview

MGM 109 Type 3013 is the single-armoured 1900/3300 V member of the MGM 109 armoured cable family. It has three unscreened PVC-insulated Class 2 copper cores, a PVC bedding, one layer of galvanised steel wire armour and a special PVC sheath, built to the MGM 109 specification of the Turkish Hard Coal Enterprises MGM mining cable series.

It is a fixed-installation cable for supplying machines and equipment at 3.3 kV in deep mines where explosive gases and dust may accumulate and in surface installations. It is the lighter 3.3 kV option for horizontal routes, such as roadway feeders to section transformers and surface links between the mine substation and the winder or fan house.

Browse the MGM mining cable category for the other cables in the Turkish hard coal MGM series or download the MGM 109 Type 3013 datasheet (PDF).

Request a technical quotationView specifications

Application & Features

Selection overview

Not every 3.3 kV run in a mine hangs down a shaft. Surface links from the main substation to the winder house, ventilation fans and coal preparation plant, and underground feeders laid along level roadways to section transformers, carry little tensile load. On these routes a single layer of galvanised steel wire gives the crush and impact protection and the earth return path the circuit needs, without the weight and stiffness of a second layer.

Against the double-armoured Type 3023 of the same conductor size, Type 3013 is 4 to 6 mm smaller in diameter and 7 to 11% lighter, with a tighter bending radius (378 mm against 463 mm on 3×50 mm²). That makes long roadway pulls, hanger loads and drum logistics easier. Its size range, 3×50 to 3×185 mm², covers the mid-power feeders most often run at 3.3 kV.

  • Lighter 3.3 kV feederSingle galvanised steel wire armour for horizontal roadway and surface runs at 1900/3300 V.
  • Tighter bendingBending radius from 378 mm (3×50) to 567 mm (3×185), smaller than the double-armoured type.
  • Gassy and dusty workingsSpecified for deep mines where explosive gases and dust may accumulate, and for surface plant; mine approval is quoted per order.
  • Mid-power range3×50 to 3×185 mm², 168 to 382 A at 25 °C, for section transformers and large drives.

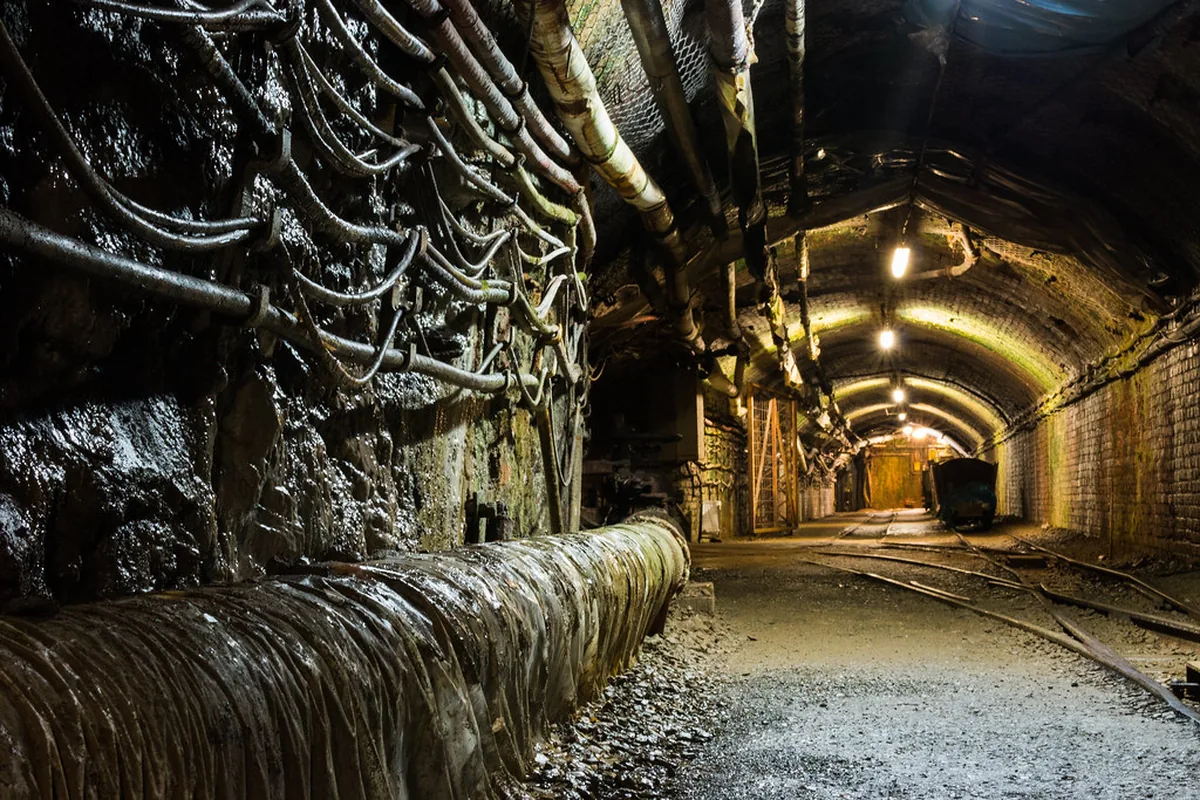

Mine roadway with cables and pipes run along the wall at the Rammelsberg mine museum, the kind of route along which MGM 109 Type 3013 armoured feeders are laid
Mine roadway with cables run along the wall at the Rammelsberg mine museum in Goslar. Fixed armoured feeders such as MGM 109 Type 3013 are laid along routes like this from the substation to the equipment. Photo: Markus Trienke, CC BY-SA 2.0, via Flickr.

Specifications

Technical data

Values from the current TEBAOFLEX MGM 109 Type 3013 datasheet. The final construction is confirmed on the approved datasheet for your order.

Electrical, mechanical and material data

Parameter Value
Rated voltage 1900/3300 V
Test voltage 10 kV
Conductor Electrolytic, stranded copper wire, IEC 60228 Class 2
Insulation PVC
Lay-up All cores laid up in contact with each other
Bedding PVC-based bedding compound
Armour Galvanized steel pliable armour (single galvanized steel wire armour)
Separator Galvanized steel tape, optional
Outer sheath Special PVC compound
Product family MGM 109 Type 3013
Related standard MGM 109
Application Fixed installation cable for supplying machines and equipment; deep mines where explosive gases and dust may accumulate, and surface installations
Availability Other sizes and designs available on request

MGM 109 Type 3013 dimensions and cable weights

Cable type Insul. mm Inner sheath mm Inner dia. mm Armour mm Outer sheath mm Min. OD mm Max. OD mm Bend radius mm Cable wt. kg/km Cu wt. kg/km
3×50 2.2 1.8 31.2 1/2.0 2.1 38.0 42.0 378 4100 1600
3×70 2.2 1.8 34.7 1/2.0 2.2 41.5 45.5 410 5150 2300
3×95 2.2 1.8 38.5 1/2.0 2.3 45.7 49.7 448 6150 3200
3×120 2.2 2.2 42.5 1/2.5 2.4 50.7 54.7 493 7750 4000
3×150 2.2 2.2 46.6 1/2.5 2.5 55.0 59.0 531 9000 5000
3×185 2.2 2.2 50.5 1/2.5 2.6 58.9 62.9 567 10500 6230

MGM 109 Type 3013 current rating and resistance

Cable type Current at 25 deg C, A Phase and earth conductors, ohm/km Armour, ohms/km
3×50 168 0.387 0.645
3×70 207 0.268 0.447
3×95 250 0.193 0.322
3×120 292 0.153 0.255
3×150 335 0.124 0.207
3×185 382 0.0991 0.165

Selection note: before ordering, ask our engineers to confirm the maximum conductor operating temperature, short-circuit rating and sheath colour for Type 3013. Current ratings are given at 25 °C. Sizes below 3×50 mm² or above 3×185 mm² are not listed; ask our engineers about them and about derating for your ambient temperature and grouping.

Standards & References

Applicable standards and compliance

  • Design specificationMGM 109, the armoured fixed-installation power cable specification in the Turkish Hard Coal Enterprises MGM mining cable series (MGM 101, 109, 110, 111, 112, 115 and 118).
  • Conductor referenceElectrolytic stranded copper conductors to IEC 60228 Class 2.
  • Voltage scope1900/3300 V rated and 10 kV test voltage.
  • ApprovalsMine-authority approvals, type-test reports and marking requirements are confirmed and quoted per order.

Construction

Material and build-up

Type 3013 is a round three-core cable. The PVC-insulated cores are laid up in contact with each other without individual metallic screens, bedded in PVC compound and covered by one layer of galvanised steel wire and a special PVC outer sheath.

  • Conductor: electrolytic stranded copper, IEC 60228 Class 2, 50 to 185 mm².
  • Insulation: PVC, 2.2 mm on all listed sizes.
  • Lay-up: three unscreened cores laid up in contact with each other.
  • Bedding: PVC-based bedding compound, 1.8 mm up to 3×95 mm² and 2.2 mm above.
  • Armour: one layer of galvanised steel wire, 2.0 or 2.5 mm, for crush and impact protection and an earth return path; a galvanised steel tape separator is optional.
  • Outer sheath: special PVC compound, 2.1 to 2.6 mm.

FAQ

Selection questions

What is MGM 109 Type 3013 and how does it differ from the other MGM 109 types?

Type 3013 is the 1900/3300 V, three-core, unscreened, single-armoured type in the MGM 109 armoured cable specification of the Turkish Hard Coal Enterprises MGM series. Type 3023 is the same cable with two armour layers, and Type 3123 adds a copper tape screen on each core as well. For 600/1000 V circuits see Type 1012/1013/1014 (single armour) and Type 1023/1024 (double armour).

When is single armour enough at 3.3 kV?

Single armour suits horizontal roadway runs on hangers, cable trays and surface trenches or ducts, where the cable does not carry its own weight over a long vertical drop. For shafts, steep inclines and routes exposed to heavy impact, choose the double-armoured Type 3023.

Can Type 3013 feed a moving machine?

No. It is a PVC-insulated, Class 2, wire-armoured fixed cable. It brings 3.3 kV to the section transformer or switchgear; from there flexible rubber trailing cables such as the MGM 111 and MGM 112 types in the MGM category connect the moving machines.

Which details are needed for a quotation?

Send the type (3013), conductor size, drum length and total length, the route (roadway, surface trench or duct), whether the optional galvanised steel tape separator is needed, sheath marking, and the mine authority whose approval or test reports you need.
