MGM 109 Type 3123 3.3kV Screened Armoured Mining Power Cable
MGM 109 Type 3123 is a 1900/3300 V three-core fixed mining power cable with Class 2 copper, PVC insulation, an individual copper tape screen on every core and two layers of galvanised steel wire armour.
- Rated / test voltage1900/3300 V / 6 kV
- Cores × size3 × 16 to 3 × 400 mm²
- ConductorCu, stranded, IEC 60228 Class 2
- Core screenCopper tape on each core
- Insulation / sheathPVC / special PVC
- ArmourDouble galvanised steel wire
- Overall diameter33.9 – 91.7 mm
- Current at 25 °C82 – 620 A
Download MGM 109 Type 3123 datasheet (PDF)Full specifications
MGM 109 Type 3123 is the screened member of the 1900/3300 V MGM 109 armoured cable family. It is a three-core PVC-insulated power cable with a copper-backed tape screen around each core and two layers of galvanised steel wire armour, built to the MGM 109 specification of the Turkish Hard Coal Enterprises MGM mining cable series.
It is a fixed-installation cable for supplying machines and equipment, such as the incoming feed to a section substation, a transformer or a conveyor drive, in deep mines where explosive gases and dust may accumulate and in surface installations. The screened cores make it the choice when the 3.3 kV circuit needs an earthed screen around every phase.
Browse the MGM mining cable category for the other cables in the Turkish hard coal MGM series or download the MGM 109 Type 3123 datasheet (PDF).
Application & Features
Selection overview

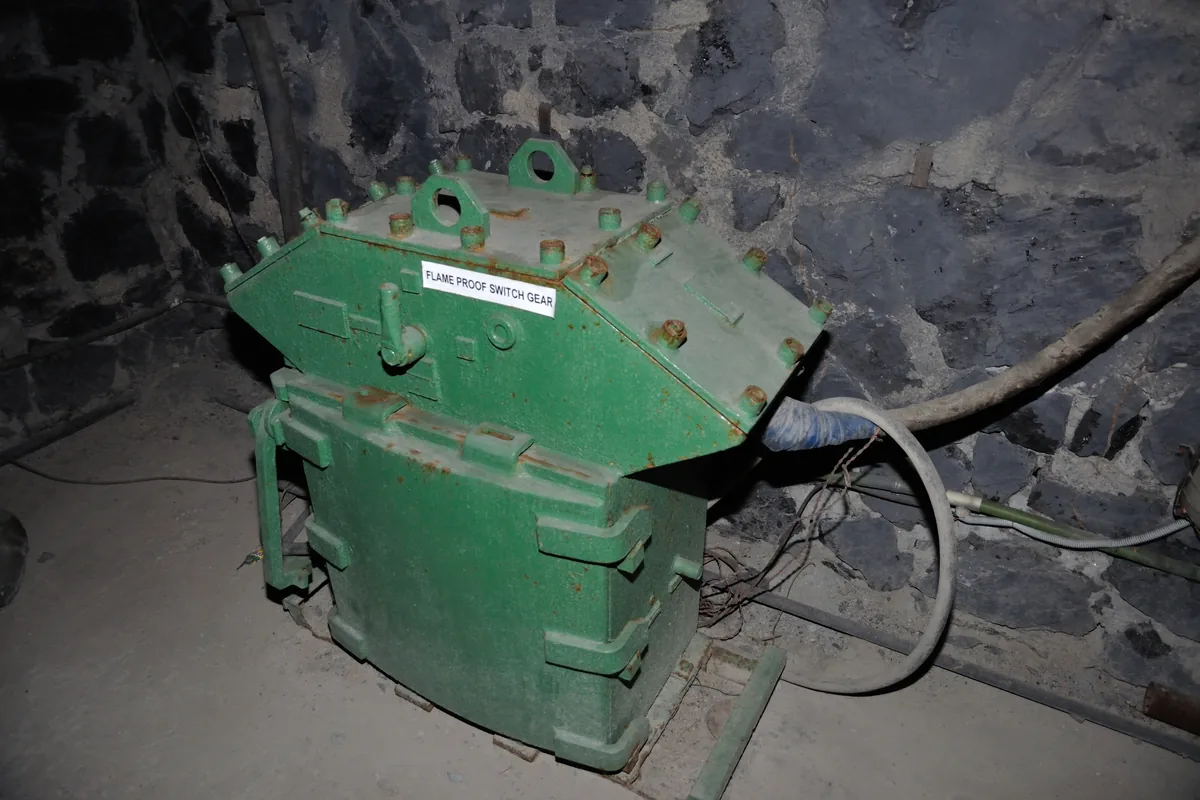

In a coal mine the 3.3 kV system usually runs from a shaft-bottom or district substation to section switchgear and transformers, then on to the high-power loads near the face. These runs are laid on hangers along roadways and may hang in shafts or inclines, so the cable has to carry its own weight and survive rock falls and knocks from haulage equipment. Type 3123 answers that with two layers of galvanised steel wire, which give tensile strength for vertical and inclined runs and a low-resistance earth return path.
The individual copper tape screen on each core is what separates Type 3123 from the unscreened Type 3023. Each phase sits inside its own earthed screen, so an insulation fault goes to earth within the core and can be detected by earth-leakage protection before it reaches a neighbouring phase. Choose it where the mine's electrical rules or the protection engineer ask for screened 3.3 kV cores, or where the cable runs close to signalling and communication lines.
- Screened 3.3 kV feederCopper-backed tape screen around each core for 1900/3300 V fixed circuits that need an earthed screen per phase.
- Double wire armourTwo layers of galvanised steel wire for shafts, inclines and roadways where tensile load and impact are high.
- Gassy and dusty workingsSpecified for deep mines where explosive gases and dust may accumulate, and for surface plant; mine approval is quoted per order.
- Wide size range3×16 mm² for small transformers up to 3×400 mm² for main 3.3 kV feeders, 82 to 620 A at 25 °C.
Specifications
Technical data
Values from the current TEBAOFLEX MGM 109 Type 3123 datasheet. The final construction is confirmed on the approved datasheet for your order.
Electrical, mechanical and material data
| Parameter | Value |
|---|---|
| Rated voltage | 1900/3300 V |
| Test voltage | 6 kV |
| Conductor | Electrolytic, stranded copper wire, IEC 60228 Class 2 |
| Insulation | PVC |
| Separator | Semiconductor layer |
| Screening | Individual copper-backed tape screen around each core |
| Lay-up | All cores laid up in contact with each other |
| Bedding | PVC-based bedding compound |
| Armour | Two layers of flexible galvanized steel wire armour |
| Optional separator | Galvanized steel tape |
| Outer sheath | Special PVC compound |
| Related standard | MGM 109 |
| Application | Fixed installation cable for supplying machines and equipment; deep mines where explosive gases and dust may accumulate, and surface installations |
| Availability | Other sizes and designs available on request |
MGM 109 Type 3123 dimensions and cable weights
| Cable type | Insul. mm | Inner sheath mm | Inner dia. mm | Armour mm | Outer sheath mm | Min. OD mm | Max. OD mm | Bend radius mm | Cable wt. kg/km | Cu wt. kg/km |
|---|---|---|---|---|---|---|---|---|---|---|
| 3×16 | 2.2 | 1.6 | 24.8 | 1/1.6 | 2.0 | 33.9 | 37.9 | 379 | 2500 | 465 |
| 3×25 | 2.2 | 1.6 | 27.4 | 1/1.6 | 2.0 | 36.5 | 40.5 | 405 | 3000 | 700 |
| 3×35 | 2.2 | 1.6 | 29.6 | 1/1.6 | 2.1 | 38.9 | 42.9 | 429 | 3500 | 1010 |
| 3×50 | 2.2 | 1.8 | 33.2 | 1/2.0 | 2.2 | 44.3 | 48.3 | 483 | 4600 | 1480 |
| 3×70 | 2.2 | 1.8 | 36.6 | 1/2.0 | 2.3 | 47.9 | 51.9 | 519 | 5550 | 2170 |
| 3×95 | 2.2 | 1.8 | 40.5 | 1/2.0 | 2.4 | 52.0 | 56.0 | 560 | 6800 | 3070 |
| 3×120 | 2.2 | 2.2 | 44.5 | 1/2.5 | 2.6 | 58.4 | 62.4 | 624 | 8550 | 3790 |
| 3×150 | 2.2 | 2.2 | 48.6 | 1/2.5 | 2.7 | 62.7 | 66.7 | 667 | 9800 | 4880 |
| 3×185 | 2.2 | 2.2 | 52.5 | 1/2.5 | 2.8 | 66.8 | 70.8 | 708 | 11350 | 6120 |
| 3×240 | 2.2 | 2.6 | 58.6 | 1/2.5 | 2.9 | 73.1 | 77.1 | 771 | 13950 | 8080 |
| 3×300 | 2.4 | 2.6 | 64.4 | 1/2.5 | 3.1 | 79.3 | 83.3 | 833 | 16700 | 10290 |
| 3×400 | 2.6 | 2.6 | 72.4 | 1/2.5 | 3.3 | 87.7 | 91.7 | 917 | 20750 | 13750 |
MGM 109 Type 3123 current rating and resistance
| Cable type | Current at 25 deg C, A | Phase and earth conductors, ohm/km | Armour, ohms/km |
|---|---|---|---|
| 3×16 | 82 | 1.15 | 1.53 |
| 3×25 | 108 | 0.727 | 0.97 |
| 3×35 | 135 | 0.524 | 0.699 |
| 3×50 | 168 | 0.387 | 0.516 |
| 3×70 | 207 | 0.268 | 0.357 |
| 3×95 | 250 | 0.193 | 0.257 |
| 3×120 | 292 | 0.153 | 0.204 |
| 3×150 | 335 | 0.124 | 0.165 |
| 3×185 | 382 | 0.0991 | 0.132 |
| 3×240 | 453 | 0.0754 | 0.101 |
| 3×300 | 523 | 0.0601 | 0.0801 |
| 3×400 | 620 | 0.0470 | 0.0627 |
Selection note: before sizing the feeder, ask our engineers to confirm the maximum conductor operating temperature, short-circuit rating and sheath colour for Type 3123, and the derating for your ambient temperature and grouping. Current ratings are given at 25 °C.
Standards & References
Applicable standards and compliance
- Design specificationMGM 109, the armoured fixed-installation power cable specification in the Turkish Hard Coal Enterprises MGM mining cable series (MGM 101, 109, 110, 111, 112, 115 and 118).
- Conductor referenceElectrolytic stranded copper conductors to IEC 60228 Class 2.
- Voltage scope1900/3300 V rated and 6 kV test voltage.
- ApprovalsMine-authority approvals, type-test reports and marking requirements are confirmed and quoted per order.
Construction
Material and build-up

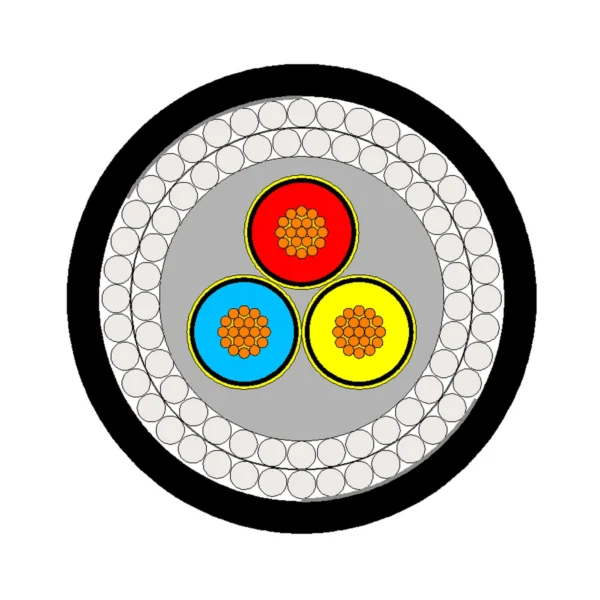

Type 3123 is a round three-core cable. Each PVC-insulated core carries a semiconductor layer and its own copper-backed tape screen. The three screened cores are laid up in contact with each other, and a PVC bedding separates them from two layers of galvanised steel wire under a special PVC sheath.
- Conductor: electrolytic stranded copper, IEC 60228 Class 2, from 16 to 400 mm², a compact stranded conductor for fixed installation.
- Insulation: PVC, 2.2 mm up to 3×240 mm², 2.4 mm on 3×300 mm² and 2.6 mm on 3×400 mm².
- Semiconductor separator: semiconducting layer over the insulation that evens out the electric field under the metallic screen.
- Core screen: copper-backed tape around each core, giving every phase its own earthed screen.
- Bedding: PVC-based bedding compound, 1.6 to 2.6 mm, which fills the lay-up and forms a round bed for the armour.
- Armour: two layers of flexible galvanised steel wire for tensile strength, impact protection and an earth return path; a galvanised steel tape separator is available as an option.
- Outer sheath: special PVC compound, 2.0 to 3.3 mm depending on size.
FAQ
Selection questions
What is MGM 109 Type 3123 and how does it differ from the other MGM 109 types?
MGM 109 is the armoured fixed-installation power cable specification in the Turkish Hard Coal Enterprises MGM series. Type 3123 is its 1900/3300 V three-core version with a copper tape screen on every core and two layers of steel wire armour. Type 3023 has the same voltage and double armour but no core screens, and Type 3013 is unscreened with a single armour layer. The 600/1000 V versions are the double-armoured Type 1023/1024 and the single-armoured Type 1012/1013/1014.
When should I choose the screened Type 3123 instead of Type 3023?
Choose Type 3123 when the mine's electrical rules, the protection scheme or the equipment supplier ask for an earthed screen on each 3.3 kV core, for example on feeders to transformers and section switchgear, or where the cable shares a roadway with signalling and telephone lines. Where unscreened 3.3 kV cable is accepted, Type 3023 is 2 mm smaller in diameter for the same conductor size.
Is Type 3123 a trailing cable?
No. It is PVC insulated, Class 2 stranded and steel wire armoured, so it is laid on hangers or in trays and left in place. Machines that move, such as shearers and continuous miners, need flexible rubber trailing cables; see the MGM 111 and MGM 112 types in the MGM category.
Which details are needed for a quotation?
Send the type (3123), conductor size, drum length and total length, the installation route (roadway, shaft or incline, surface), whether the optional galvanised steel tape separator is required, sheath marking, and the mine authority whose approval or test reports you need. We return the approved datasheet with the quotation.
Request this cable.
Send the type (3123), conductor size, drum and total length, installation route, optional steel tape separator and mine approval requirement.
