BAULIFT B101/B102/B103 Construction Hoist Cable, 0.6/1 kV Power + Control

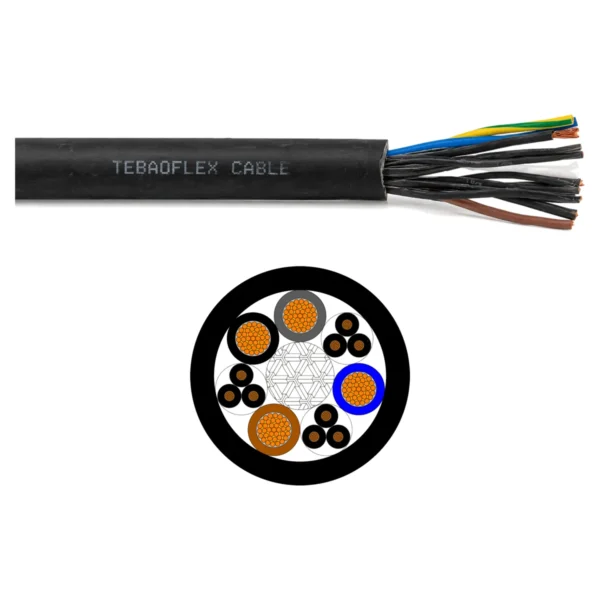

BAULIFT is a flexible hybrid cable for construction hoists that carry people and material: 0.6/1 kV power cores and 300/500 V numbered control cores under one cold-flexible, UV-resistant sheath, built in three versions for drag, carriage and spring-drum feeds.
- Power cores0.6/1 kV
- Control cores300/500 V, white numbered
- ConductorBare copper, extra-fine strands
- Flexing temperature-10 °C to +80 °C
- Bending radius10 × cable diameter
- VersionsB101 drag, B102 carriage, B103 spring drum
- Outer diameter13.0 mm to 38.0 mm
- SheathBlack, cold-flexible, UV resistant
Download BAULIFT B101/B102/B103 datasheet (PDF)Full specifications

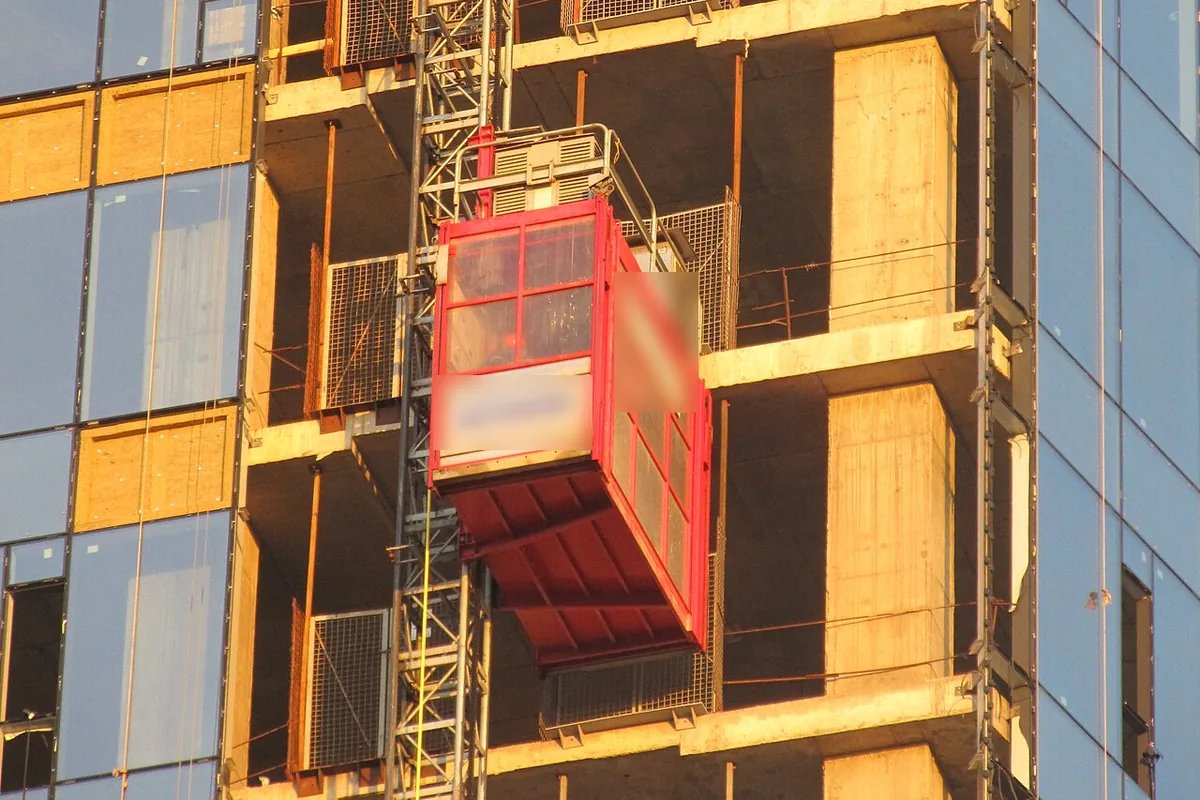

BAULIFT is a hybrid power and control cable for vertical construction hoists, the rack-and-pinion lifts that carry workers and material up a building under construction. One cable brings the 0.6/1 kV supply to the hoist drive and carries the 300/500 V control circuits for landing calls, limit switches and door interlocks, so the car needs only one moving connection to the ground.
The range is built in three versions for the three common ways of feeding a hoist car: B101 as a drag cable drawn from a drum through the load platform, B102 as a carriage cable fed at the center of the mast for taller towers, and B103 for spring-loaded drums on high buildings. All three share extra-fine bare copper conductors and a black, cold-flexible sheath that resists UV on open sites.
Browse the Elevator & Lift Traveling Cable category for related cables or download the BAULIFT B101/B102/B103 datasheet (PDF).
Application & Features
Selection overview
Construction hoists run on a mast tied to the building, and the car has to be fed with power and control signals over the full travel. On lower towers, up to about 150 m, the cable is drawn up from a drum through the load platform (B101) or stored in a cable basket. On taller buildings the free-hanging weight becomes too much, so the cable runs on a cable trolley or carriage at the center of the tower (B102), or is reeled on a spring-loaded drum (B103). Separate copper screening of the control cores is available where the hoist control is sensitive to interference from the drive.
For permanent passenger and freight elevators in finished buildings, see our elevator traveling cables, such as the 4xCAT6 traveling cable for cars that also need network links.
- Power and control in one0.6/1 kV supply cores and numbered 300/500 V control cores share one sheath.
- Three feed versionsDrag cable, carriage cable and spring-drum cable for different tower heights.
- Cold-flexible sheathFlexes from -10 °C and resists UV on open construction sites.
- Optional screeningSeparate copper screen over the control cores where the hoist control needs it.
Specifications
Technical data
Nominal values for BAULIFT constructions. The final construction, including the version for your feed system, is confirmed on the TEBAOFLEX datasheet issued with your quotation.
Electrical, thermal and material data
| Parameter | Value |
|---|---|
| Conductor | Bare copper, extra-fine high-flexibility conductors |
| Power-core voltage | 0.6/1 kV |
| Control-core voltage | 300/500 V |
| Control-core identification | Continuous white numbering |
| AC test voltage, 50 Hz | Power cores 3000 V; control cores 1500 V |
| Temperature range | Flexing: -10 °C to +80 °C |
| Minimum bending radius | 10 × cable diameter |
| Sheath | Special low-temperature flexible plastic sheath, black, UV resistant |
| Mechanical support | B101 drag cable; B102 carriage support braid; B103 spring-loaded drum |
| Carriage sheath (B102) | PUR, resistant to wear, oil, hydrolysis and microbes |
| Option | Separate copper screening of control cores |
BAULIFT B101: drag cable application
| Cross-section | Copper weight kg/km | Outer diameter mm | Weight kg/km |
|---|---|---|---|
| 5 G 2.5 + 10 x 1.0 | 220.0 | 20.0 | 306.0 |
| 5 G 2.5 + 11 x 1.0 | 225.6 | 20.0 | 320.0 |
| 3 G 4 + 7 x 1.0 | 184.0 | 17.4 | 360.0 |
| 4 G 6 + 9 x 1.0 | 330.0 | 20.5 | 555.0 |
| 4 G 6 + 10 x 1.0 | 340.0 | 21.0 | 575.0 |
| 4 G 6 + 15 x 1.0 | 388.0 | 22.0 | 625.0 |
| 4 G 10 + 10 x 1.0 | 480.0 | 25.0 | 870.0 |
| 4 G 16 + 6 x 1.0 | 700.0 | 26.1 | 1250.0 |
| 4 G 16 + 10 x 1.0 | 710.0 | 29.0 | 1300.0 |
| 4 G 16 + 15 x 1.0 | 760.0 | 31.5 | 1380.0 |
| 4 G 16 + 1 x 2.5 + 4 x 1.0 | 830.0 | 28.5 | 1460.0 |
BAULIFT B102: carriage application
| Cross-section | Copper weight kg/km | Outer diameter mm | Weight kg/km |
|---|---|---|---|
| 4 G 16 + 1 x 2.5 + 2 x 2 x 1.0 | 830.0 | 28.5 | 1080.0 |
| 4 G 16 + 1 x 2.5 + 2 x 2 x 1.0 | 787.0 | 28.5 | 1080.0 |
| 4 G 25 + 1 x 2.5 + 2 x 2 x 1.0 | 1176.0 | 33.4 | 1500.0 |
| 4 G 35 + 4 x 2.5 + 2 x 2 x 1.0 + 1 x 1.0 | 1500.0 | 38.0 | 1850.0 |
BAULIFT B103: spring-driven drum application
| Cross-section | Copper weight kg/km | Outer diameter mm | Weight kg/km |
|---|---|---|---|
| 4 G 2.5 + 3 x 1.0 | 125.0 | 13.0 | 230.0 |
| 4 G 2.5 + 3 x 1.0 | 125.0 | 15.3 | 280.0 |
Selection note: Choose the version by how the hoist car is fed: B101 for drag or basket feeds up to about 150 m, B102 for carriage feeds on taller towers, B103 for spring-loaded drums. Before ordering, ask our engineers to confirm the permissible tensile load and free-hanging length for your lift height, and the core layout of your hoist control.
Standards & References
Applicable standards and compliance
- RatingsPower cores 0.6/1 kV and control cores 300/500 V, tested at 3000 V and 1500 V AC, 50 Hz.
- ConductorExtra-fine bare copper strands for continuous flexing on drums, carriages and in baskets.
- Core identificationControl cores with continuous white numbering for fast connection in the hoist control cabinet.
- ApprovalsHoist-maker approvals and cable markings for your order are confirmed and quoted per order.
Construction
Material and build-up

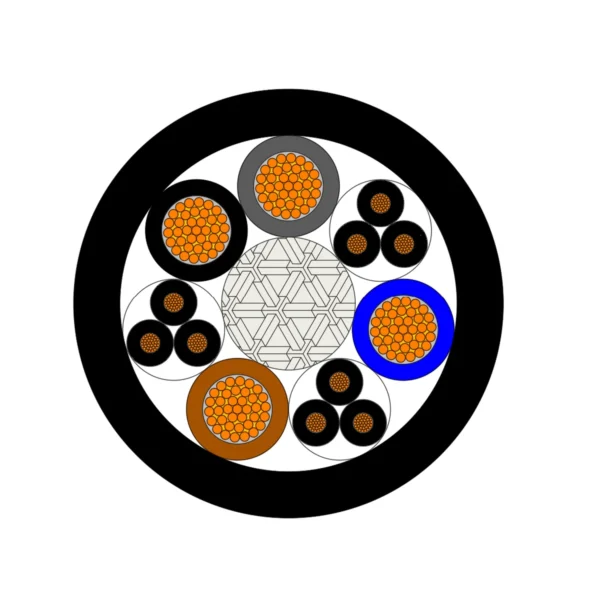

BAULIFT is a composite cable: power cores and numbered control cores are stranded together under one flexible outer sheath, with the support element chosen for the feed system.
- Conductors: bare copper, extra-fine strands for high flexibility on drums and in baskets.
- Power cores: rated 0.6/1 kV for the hoist drive supply, with a protective earth core in the G constructions.
- Control cores: rated 300/500 V with continuous white numbering; separate copper screening is available.
- Support: B101 is drawn as a drag cable; B102 carries a support braid for carriage feeds; B103 is wound on a spring-loaded drum.
- Outer sheath: black, cold-flexible plastic sheath, UV resistant; the B102 carriage version uses a PUR sheath that resists wear, oil, hydrolysis and microbes.
FAQ
Selection questions
What is a construction hoist cable?
It is the flexible cable that feeds a construction hoist car with power and control signals as the car travels up and down the mast. BAULIFT combines 0.6/1 kV power cores and 300/500 V numbered control cores in one cable, so the car needs only one moving connection.
What is the difference between B101, B102 and B103?
They are built for different feed systems. B101 is a drag cable drawn from a drum through the load platform and is used up to about 150 m lift height. B102 is a carriage version fed at the center of the tower for greater heights. B103 is wound on a spring-loaded drum for hoists on high buildings.
Can the cable be used in cold weather?
Yes. The sheath is a cold-flexible compound rated for flexing from -10 °C to +80 °C, and it resists UV on open sites. For colder sites, tell us the lowest working temperature when you request a quotation.
Is a screened version available?
Yes. The control cores can be supplied with a separate copper screen where the hoist control needs protection from interference from the drive.
What should I send for a quotation?
Send the hoist type and feed system (drag, basket, carriage or spring drum), lift height, number and size of power and control cores, screening requirement, lowest site temperature and length. Our engineers confirm the construction on the datasheet issued with your quotation.
Request this cable.
Send the feed system, lift height, power and control core layout, screening requirement and length, and we will confirm the construction and quote.
