MGM 115 Type 7S 660/1100V Screened Mining Cable with 3-Core Pilot
MGM 115 Type 7S 660/1100 V flexible mining cable with three braid-screened EPR phase cores, a bare copper earth and an unscreened pilot unit of three thin control cores, under a heavy-duty chloroprene sheath, 3×50 to 3×120 mm².
- Rated / test voltage660/1100 V / 2.5 kV
- Phase sizes3×50 to 3×120 mm²
- Core arrangement3 phase + 1 earth + 3 pilot
- Screened cores3 phase cores only
- Pilot unit3×4 to 3×10 mm², unscreened
- Insulation / sheathEPR / chloroprene
- Overall diameter48.5 – 74.5 mm
- Weight4450 – 8300 kg/km
MGM 115 Type 7S is a 660/1100 V flexible trailing cable with three screened phase cores, one bare copper earth conductor and an unscreened pilot unit made of three thinner insulated cores. It is built to the MGM 115 specification of the Turkish Hard Coal Enterprises MGM mining cable series, and it is the Type 7 variant for machines that need more than one pilot or control conductor.

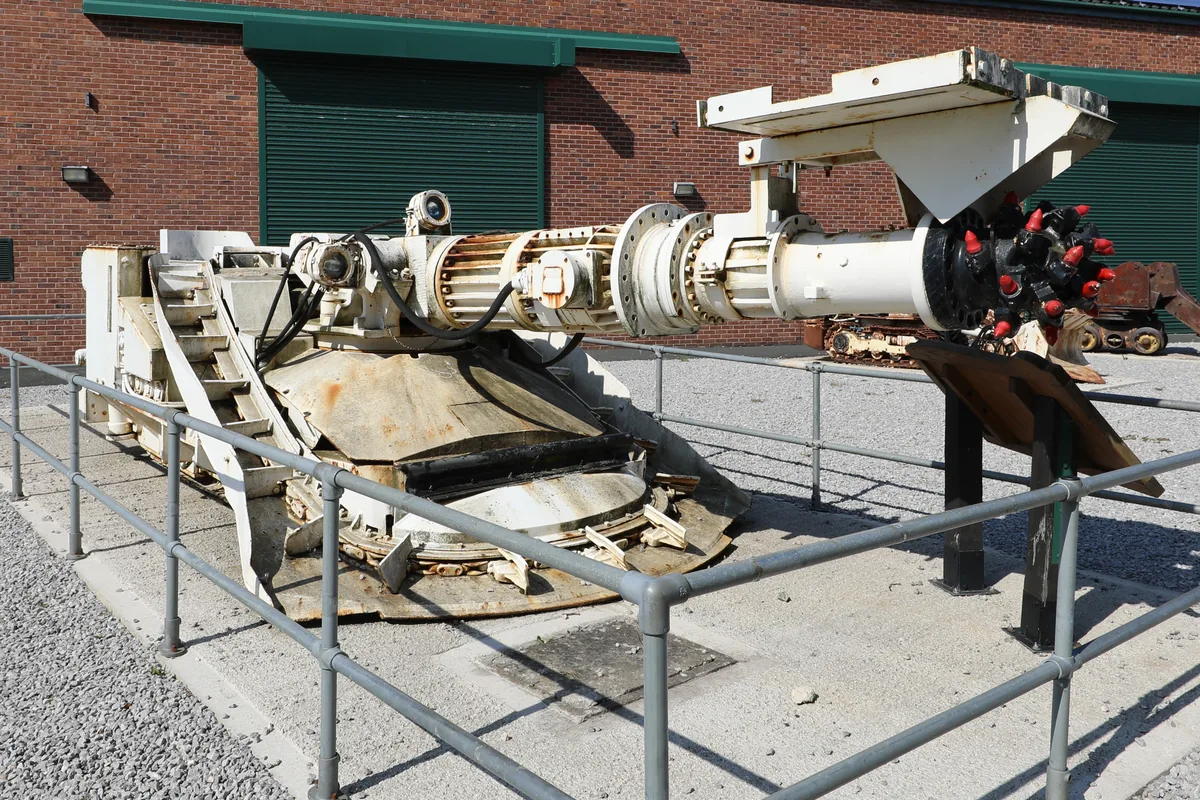

The cable supplies excavating and crushing machines and other heavy mobile equipment, in deep mines where explosive gases and dust can accumulate and on the surface. It is made in four larger sizes, 3×50 mm² to 3×120 mm², with a 3×4, 3×6 or 3×10 mm² pilot unit, for loads of 170 A to 295 A continuous at 25 °C.
Browse the MGM mining cable category for the other cables in the Turkish hard coal MGM series or download the MGM 115 Type 7S datasheet (PDF).
Application & Features
Selection overview
Large mobile machines such as roadheaders, shovels, crushers and loaders often need more than a single pilot wire between the machine and the gate-end box or mobile substation. One conductor may carry the earth-continuity monitoring loop, while others carry a remote stop, an interlock or a status signal back to the supply. Type 7S puts three pilot cores in one unscreened unit inside the power cable, so the machine can be connected with one trailing cable instead of a power cable plus a separate control cable.
The three phase cores keep their tinned copper/nylon braid screens, which are laid in contact with the bare earth so that damage to a power core becomes an earth fault and trips the supply. The pilot unit is unscreened and sized for control current, not for power, which keeps the cable diameter close to the single-pilot designs. Where one screened pilot is required instead, see MGM 115 Type 7M; for a single unscreened pilot, see Type 7.
- Three pilot coresAn unscreened pilot unit with three 4, 6 or 10 mm² cores carries monitoring and control circuits in the power cable.
- Screened phase coresTinned copper/nylon braid on each phase core, in contact with the bare earth conductor along the whole length.
- Heavy machine sizes3×50 to 3×120 mm² phase conductors, 170 A to 295 A continuous and 200 A to 355 A intermittent at 25 °C.
- Gassy and dusty workingsDesigned for deep mines where explosive gases and dust can accumulate, and for surface plant; approval is quoted per order.
Specifications
Technical data
Values from the current TEBAOFLEX MGM 115 Type 7S datasheet. The final construction is confirmed on the approved datasheet for your order.
Electrical, mechanical and material data
| Parameter | Value |
|---|---|
| Rated voltage | 660/1100 V |
| Test voltage | 2.5 kV |
| Conductor | Stranded, tinned copper wire, IEC 60228 Class 5 |
| Insulation | EPR; ground core is not insulated |
| Phase-core screen | Tinned copper / nylon braid |
| Pilot unit | Unscreened unit with three thinner cores |
| Lay-up | Three screened phase cores and one unscreened pilot unit laid in contact with the bare earth conductor |
| Separator | Colored textile tape for core identification |
| Bedding | Rubber-based bedding compound |
| Outer sheath | Heavy-duty chloroprene compound |
| Core arrangement | 3 screened phase cores + 1 bare copper earth core + 3 unscreened pilot cores |
| Application | Excavating, crushing machines and equipment; deep mines where explosive gases and dust can accumulate, and surface use |
Technical data: MGM 115 Type 7S
| Parameter | Unit | 3×50+25+3×4 | 3×70+35+3×6 | 3×95+50+3×6 | 3×120+50+3×10 |
|---|---|---|---|---|---|
| Phase cores / cross-section | mm² | 3×50 | 3×70 | 3×95 | 3×120 |
| Phase stranding | mm | 396/0.40 | 360/0.50 | 475/0.50 | 608/0.50 |
| Phase conductor diameter | mm | 9.75 | 11.60 | 12.75 | 15.10 |
| Phase insulation thickness | mm | 1.7 | 1.8 | 2.0 | 2.4 |
| Earth core / cross-section | mm² | 1×25 | 1×35 | 1×50 | 1×50 |
| Earth stranding | mm | 196/0.40 | 276/0.40 | 396/0.40 | 396/0.40 |
| Earth conductor diameter | mm | 6.75 | 8.00 | 9.75 | 9.75 |
| Pilot unit / cross-section | mm² | 3×4 | 3×6 | 3×6 | 3×10 |
| Pilot unit stranding | mm | 56/0.30 | 84/0.30 | 84/0.30 | 80/0.40 |
| Pilot conductor diameter | mm | 2.60 | 3.50 | 3.50 | 4.40 |
| Pilot insulation thickness | mm | 1.4 | 1.5 | 1.5 | 1.5 |
| Min. overall diameter | mm | 48.5 | 55.1 | 62.4 | 68.0 |
| Max. overall diameter | mm | 53.8 | 60.8 | 68.1 | 74.5 |
| Min. bending radius | mm | 485 | 548 | 613 | 671 |
| Max. pulling tension | kgf | 1120 | 1570 | 2000 | 2000 |
| Approx. cable weight | kg/km | 4450 | 6080 | 6650 | 8300 |
| Copper weight | kg/km | 2200 | 3150 | 4250 | 4800 |
| Continuous current rating at 25 °C | A | 170 | 205 | 250 | 295 |
| Intermittent current rating at 25 °C | A | 200 | 250 | 310 | 355 |
| Phase conductor | Ω/km | 0.393 | 0.277 | 0.21 | 0.164 |
| Pilot conductors | Ω/km | 5.47 | 3.6 | 3.6 | 2.09 |
| 3 screens and earth in parallel | Ω/km | 0.5 | 0.34 | 0.28 | 0.26 |
| Nom. reactance at 50 Hz | Ω/km | 0.098 | 0.095 | 0.094 | 0.092 |
| Nom. reactance at 60 Hz | Ω/km | 0.118 | 0.114 | 0.113 | 0.11 |
| Min. insulation resistance at 20 °C | MΩ/km | 285 | 260 | 250 | 250 |
| 3-phase voltage drop at full load | mV/A/m | 0.84 | 0.61 | 0.47 | 0.38 |
Selection note: before ordering, ask our engineers to confirm the conductor operating temperature, sheath colour and colour code of the three pilot cores, together with the drum length and any marking your mine requires.
Standards & References
Applicable standards and compliance
- Design specificationMGM 115 Type 7S, a flexible trailing cable type in the MGM 115 specification of the Turkish Hard Coal Enterprises MGM mining cable series.
- Conductor referenceStranded tinned copper conductors to IEC 60228 Class 5 (flexible), for phase, earth and pilot cores.
- Voltage scope660/1100 V rated voltage and 2.5 kV test voltage.
- ApprovalsMine-authority approvals, type-test reports and marking requirements are confirmed and quoted per order.
Construction
Material and build-up

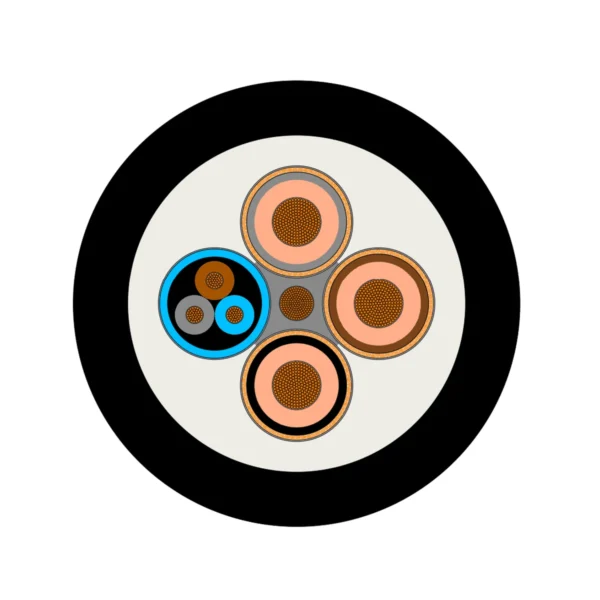

MGM 115 Type 7S is a round, non-armoured cable. Three screened phase cores and one unscreened pilot unit are laid up in contact with a bare copper earth conductor. The pilot unit holds three thinner insulated cores. A rubber bedding and a heavy-duty chloroprene sheath complete the cable.
- Phase conductors: stranded tinned copper, IEC 60228 Class 5, 50 mm² (396/0.40 mm) to 120 mm² (608/0.50 mm).
- Insulation: EPR on the phase cores (1.7 mm to 2.4 mm) and on the pilot cores (1.4 mm to 1.5 mm); the earth core is not insulated.
- Phase-core screens: tinned copper/nylon braid over each of the three phase cores.
- Earth core: bare copper, unscreened, 25 mm² to 50 mm², in contact with the three phase screens.
- Pilot unit: three unscreened cores of 4, 6 or 10 mm² tinned Class 5 copper, grouped as one unit in the lay-up.
- Separator: coloured textile tape used for core identification.
- Bedding: rubber-based bedding compound that fills the lay-up and keeps the cable round.
- Outer sheath: heavy-duty chloroprene compound against abrasion, tearing and crushing.
FAQ
Selection questions
What is MGM 115 Type 7S and how does it differ from Type 7 and Type 7M?
Type 7S is the MGM 115 flexible cable with three screened phase cores, a bare earth and an unscreened unit of three pilot cores. The standard MGM 115 Type 7 has a single unscreened pilot core, and Type 7M has a single pilot that is screened like the phase cores. Type 11, Type 14 and Type 16 also have screened phase cores, but with a single pilot rather than a pilot unit: Type 11 adds one unscreened pilot core, Type 14 one pilot and one earth core, and Type 16 one pilot and two earth cores; none of the MGM 115 types is armoured.
What are the three pilot cores used for?
They connect control and protection circuits between the machine and its supply: typically an earth-continuity or pilot monitoring loop, plus remote stop, interlock or status signals. Three cores let you run these circuits in the trailing cable itself. The cores are sized 4 to 10 mm² with a conductor resistance of 5.47 to 2.09 Ω/km, so check the loop resistance your monitoring relay allows against the cable length.
Which details are needed for a quotation?
Send the cable type (for example 3×95+50+3×6), the length per drum and number of drums, the machine and its supply voltage, what the pilot cores will carry, any core colour or sheath marking requirement, and the mine authority whose approval or test report you need. We return the confirmed datasheet with the quotation.
Is Type 7S available below 50 mm²?
The current datasheet covers 3×50, 3×70, 3×95 and 3×120 mm² only. For smaller machines, Type 7 and Type 7M start at 3×16 mm². Other MGM designs are listed in the MGM mining cable category; ask us if you need a Type 7S construction outside the listed sizes.
