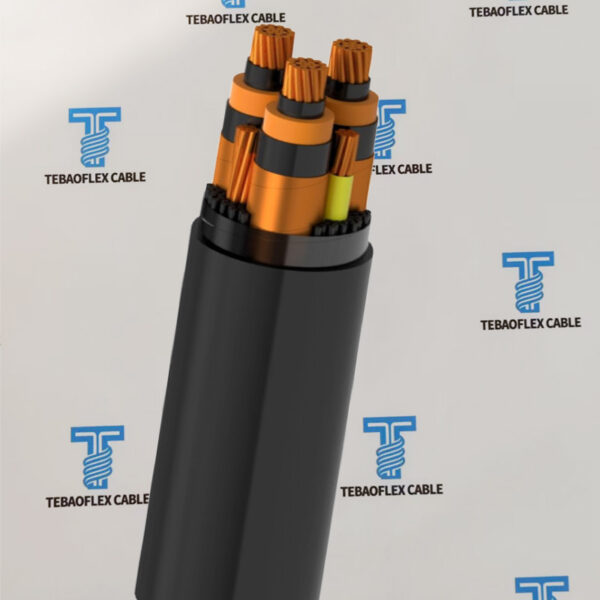

tebaoflex-Type-Mp-GC-Cable-2

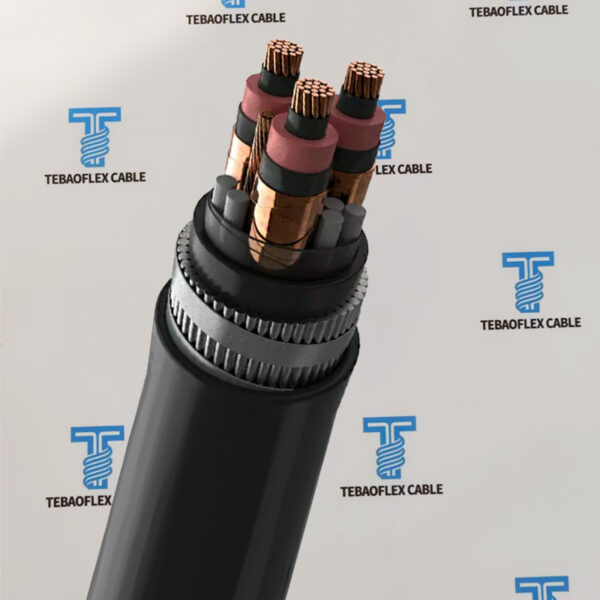

tebaoflex-armoured- Type-Mp-GC-Cable-3
  1. tebaoflex-Type-Mp-GC-Cable
  2. tebaoflex-Type-Mp-GC-Cable-2
  3. tebaoflex-armoured- Type-Mp-GC-Cable-3

5kV 8kV 15kV Type MP-GC 3/C XLPE/PVC or EPR/CPE Mining Power Feeder Cable

Designed for heavy-duty underground mining applications

  • Voltage5kV, 8kV, 15kV
  • InsulationEPR or XLPE, 100% level, 90°C
  • JacketCPE or PVC
  • StandardICEA S-66-524 (NEMA WC8)
  • Temperature-20° to +90°C
  • Size range4 AWG – 500
  • Nominal outside dimension1.42 – 3.15 in.
  • Approx. weight1224 – 9405 lbs. per 1,000 ft.

Full specificationsRequest a quotation

Request a QuoteSend EmailWhatsApp
Category: Tags: , , ,
Get Quote
Product overview

5kV~15kV Type MP-GC 3C Mining Power Feeder Cable Feature and Application

Type MP-GC mining power feeder cable is for use in high voltage connections between power distribution systems in mines, mine tunnels, shafts and mine load centers systems that require an internal ground check conductor, for added safety. It is suitable for installation in ducts, troughs, tray or direct burial in non-flexing applications. The cable is for applications up to 15,000 volts and temperatures from -20° to +90°C.

Type MP-GC is a premium rubber-sheathed power cable specially engineered for underground mining operations and mobile mining equipment. Featuring high-grade rubber insulation and outer sheath, this cable possesses exceptional resistance to abrasion, oil, grease, chemicals, moisture and low temperature. It maintains excellent flexibility even under continuous dragging, twisting and repeated bending during field operation.

Type MP-GC Mining Power Cable Construction and Feature

  • Insulation is Ethylene Propylene Rubber (EPR) or Cross Linked Polyethylene (XLPE) 100% Insulation level,90°C
  • 3 conductor phase core +2 conductor ground check core with insulation.
  • Robust rubber insulation and sheath deliver outstanding abrasion, oil and chemical resistance
  • Excellent flexibility for frequent bending, dragging and mobile equipment use
  • Compliant with ICEA mining cable standards, reliable for harsh mine environments
  • High mechanical strength, resistant to impact, crush and tear damage
  • Superior electrical performance with stable voltage transmission
Request a technical quotationView specifications

Application & Features

Selection overview

TEBAOFLEX Heavy-duty Mining Cable Application Case

As a professional heavy-duty type mp-gc mining rubber cable manufacturer Tebaoflex Cable Group specializes in custom manufacturing. All our Type MP-GC mining cable products are strictly manufactured and tested in full compliance with internationally recognized standards including ICEA and VDE. We adhere to rigorous quality control procedures throughout every production process to ensure reliable performance, excellent durability and stable quality of each cable.

All products support factory direct supply, third-party inspection and OEM bulk order service for global industrial clients

  • Industrial-Grade Reinforced DurabilityBuilt with braided reinforcing layer and thickened heavy rubber sheath, resisting heavy mechanical extrusion, sharp friction, tensile damage and industrial slag erosion, perfectly fit mining equipment, port cranes, construction machinery and workshop mobile power systems.
  • Superior Ultra-high FlexibilityOptimized stranded conductor structure and soft rubber compound design, support frequent bending, twisting and dragging movement without core breakage or sheath cracking.
  • Extreme Wide Temperature Weather ResistanceStable electrical and physical performance under -40°C frigid alpine cold to +90°C high-temperature heat exposure, anti-ultraviolet and outdoor ageing for long-term open-air outdoor deployment.
  • Full International Safety CertifiedStrictly compliant with IEC, VDE and EU unified industrial cable norms, passed full electrical safety, flame retardant and environmental protection tests, zero leakage risk, safe for industrial power transmission and signal synchronous operation.
Longwall-Miner-mining-cable
mining-trailing-cable-tebaoflex
Dragline-Mining-Cable

Specifications

Technical data

5kV, 8kV, 15kV 3/C EPR/CPE Mining Power Feeder Cable

Size AWG Power Conductors Power Conductors Grounding Conductors Grounding Conductors Jacket Thickness mils Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity*
No. of Wires per Conductor Insulation Thickness mils Size AWG No. of Wires per Conductor 40°C Ambient Temp
5kV Type MP-GC 3/C EPR/CPE
4 7 90 8 7 110 1.42 1441 122
2 7 90 6 7 110 1.56 1827 159
1 19 90 5 7 110 1.65 2168 184
1/0 19 90 4 7 110 1.76 2602 211
2/0 19 90 3 7 110 1.88 3010 243
4/0 19 90 1 19 140 2.14 4190 321
250 37 90 1/0 19 140 2.23 4825 355
350 37 90 2/0 19 140 2.47 6062 435
500 37 90 4/0 19 140 2.7 8427 536
8kV Type MP-GC 3/C EPR/CPE
4 7 115 8 7 110 1.54 16.8 122
2 7 115 6 7 110 1.66 1919 159
1 19 115 5 7 110 1.78 2507 184
1/0 19 115 4 7 110 1.89 2660 211
2/0 19 115 3 7 110 2.03 3257 243
4/0 19 115 1 19 140 2.28 4382 321
250 37 115 1/0 19 140 2.31 4965 355
350 37 115 2/0 19 140 2.58 6484 435
500 37 115 4/0 19 140 2.88 8857 536
8kV Type MP-GC 3/C EPR/CPE
2 7 175 6 7 110 1.98 2517 164
1 19 175 5 7 110 2.11 3023 187
1/0 19 175 4 7 110 2.18 3296 215
2/0 19 175 3 7 110 2.3 3679 246
4/0 19 175 1 19 140 2.54 5146 325
250 37 175 1/0 19 140 2.61 5618 359
350 37 175 2/0 19 140 2.80 7055 438
500 37 175 4/0 19 170 3.15 9405 536

5kV, 8kV, 15kV 3/C XLPE/PVC Mining Power Feeder Cable

Size AWG Power Conductors Power Conductors Grounding Conductors Grounding Conductors Jacket Thickness mils Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity*
No. of Wires per Conductor Insulation Thickness mils Size AWG No. of Wires per Conductor 40°C Ambient Temp
5kV Type MP-GC 3/C XLPE/PVC
4 7 90 8 7 110 1.42 1224 122
2 7 90 6 7 110 1.56 1653 159
1 19 90 5 7 110 1.65 1950 184
1/0 19 90 4 7 110 1.76 2200 211
2/0 19 90 3 7 110 1.88 2721 243
4/0 19 90 1 19 140 2.14 3845 321
250 37 90 1/0 19 140 2.23 4321 355
350 37 90 2/0 19 140 2.47 5652 435
500 37 90 4/0 19 140 2.7 7721 536
8kV Type MP-GC 3/C XLPE/PVC
4 7 115 8 7 110 1.54 1366 122
2 7 115 6 7 110 1.66 1727 159
1 19 115 5 7 110 1.78 2174 184
1/0 19 115 4 7 110 1.89 2656 211
2/0 19 115 3 7 110 2.03 2895 243
4/0 19 115 1 19 140 2.28 3983 321
250 37 115 1/0 19 140 2.31 4484 355
350 37 115 2/0 19 140 2.58 5827 435
500 37 115 4/0 19 140 2.88 7893 536
8kV Type MP-GC 3/C XLPE/PVC
2 7 175 6 7 110 1.98 2021 164
1 19 175 5 7 110 2.11 2503 187
1/0 19 175 4 7 110 2.18 2658 215
2/0 19 175 3 7 110 2.3 3066 246
4/0 19 175 1 19 140 2.54 4369 325
250 37 175 1/0 19 140 2.61 4875 359
350 37 175 2/0 19 140 2.80 6412 438
500 37 175 4/0 19 170 3.15 8610 536

Standards & References

Applicable standards

  • StandardsConforms to ICEA S-66-524 (NEMA WC8).

Construction

Material and build-up

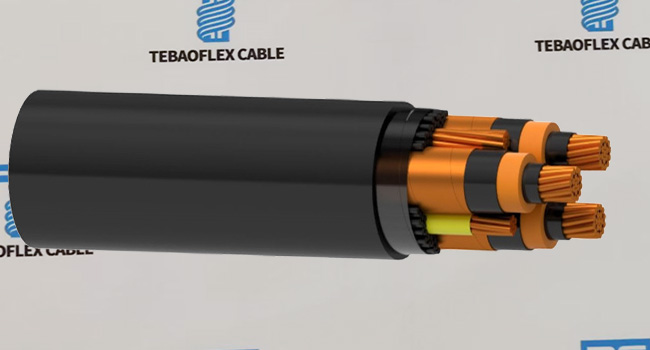

Type MP-GC 3 Conductor EPR 100% Insulation Level 90°C Mining Power Feeder Cable

tebaoflex-Type-Mp-GC-mining-Cable-1

  • Voltage: 5kV, 8kV, 15kV
  • Conductor: stranded annealed copper enveloped in a strand shield.
  • Insulation: Ethylene Propylene Rubber (EPR)
  • Assembly: semi-conducting tape and a metallic tape shield.
  • Grounding Check conductors: consisting of two bare grounds and one 8-gauge insulated ground check that are cabled together in the interstices of the power conductors and fillers are added to make round.a single faced rubber filled tape is applied overlapped.
  • Sheath: Jacket is Chlorinated Polyethylene (CPE).
  • Standards: Conforms to ICEA S-66-524 (NEMA WC8).
  • Application: Connection between units of mine distribution system not exceeding the rated voltage when installed in duct, conduit or open air. For direct burial in wet and dry locations. Recommended maximum continuous conductor temperature is 90°C

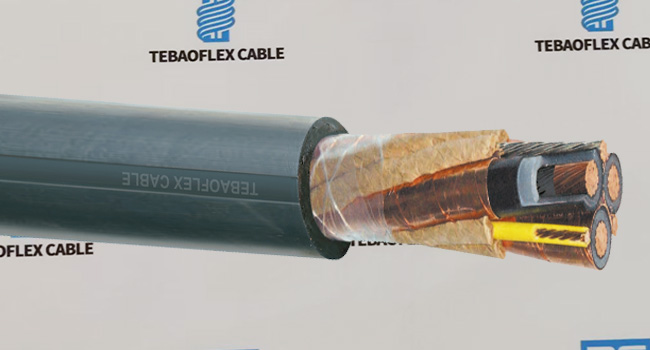

Type MP-GC 3 Conductor XLPE 100% Insulation Level 90°C Mining Power Feeder Cable

tebaoflex-Type-Mp-GC-mining-Cable-2

  • Voltage: 5kV, 8kV, 15kV
  • Conductor: stranded annealed copper enveloped in a strand shield.
  • Insulation: Cross Linked Polyethylene (XLPE).
  • Assembly: semi-conducting tape and a metallic tape shield.
  • Grounding Check conductors: consisting of two bare grounds and one 8-gauge insulated ground check that are cabled together in the interstices of the power conductors and fillers are added to make round.a single faced rubber filled tape is applied overlapped.
  • Sheath: Polyvinyl chloride (PVC).
  • Standards: Conforms to ICEA S-66-524 (NEMA WC8).
  • Application: Connection between units of mine distribution system not exceeding the rated voltage when installed in duct, conduit or open air. For direct burial in wet and dry locations.Recommended maximum continuous conductor temperature is 90°C

More Details

Comparison and references

Differences between Type MP-GC EPR/CPE and Type MP-GC XPE/PVC

1）Electrical Performance

  • EPR/CPE:
    • EPR has excellent dielectric strength, lower dielectric loss, better for high voltage (8–15 kV) long‑term stability.
    • More stable at high temperature, less prone to partial discharge.
  • XLPE/PVC：
    • XLPE also has good insulation, but higher dielectric loss than EPR.
    • Suitable for 5–15 kV, but less ideal for long‑term high‑voltage, high‑load operation.

2）Mechanical & Environmental Resistance

  • EPR/CPE (Heavy‑Duty)
    • CPE jacket: superior abrasion, oil, chemical, acid/alkali resistance.
    • Excellent flexibility, low‑temperature resistance (‑20°C).
    • High resistance to tear, crush, impact in heavy mining conditions.
    • Thermoset，does not melt at 90°C，long service life.
  • XLPE/PVC (Standard‑Duty)
    • PVC jacket：good abrasion and oil resistance, but inferior to CPE.
    • Poor low‑temperature flexibility，becomes stiff/brittle below 0°C.
    • Lower resistance to chemicals, oils, and heavy mechanical stress.
    • Thermoplastic softens at high temperature，easier to deform under heavy load.

3）Application Range

  • Type MP-GC EPR/CPE Mining Power Feeder Cable：
    • Heavy‑duty underground mining, mobile equipment, frequent dragging/bending.
    • Wet, corrosive, oily mine environments.
    • Long‑term high‑voltage, high‑load circuits.
  • Type MP-GC XLPE/PVC Mining Power Feeder Cable:
    • Stationary/semi‑portable mine power distribution, ducts, direct burial, non‑flexing.
    • Dry or moderately wet conditions, less mechanical abuse.
    • Cost‑effective for fixed installations.
