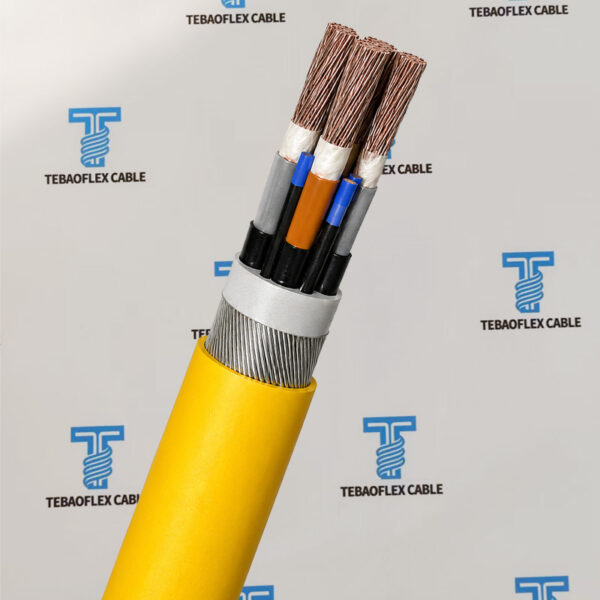

Heavy-Duty NSSHCGEÖU(Z) Reinforced Version Mining Cable
NSSHCGEÖU(Z) hevay-dury reinforced version mining cable, the (Z)— Reinforced: High-density double-layer copper–steel braid + optional aramid reinforcement
- Rated voltage0.6/1 kV
- ConductorFlexible tinned copper, Cl. 5
- InsulationRubber EPR type 3GI3
- ScreenSteel/copper braid
- Outer sheathRubber PCP type 5GM5, yellow
- Size range3×16 – 3×95/50
- Outer diameter42.5 – 62.5 mm
- Cable weight (approx.)2770 – 7230 kg/km
Product overview
NSSHCGEÖU(Z) hevay-dury reinforced version mining cable, the (Z)— Reinforced: High-density double-layer copper–steel braid + optional aramid reinforcement
Application & Features
Selection overview
NSSHCGEÖU(Z) Cable Feature
- Ozone and moisture resistance
- outdoor/indoor use
Specifications
Technical data
NSSHCGEÖU(Z) Mining Cable Technical Details
| Temperature range: | |
|---|---|
| Fixed installation: | – 40°C + 80°C |
| Flexible installation: | – 25°C + 60°C |
| Min,bending radius: | 4xd |
| Nominal voltage: | Uo/U 0.6/1 kV |
| Test voltage: | 3000 V |
| Operating voltage: | A.C. Uo/U = 0.7/1.2 kV max. D.C. Uo/U = 0.9/1.8 kV max. |
| Tensile strength static: | 15 N/mm2 (please check min. bending radius applications) |
| Fire resistance: | DIN VDE 0482, EN/IEC 60332-1-2 |
| Oil resistance: | DIN VDE 0473, part 811-2-1, par. 10, EN 60811-2-1, IEC EN 60811-1-2 |
Ordering Information of NSSHCGEÖU(Z) Cable
| Size | No. of cores x cross section | Outer- Ø | Copper weight | Cable weight approx. | Tensile strength |
|---|---|---|---|---|---|
| AWG(no.*) | n x mm2 | ca. mm ± 10% | kg/km | kg/km | N |
| 6 | 3×16+3x(1.5 ST KON + 16/3 KON) | 42.5 | – | 2770 | 55000 |
| 4 | 3×25/16 KON +3x(1.5 ST KON/1.5 ÜL KON) | 43.5 | – | 3050 | 55000 |
| 2 | 3×35/16 KON +3x(1.5 ST KON/1.5 ÜL KON) | 43.5 | – | 3265 | 55000 |
| 1 | 3×50/25 KON +3x(1.5 ST KON/1.5 ÜL KON) | 49.5 | – | 4490 | 80000 |
| 2/0 | 3×70/35 KON +3x(1.5 ST KON/1.5 ÜL KON) | 54.7 | – | 5640 | 80000 |
| 3/0 | 3×95/50 KON +3x(1.5 ST KON/1.5 ÜL KON) | 62.5 | – | 7230 | 110000 |
Standards & References
Applicable standards
- ConductorCl. 5, acc to IEC 60228, DIN VDE 0295
- Fire resistanceDIN VDE 0482, EN/IEC 60332-1-2
- Oil resistanceDIN VDE 0473, part 811-2-1, par. 10, EN 60811-2-1, IEC EN 60811-1-2
Construction
Material and build-up

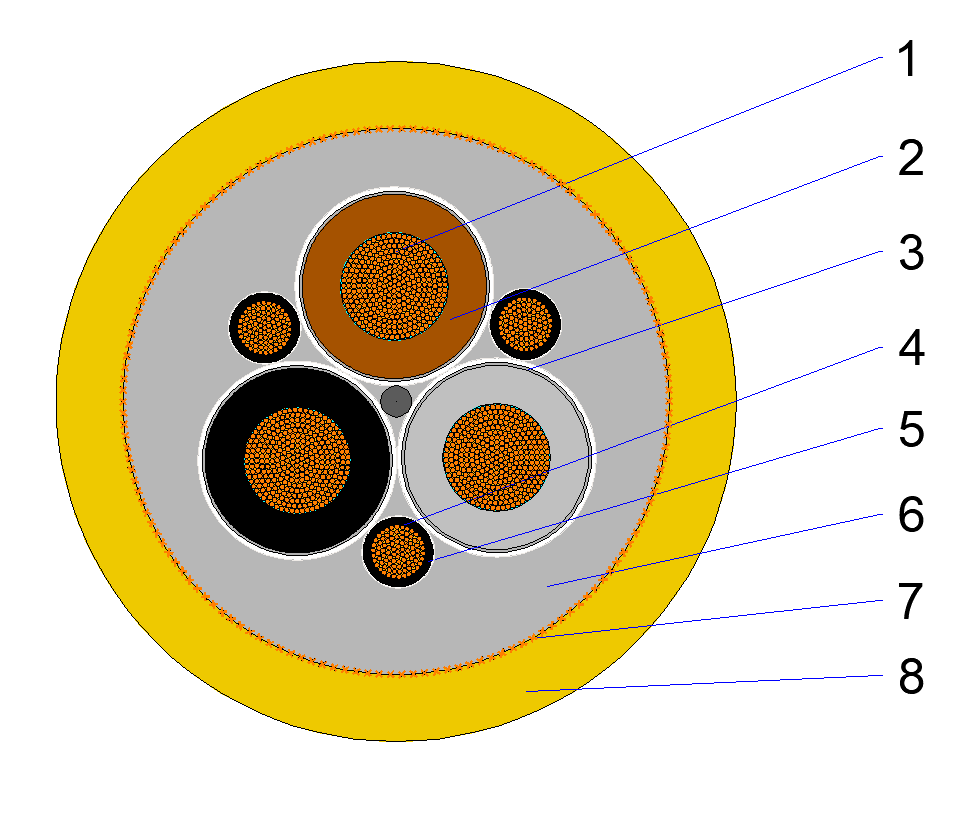

0.6/1kV NSSHCGEÖU(Z) Mining Cable Construction
- Conductor: flexible tinned copper conductor Cl. 5, acc to IEC 60228, DIN VDE 0295
- Insulation: rubber EPR type 3GI3
- Outer semi-conductive layer: semi-conducting rubber compound
- Monitoring earth conductor: tinned copper wires laying concentric around each control cores
- Monitor earth semi-conductive layer: semi-conducting rubber compound
- Inner sheath: rubber EPR type GM1b
- Screen: steel/copper braid vulcanized between inner and outer sheath
- Outer sheath: yellow (similar to RAL 1021), rubber PCP type 5GM5
More Details
Comparison and references
What's NSSHCGEÖU(V) vs NSSHCGEÖU(Z) Reinforced Version Cable
1. Construction Differences (Key Points)
Conductor & Stranding
- (V): Class 5 tinned copper, standard stranding
- (Z) Reinforced: Class 5 FS (extra-fine stranded): higher flexibility, better torsion resistance
Pilot / Monitoring Cores
- (V): Standard copper–steel composite pilot cores
- (Z) Reinforced: Reinforced steel braid + thicker semiconductive layer → better crush/impact resistance
Armour / Concentric Earth (Critical Difference)
- (V): Copper–steel wire braid, standard density
- Tensile strength: ~15 N/mm²
- (Z) Reinforced: High-density double-layer copper–steel braid + optional aramid reinforcement
- Tensile strength: ~30 N/mm² (double)
- Higher torsion resistance: ±50°/m vs standard ±25°/m
| Parameter | NSSHCGEÖU(V) Standard | NSSHCGEÖU(Z) Reinforced |
|---|---|---|
| Rated voltage | 0.6/1kV | 0.6/1kV |
| Tensile strength | ~15 N/mm² | ~30 N/mm² (double) |
| Torsion capability | ±25°/m | ±50°/m (double) |
| Min. bending radius | 10×OD | 8×OD (tighter bend) |
| Reeling speed | Standard | Up to 160 m/min (high speed) |
| Impact/crush resistance | High | Extreme |
2. Applications
NSSHCGEÖU(V) – Standard Use
- Coal cutters, shearers, light–medium LHDs
- Normal trailing, frequent bending, moderate tension
- Underground mines, wet/oily/dusty areas, occasional shallow water
NSSHCGEÖU(Z) Reinforced – Heavy-Duty Use
- Heavy LHDs, TBMs, long-wall equipment
- High-speed drum reeling, tight sheaves, vertical shafts
- Extreme tension, torsion, crush/impact loads
- Long service life required; less downtime for replacement
3. Short Summary
- (V) = Standard tensile & torsion, general mining mobile equipment.
- (Z) Reinforced = Double tensile + double torsion + tighter bending, for heavy/high-speed mining machinery.
