NTSCGECWOEU Coal Cutter Cable VDE 0250 Mining Cable

The NTSCGECWOEU Coal Cutter Cable is a medium-voltage flexible mining trailing cable designed for coal cutter machines (shearers), longwall mining systems, and underground mobile mining equipment.

It is manufactured according to DIN VDE 0250 Part 813, a German standard specifically developed for high-mechanical-stress mining cables used in:

Underground coal mining
Continuous mining systems
Mobile cutting machines
High-load cable chain systems
- Continuous bending and twisting
- High tensile load
- Crushing from mining machinery
- Abrasion from rock and coal dust
- Moisture and underground humidity
- Oil and chemical exposure

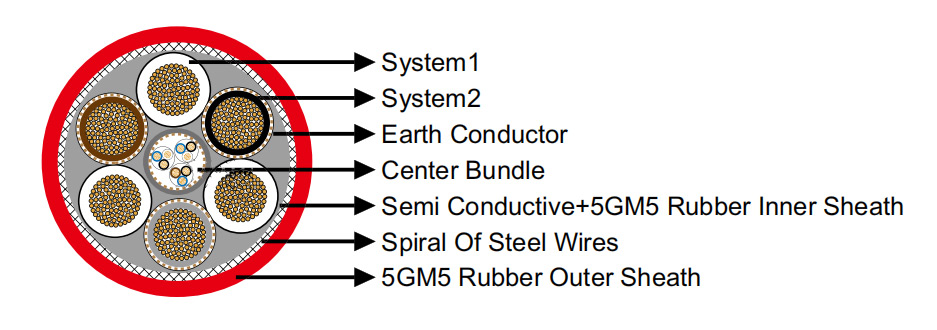

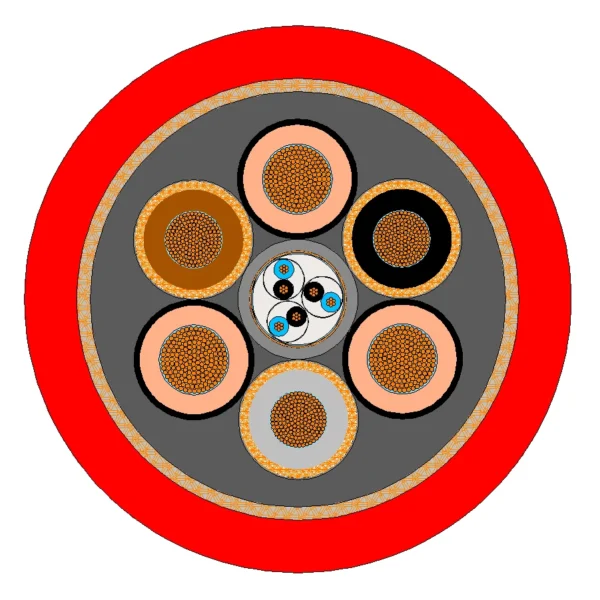

Cable Construction (NTSCGECWOEU)

The NTSCGECWOEU cable uses a multi-layer rubber-insulated mining cable structure designed for extreme underground conditions.

tebaoflex-NTSCGECWOEU-Coal-Cutter

1. Conductor System

Flexible stranded tinned copper conductor
Class 5 extra-flexible design (IEC 60228)
High fatigue resistance under continuous movement

2. Semiconductive Layer System

Inner semiconductive layer over conductor
Outer semiconductive screen over insulation

3. Insulation Layer

High-performance EPR rubber insulation (Type 3GI3)
High dielectric strength
Heat resistant up to 90°C

4. Earth & Monitoring System

Depending on design version:

Split earth conductors in outer interstices
Concentric earth system

Optional:

Pilot cores for control systems
Monitoring conductors for safety circuits

5. Mechanical Reinforcement Layer

High-strength reinforcing tape
Optional anti-torsion textile braid
Heavy-duty bedding compounds

6. Inner Sheath

Rubber compound (GM1b type)
Oil resistant
Moisture resistant
Shock absorption layer

7. Outer Sheath

Heavy-duty rubber compound (5GM5)
Flame retardant
Abrasion resistant
Oil, ozone, chemical resistant
