YKGYyn-żo 0.6/1 kV PVC Mining Cable with Inner Sheath
YKGYyn-żo is a 0.6/1 kV PVC mining power cable with a green-yellow protective conductor and separate PVC inner and outer sheaths.
- Solid Class 1 or stranded Class 2 copper; 10 mm² is Class 2.
- 3-, 4- and 5-core configurations, 1.5–10 mm².
- Operating range: -30 to +70 °C.
- Minimum installation temperature: -5 °C.
- Minimum bending radius: 10 × OD.
- Test voltage: 3.5 kV.
Send the full configuration, installation conditions, length and quantity for a technical quotation.
YKGYyn-żo Mining Cable with PVC Inner and Outer Sheaths
YKGYyn-żo is a 0.6/1 kV mining power cable with copper conductors, special PVC core insulation, a PVC inner sheath and a yellow flame-retardant PVC outer sheath. A green-yellow protective conductor is included in every listed three-, four- and five-core construction.
This construction supplies electrical equipment in strip, open-pit and underground mines without an explosion hazard, including the specified underground excavation sites with class A coal dust hazard. The intended location, circuit arrangement and cable route should be checked together before a replacement is selected.
The separate inner sheath is a defining part of YKGYyn-żo. Even where another PVC mining cable has the same voltage and conductor schedule, its outside diameter, gland fit and handling weight may differ. Use the table for this exact model when planning entries, supports and cable lengths.
- Specify the whole build: retain the PVC inner and outer sheath requirement in the purchase description.
- Match the protective core: the total core count includes one green-yellow conductor.
- Check installation conditions: use a minimum bend radius of 10 × OD and an installation temperature of at least -5 °C.
The listed range spans 1.5–10 mm², with the 10 mm² configurations using Class 2 stranded copper. The Specifications section provides all fifteen dimensional configurations and the reference electrical values for route assessment. Explore the broader mining cable range or open the YKGYyn-żo datasheet to prepare a technical quotation.
Construction

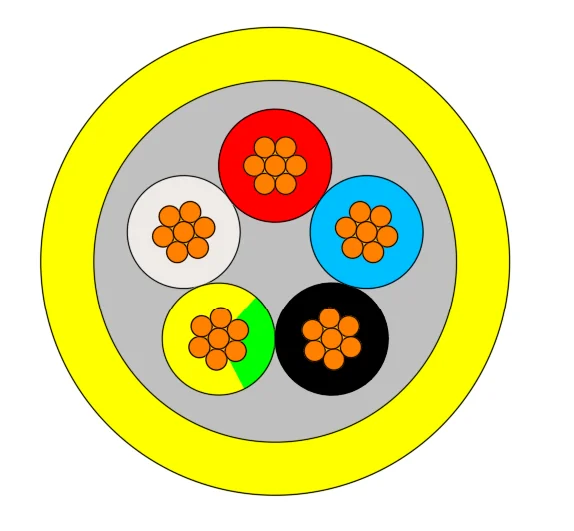

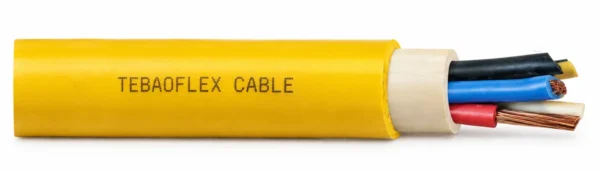

YKGYyn-żo has a distinct PVC inner sheath between the insulated conductor assembly and the yellow outer sheath. The supplied five-core cross-section shows the green-yellow protective core with four other insulated conductors.
| Component | Construction | Selection note |
|---|---|---|
| Conductors | Copper, solid Class 1 or stranded Class 2 to PN-EN 60228 | 10 mm² configurations use Class 2 conductors. |
| Core insulation | Special PVC | Select the correct total core count and conductor area. |
| Protective conductor | Green-yellow insulated conductor | Included in the total cable core count. |
| Three-core identification | Natural, red and green-yellow | Two other cores plus one protective core. |
| Four-core identification | Natural, red, blue and green-yellow | Three other cores plus one protective core. |
| Five-core identification | Natural, red, blue, black and green-yellow | Four other cores plus one protective core. |
| Core assembly | Twisted power and protective conductors | Match the arrangement to the equipment circuit diagram. |
| Inner sheath | PVC | Retain this separate sheath layer in the ordering specification. |
| Outer sheath | Special flame-retardant PVC; yellow | Confirm the required sheath marking with the order. |
Match the conductor to the termination
Confirm whether solid Class 1 or stranded Class 2 conductors are required for the selected size, and match the terminal design to that conductor construction. Specify Class 2 for the 10 mm² configurations. A total core count includes the protective conductor; it is not an additional core outside the stated configuration.
Preserve the inner sheath requirement
Include both PVC sheath layers when requesting a replacement. A similar yellow outside appearance does not identify the inner construction, so check the complete model designation and the cable cross-section together.
Applications

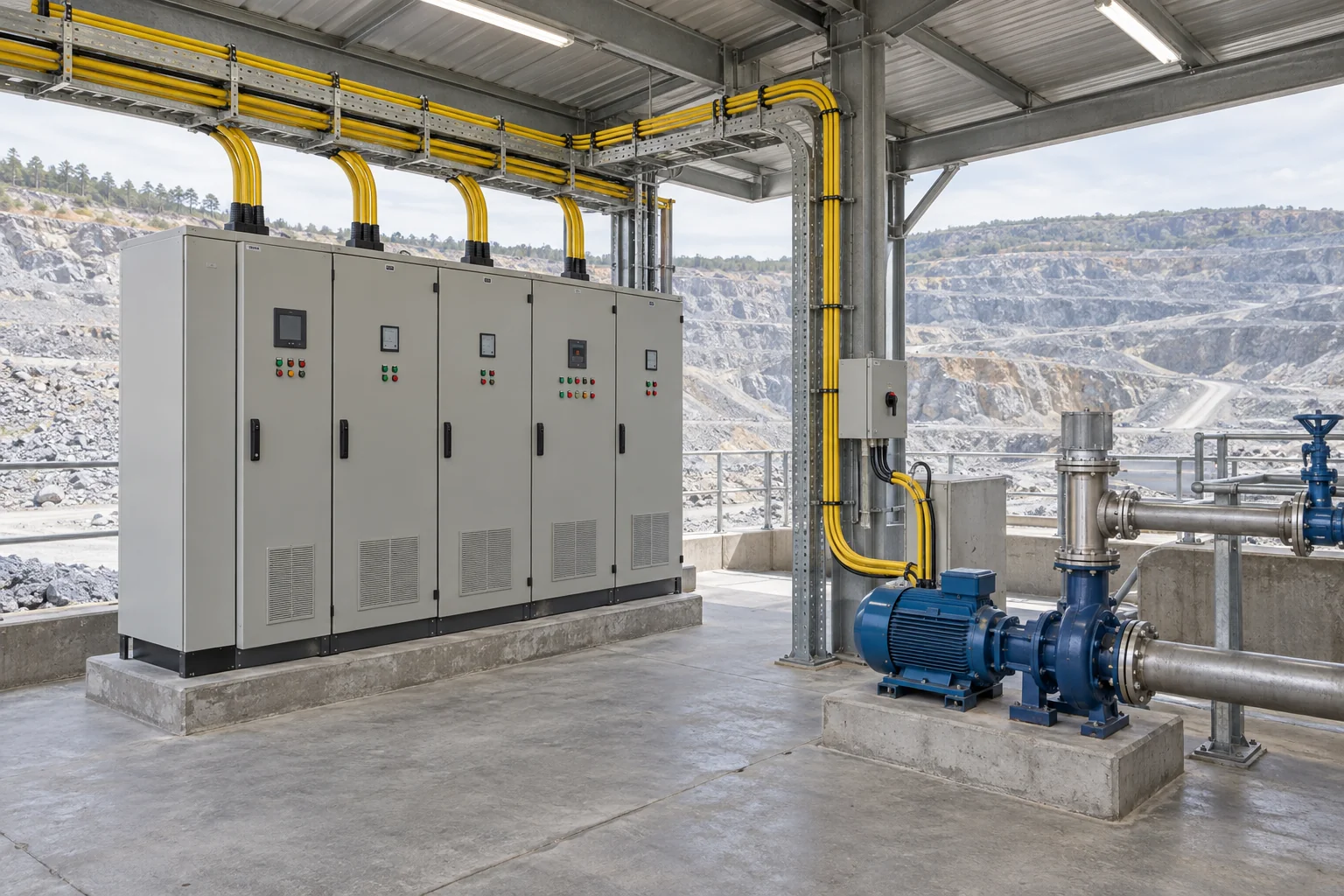

YKGYyn-żo supplies electrical equipment in strip, open-pit and underground mines without an explosion hazard, including underground excavation sites with class A coal dust hazard. Select the cable against the site classification and the equipment wiring schedule.
- Mine equipment power circuits: match the number of insulated conductors and the protective conductor to the circuit.
- Installed cable routes: check supports, entry clearances and the required bend geometry before specifying the cable length.
- Replacement planning: compare the complete model, core count, conductor area and sheath construction with the existing connection.
Plan cold-weather installation separately
The -30 °C operating limit does not permit installation at that temperature. Plan laying and termination for at least -5 °C, and confirm site handling conditions before work begins. Maintain a minimum bend radius of 10 × the cable outside diameter at route changes and equipment entries.
Describe any movement and exposure
For a route involving continuous reeling, repeated flexing, immersion, oil or severe mechanical loading, send the full operating duty for engineering selection. The core class and flame-test references alone do not establish suitability for those conditions.
Use the correct dimensional envelope
The inner and outer sheaths must both fit the selected gland and cable support. Check the maximum diameter for the exact core arrangement before reusing fittings from a differently constructed cable.
Specifications
Select the exact YKGYyn-żo configuration below. OD means the finished cable outside diameter. Dimensions are maximum outside diameters; use the configuration-specific weight when planning lengths and handling.
| Parameter | Value |
|---|---|
| Rated voltage U₀/U | 0.6/1 kV |
| Test voltage | 3.5 kV |
| Conductor construction | Copper, Class 1 or Class 2; 10 mm² is Class 2 |
| Core counts | 3, 4 or 5, including the green-yellow protective core |
| Listed conductor areas | 1.5, 2.5, 4, 6 and 10 mm² |
| Operating temperature range | -30 to +70 °C |
| Minimum installation temperature | -5 °C |
| Minimum bending radius | 10 × OD |
| Outer sheath color | Yellow |
Dimensions and ordering configurations
The designation gives the total core count × conductor area in mm². For example, YKGYyn-żo 4x2.5 contains four 2.5 mm² conductors, including the green-yellow protective conductor.
| Model + configuration (mm²) | Max. OD (mm) | Weight (kg/km) |
|---|---|---|
| YKGYyn-żo 3x1.5 | 13.9 | 260 |
| YKGYyn-żo 4x1.5 | 14.8 | 300 |
| YKGYyn-żo 5x1.5 | 15.6 | 350 |
| YKGYyn-żo 3x2.5 | 14.7 | 310 |
| YKGYyn-żo 4x2.5 | 15.8 | 355 |
| YKGYyn-żo 5x2.5 | 16.6 | 425 |
| YKGYyn-żo 3x4 | 16.6 | 410 |
| YKGYyn-żo 4x4 | 17.9 | 480 |
| YKGYyn-żo 5x4 | 19.0 | 580 |
| YKGYyn-żo 3x6 | 17.7 | 490 |
| YKGYyn-żo 4x6 | 19.1 | 590 |
| YKGYyn-żo 5x6 | 20.3 | 720 |
| YKGYyn-żo 3x10* | 20.1 | 560 |
| YKGYyn-żo 4x10* | 21.9 | 660 |
| YKGYyn-żo 5x10* | 23.3 | 820 |
* 10 mm² conductors are Class 2 according to PN-EN 60228.
Power-conductor electrical data
Assess the listed current values against the installation method, ambient conditions, grouping and load profile before selecting the conductor area. The short-circuit values below apply for one second at the maximum long-term conductor temperature; they are separate from continuous current capacity.
| Conductor area (mm²) | Resistance (Ω/km) | Inductance (mH/km) | Reactance (Ω/km) | Reference current (A) | 1-second short circuit (kA) |
|---|---|---|---|---|---|
| 1.5 | 12.1 | 0.34 | 0.107 | 19 | 0.17 |
| 2.5 | 7.41 | 0.32 | 0.099 | 27 | 0.29 |
| 4 | 4.61 | 0.32 | 0.100 | 37 | 0.46 |
| 6 | 3.08 | 0.30 | 0.095 | 47 | 0.69 |
| 10 | 1.83 | 0.28 | 0.089 | 62 | 1.15 |
For quotation, provide the circuit current, protective-device clearing time and route conditions so the cable size and protection arrangement can be reviewed together.
Standards
YKGYyn-żo uses the following conductor and flame-performance references. Include the required inspection documents and cable marking in the inquiry.
| Reference or test | Requirement / role |
|---|---|
| PN-EN 60228 | Class 1 solid or Class 2 stranded copper conductors; 10 mm² configurations use Class 2. |
| PN-EN 60332-1 | Single-cable flame-performance test reference. |
| PN-EN 60332-3-24 / IEC 60332-3 | Bunched-cable flame-performance test references. |
| Oxygen index | Greater than 29. |
| Voltage test | 3.5 kV. |
The yellow PVC sheath is selected for flame performance. Confirm the installation location and required documentation as part of the order, including the applicable mine area classification. Download the YKGYyn-żo technical datasheet for the complete construction and numerical tables.
Request Quote
Send the YKGYyn-żo configuration, required voltage, length and quantity, installation duty, equipment connection details and sheath color. Include the protective-core, screen or armor requirements that apply to the selected construction, together with inspection requirements.
You can also use our technical contact form.
