YnOGY 0.6/1 kV PVC Mining Cable
YnOGY mining cable supplies stationary and portable mine equipment at 0.6/1 kV in areas without an explosion hazard.
- Flexible Class 5 copper conductors.
- PVC insulation, inner sheath and outer sheath.
- 4-, 5- and 7-core arrangements with a protective conductor.
- Control cores available in the 5- and 7-core layouts.
- Operating temperature range: -30 to +70 °C.
- Minimum bend radius: 6 × OD fixed; 10 × OD movable.
Send the complete core configuration, installation duty, cable length and quantity for a technical quotation.
YnOGY Mining Cable for Equipment Power Supply
YnOGY mining cable is a 0.6/1 kV PVC-insulated and PVC-sheathed cable for supplying stationary and portable electrical equipment in underground, open-pit and strip mines where no explosion hazard exists. Flexible Class 5 copper conductors are combined with a protective conductor, with control cores included in selected configurations.
Start selection with the equipment wiring schedule. A four-core construction contains three power conductors and one protective conductor. Five-core and seven-core arrangements add one or three control conductors respectively. These layouts serve different connection requirements, so matching only the power-conductor cross-section will not identify the complete cable.
- Check the whole designation: specify power, protective and control conductor sizes together.
- Match the installation: fixed and movable routes have different minimum bending requirements. Check the route and termination clearances before choosing a diameter.
- Choose the correct construction: YnOGY is the unscreened member of this family; a requirement for a screen or armor calls for a separate construction review.
- Confirm the operating location: this selection is for mining areas without an explosion hazard.
The Specifications section includes the available core layouts, maximum outside diameters, cable weights and reference electrical data. Use these together when comparing a replacement cable. Explore the wider mining cable range for other installation duties, or download the YnOGY datasheet.
Construction

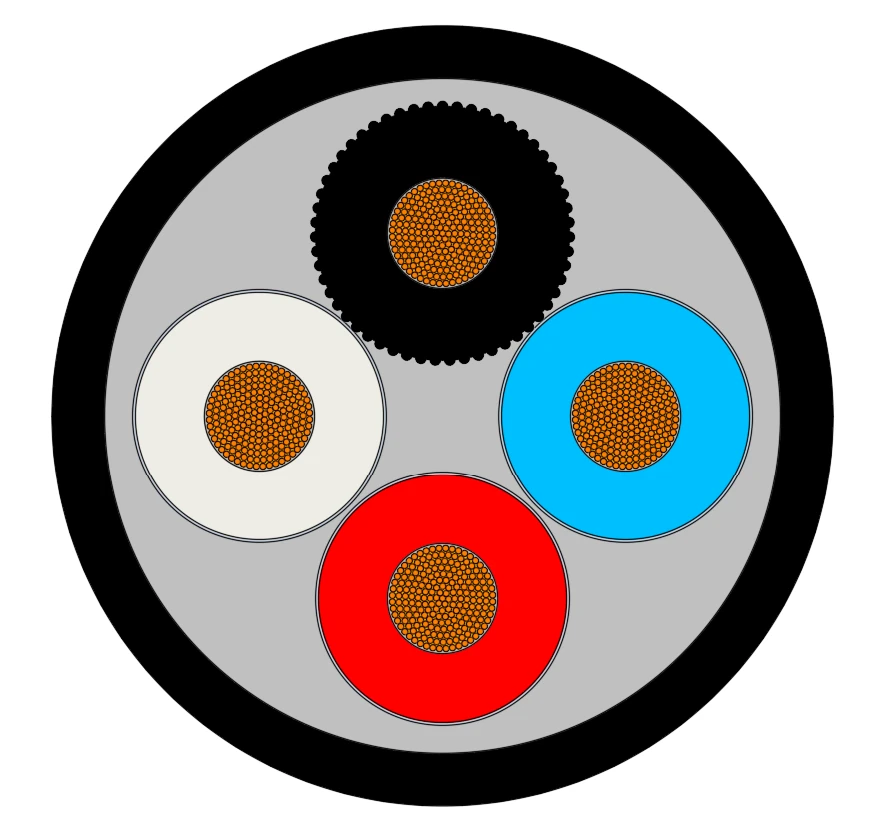

The YnOGY design combines flexible copper conductors, PVC insulation and an inner and outer PVC sheath. The protective conductor has a distinctive corrugated black covering for identification within the assembly.
| Component | YnOGY construction | Selection note |
|---|---|---|
| Conductors | Copper, Class 5 to PN-EN 60228 | Choose the complete power, protective and control conductor schedule. |
| Power-core insulation | PVC; natural, red and blue identification | Three power conductors in each listed configuration. |
| Protective conductor | Black corrugated covering | Its cross-section can differ from the power conductors; use the exact configuration. |
| Control cores | One core: brown. Three cores: natural, red and blue. | Included in five- and seven-core constructions respectively. |
| Assembly | Conductors laid around a central filler | The four-core cross-section illustrates one configuration. |
| Inner sheath | PVC | Forms the inner sheath around the assembled cores. |
| Outer sheath | Special flame-retardant PVC | Confirm the required sheath color and marking in the order. |
Select the required sheath color

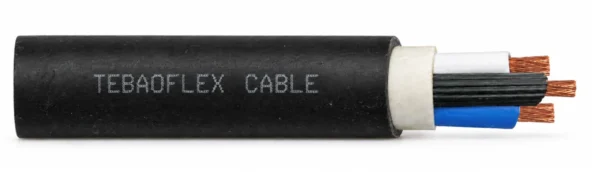

The product view shows a black sheath. Confirm the required color, including a yellow-sheath requirement, together with the cable marking before ordering.
Keep screened variants separate
Specify YnOGY when an unscreened construction is required. If the equipment specification calls for a screen, send its type and connection requirements with the quotation request; a similar model name or matching power-core size does not establish an equivalent construction.
Applications

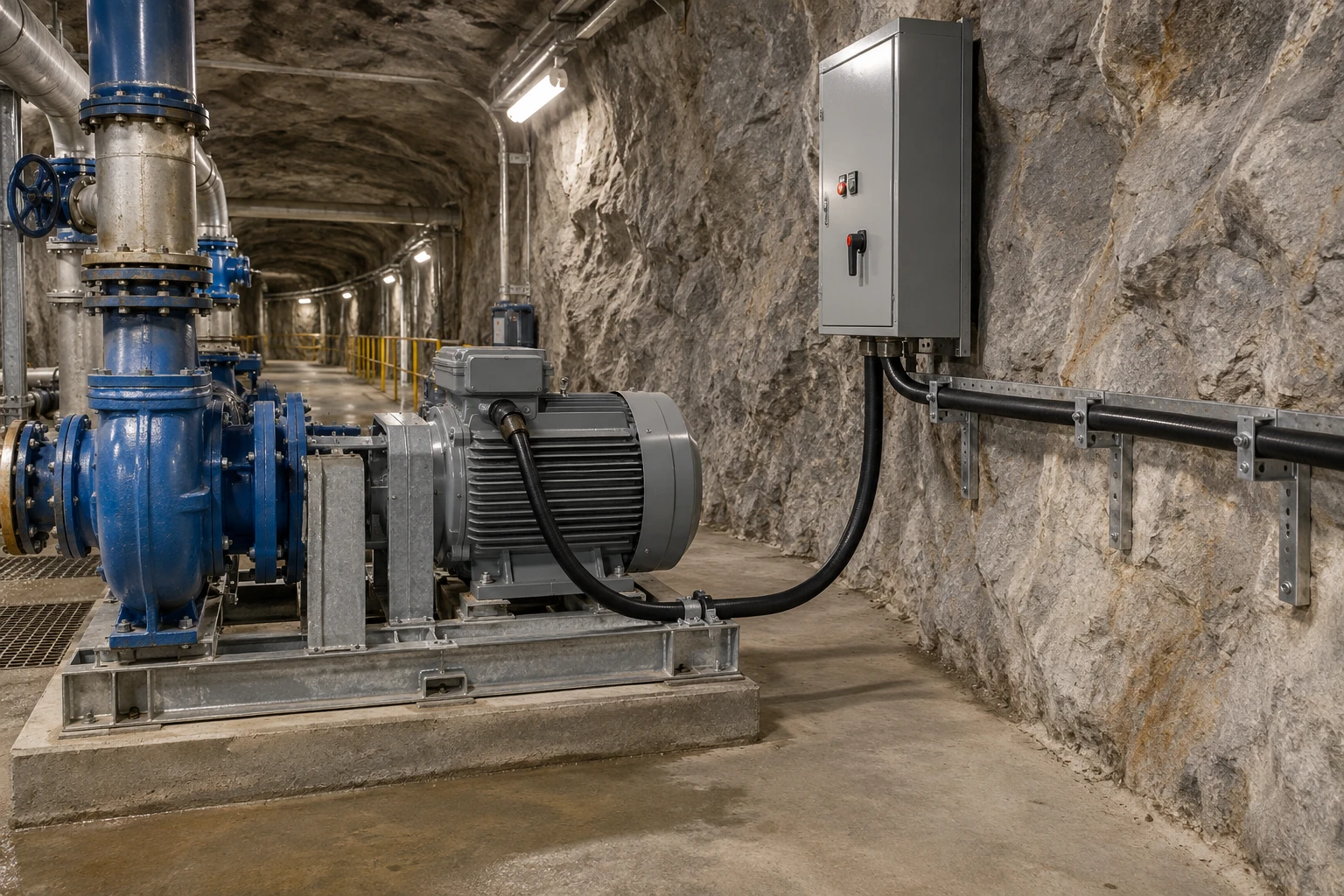

Use YnOGY for the electrical supply of stationary and portable equipment in underground, open-pit and strip mines where no explosion hazard exists. Select the core arrangement to match the equipment power, protective and control circuits.
- Stationary equipment connections: plan the supported cable route, gland entry and fixed bends together.
- Portable equipment supply: allow for the larger movable-installation bend radius and protect the route from mechanical damage.
- Combined power and control: choose the five- or seven-core arrangement only when its control-core count and sizes match the equipment wiring.
Define the movement before specifying the cable
Portable equipment service does not by itself define a continuous reeling or repeated-torsion duty. Before ordering, ask our engineers to confirm the cable selection for the actual movement, unsupported length, handling method and termination arrangement.
Check the mine environment
Confirm the location's explosion-hazard classification before selection. For routes exposed to oil, chemicals, standing water or significant mechanical loading, include those conditions in the technical inquiry so the required sheath and protection can be reviewed.
Different installation requirements
For a 0.6/1 kV armored construction, compare MGM 109 Type 1012/1013/1014 mining cable. For a medium-voltage tunnel feeder, review (N)3GHSSYCY tunnel cable. These serve different specifications and require their own voltage, construction and installation checks.
Specifications
Use the complete YnOGY designation to select the core arrangement. Outside diameter is stated as a maximum; D in the bend-radius requirement means the finished cable outside diameter.
| Parameter | Value |
|---|---|
| Rated voltage U₀/U | 0.6/1 kV |
| Operating temperature range | -30 to +70 °C |
| Maximum short-circuit temperature | 160 °C |
| Minimum bending radius, fixed installation | 6 × D |
| Minimum bending radius, movable installation | 10 × D |
| Core arrangements | 4, 5 or 7 conductors; configurations below |
| Power-conductor cross-sections | 2.5–120 mm² across the listed configurations |
Dimensions and ordering configurations
All conductor areas are in mm². For example, YnOGY 3x25+16+3x2.5 means three 25 mm² power conductors, one 16 mm² protective conductor and three 2.5 mm² control conductors. Check gland capacity against the maximum OD and lifting or handling requirements against the cable weight.
| Model + configuration | Power (mm²) | Protective (mm²) | Each control (mm²) | Max. OD (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| YnOGY 3x2.5+2.5 | 2.5 | 2.5 | — | 17.6 | 424 |
| YnOGY 3x4+4 | 4 | 4 | — | 18.6 | 502 |
| YnOGY 3x6+6 | 6 | 6 | — | 21.3 | 616 |
| YnOGY 3x10+10 | 10 | 10 | — | 24.7 | 800 |
| YnOGY 3x16+16 | 16 | 16 | — | 28.6 | 1377 |
| YnOGY 3x25+16 | 25 | 16 | — | 35.1 | 2050 |
| YnOGY 3x35+16 | 35 | 16 | — | 38.3 | 2500 |
| YnOGY 3x50+25 | 50 | 25 | — | 44.2 | 3435 |
| YnOGY 3x70+25 | 70 | 25 | — | 49.7 | 4487 |
| YnOGY 3x95+25 | 95 | 25 | — | 56.6 | 5780 |
| YnOGY 3x120+25 | 120 | 25 | — | 60.7 | 6900 |
| Model + configuration | Power (mm²) | Protective (mm²) | Each control (mm²) | Max. OD (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| YnOGY 3x2.5+2.5+2.5 | 2.5 | 2.5 | 2.5 | 19.0 | 469 |
| YnOGY 3x4+4+4 | 4 | 4 | 4 | 20.3 | 588 |
| YnOGY 3x6+6+4 | 6 | 6 | 4 | 23.1 | 738 |
| YnOGY 3x10+10+6 | 10 | 10 | 6 | 26.8 | 1054 |
| Model + configuration | Power (mm²) | Protective (mm²) | Each control (mm²) | Max. OD (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| YnOGY 3x4+4+3x4 | 4 | 4 | 4 | 23.0 | 810 |
| YnOGY 3x6+6+3x6 | 6 | 6 | 6 | 26.5 | 1255 |
| YnOGY 3x25+16+3x2.5 | 25 | 16 | 2.5 | 39.2 | 2780 |
| YnOGY 3x35+16+3x2.5 | 35 | 16 | 2.5 | 42.7 | 3684 |
Reference electrical data
The following values apply to the power-conductor cross-section. Confirm the installation method, ambient temperature, grouping and load profile when selecting conductor size; the listed current values must be assessed for the actual route.
| Power cross-section (mm²) | Reactance (Ω/km) | Inductance (mH/km) | Reference current capacity (A) |
|---|---|---|---|
| 2.5 | 0.110 | 0.35 | 27 |
| 4 | 0.101 | 0.32 | 37 |
| 6 | 0.101 | 0.32 | 47 |
| 10 | 0.097 | 0.31 | 66 |
| 16 | 0.094 | 0.30 | 87 |
| 25 | 0.094 | 0.30 | 113 |
| 35 | 0.091 | 0.29 | 140 |
| 50 | 0.091 | 0.29 | 172 |
| 70 | 0.088 | 0.28 | 212 |
| 95 | 0.088 | 0.28 | 257 |
| 120 | 0.085 | 0.27 | 295 |
Standards
The following conductor and flame-test references apply to the YnOGY construction. Keep the power- and control-conductor voltage tests separate when specifying inspection requirements.
| Reference or test | Requirement / role |
|---|---|
| PN-EN 60228 | Class 5 copper conductor reference. |
| PN-EN 60332-1 | Single-cable flame-performance test reference. |
| PN-EN 60332-3-24 / IEC 60332-3 | Bunched-cable flame-performance test references. |
| Oxygen index | Greater than 29. |
| Power-conductor test voltage | 3.2 kV. |
| Control-conductor test voltage | 2 kV. |
Include the required test report, cable marking and inspection documentation with the inquiry. Open the YnOGY technical datasheet (PDF) for the complete dimension and electrical tables.
Request Quote
Send the YnOGY configuration, required length and quantity, fixed or movable installation, equipment connection details and sheath color. Include any control-core and inspection requirements.
You can also use our technical contact form.
