1kV NSHTOEU Scoops LHDs Underground Mining Reeling Cable

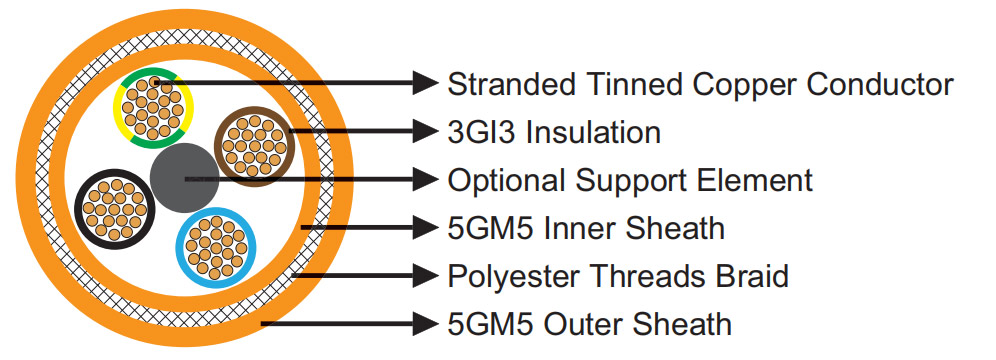

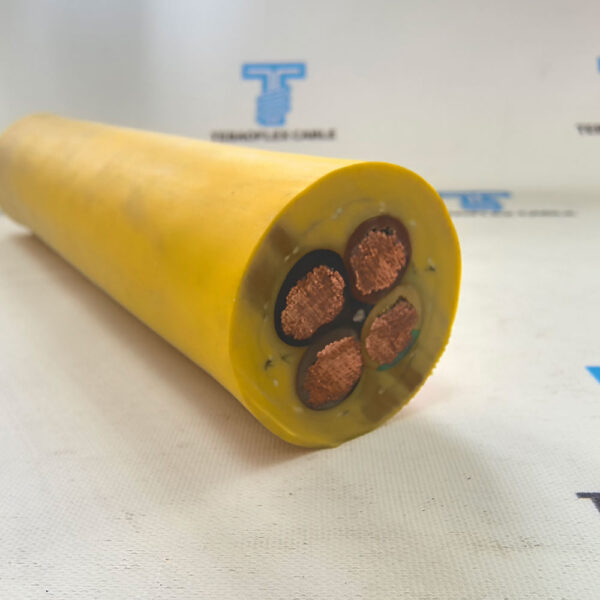

Construction of NSHTOEU Scoops LHDs Reeling Cable

tebaoflex-NSHTOEU-cable

Voltage: 0.6/1kV
Conductor: Flexible stranded tinned copper conductor, class 5.
Core identification: Power cores: Black, Grey, Brown or natural coloring with black figures;
Protective earth: Green-Yellow
Insulation: EPR type 3GI3.
Optional Support Element: Central support element made of aramid yarns with rubber covering
Inner Sheath: PCP type 5GM5.
Anti-torsion Braid: Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath, Surface covered: approx. 25%.
Outer Sheath: PCP type 5GM5 (Yellow or Orange)

Temperature range: Fixed: -40°C to +80°C
Flexed: -25°C to +80°C
Maximum Short Circuit Temperature: +250°C
Min Bending Radius Current Carrying Acc. to DIN VDE 0298 part 3
Capacity: According to DIN VDE0298, Part 4
Bending radii min.: Acc. to DIN VDE 0298 part 3
Max.Tensile Load Of cable: 30N/mm²
Max. Torsion: 25º/m
Min. distance with S-type directional changes: 20xD
Travel speed: max. 160 m/min
Additional tests: Reversed bending test, roller bending test

1kV NSHTOEU Scoops LHDs Underground Mining Standard

Construction: DIN VDE 0250-814
General Requirements: DIN VDE 0250-1
Guide Use: DIN VDE 0298-3
Electrical Tests: DIN VDE 0472-501, 503, 508
Non-Electrical Tests: DIN VDE 0472-401. 402,602,303, 615
Under Fire Condition Tests: DIN VDE 0472-803, 804
Flame Retardant: VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1
Oil Resistant: HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1

Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
Oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404/ IEC 60811-404

NSHTOEU Scoops LHDs Underground Mining Reeling Cable Technical Data

Number of cores x cross section	Colour	Conductor diameter max. mm	Outer diameter min. mm	Outer diameter max. mm	Weight (approx.) kg/km	Permissible tensile force max. N	Conductor resistance at 20°C max. Ω/km	Nominal operating capacitance µF/km	Induc– tance nom. mH/ km	Current carrying capacity (1) A	Short Circuit Current (conduc– tor) kA
NSHTOEU 4×16 (6kN) LHDs Cable	Orange	5.8	28	31	1450	1920	1.24	0.5	0.3	99	2.29
NSHTOEU 4×16 (6kN) LHDs Cable	Yellow	5.8	28	31	1450	1920	1.24	0.5	0.3	99	2.29
NSHTOEU 4×25 (6kN) LHDs Cable	Yellow	7.3	34	37	2260	3000	0.795	0.54	0.29	131	3.58
NSHTOEU 4×35 (12kN) LHDs Cable	Yellow	8.4	38	41	2930	4200	0.565	0.6	0.28	162	5.01
NSHTOEU 4×50 (12kN) LHDs Cable	Yellow	10.3	44.8	47.8	4000	6000	0.393	0.62	0.27	202	7.15
NSHTOEU 4×50(30kN) LHDs Cable	Yellow	10.3	42	44	3660	6000	0.393	0.62	0.27	202	7.15
NSHTOEU 4×70(20kN) LHDs Cable	Yellow	12	48.3	51.3	5050	8400	0.277	0.71	0.26	250	10.01
NSHTOEU 4×95 (50kN) LHDs Cable	Yellow	14	51	53	6030	11400	0.21	0.72	0.26	301	13.59
Nominal current carrying capacity for rubber cables laid on a surface, at 30°C ambient temperature (see also VDE 0298-4, Table 15). For derating-factors see tables in Technical Append

What’s the NSHTOEU Scoops LHDs cable？

1. Basic Introduction

NSHTOEU Cable (also marked NSHTÖU) is a VDE-standard (DIN VDE 0250-814) heavy-duty underground mining reeling cable specifically designed for specially engineered for underground mining Load-Haul-Dump (LHD) vehicles and scoops. It features excellent flexibility, torsion resistance, tensile strength and abrasion resistance, ideal for frequent reeling, dragging and heavy mechanical stress.

2. Code Meaning (VDE 0250 Part 814)

N: Compliant with German national VDE standards
S: Heavy-duty design with central tension member
H: Rubber insulation (EPR)
T: Textile braid for anti-torsion performance
O: Oil resistant
E: High tensile & elongation resistance
U: Flame retardant outer sheath

3. Main Technical Ratings

Rated voltage: 0.6/1 kV
Temperature range: -40°C ~ +90°C; -25°C ~ +60°C for dynamic operation
Minimum bend radius: 5 × overall diameter (dynamic); 4 × overall diameter (fixed)
Key properties: Anti-torsion (±25°/m), tensile, abrasion-proof, oil-resistant, flame-retardant, halogen-free, water & UV resistant

4. Applications

Underground mining LHDs and scoops
Mobile mining machinery, loaders and continuous miners
Equipment with single-drum reeling systems in narrow tunnels

Precautions of NSHTOEU Underground Mining Reeling Cable for Use

Reel diameter must be ≥ 12 × cable outer diameter Arrange in a single, neat layer; avoid crushing, crossing, or overlapping Guide wheels and rollers must be smooth, free of sharp edges or burrs

2. Environmental Requirements Underground roadways:
damp, dusty, and subject to rockfall/debris impact Resistant to machine oil, hydraulic fluid, emulsions, acids, and alkalis Flame-retardant and self-extinguishing; compliant with IEC 60332-1

3. Safety and Maintenance Requirements
Daily inspections Check outer sheath for cracks, abrasion, bulging, heat damage, or oil saturation Check connectors and terminations for looseness, overheating, or discoloration Check reel winding for neatness and ensure there is no jamming or binding

4. Prohibited Conditions
Outer sheath damaged, exposing the core Insulation aged, hardened, or cracked Broken conductor strands or overheated connections Torsion exceeding permissible limits or severe deformation

5. Common Specifications (Typical for LHDs (Local Hard Disk Loaders)
4×16 mm² (6 kN): Low-power
LHD 4×35 mm² (12 kN): Medium-power
LHD 4×50 mm² (12/30 kN): High-power LHD

NSHTOEU Mining LHD Loaders Cable Packaging Requirements

NSHTOEU cables are heavy-duty, high-tensile-strength, frequently wound cables. Packaging is uniformly done using: Solid wooden reels (standard): Export/Long-distance transport
All-iron reels (high strength): Large cross-section (≥35mm²), long length (≥200m) or repeated use in mines.

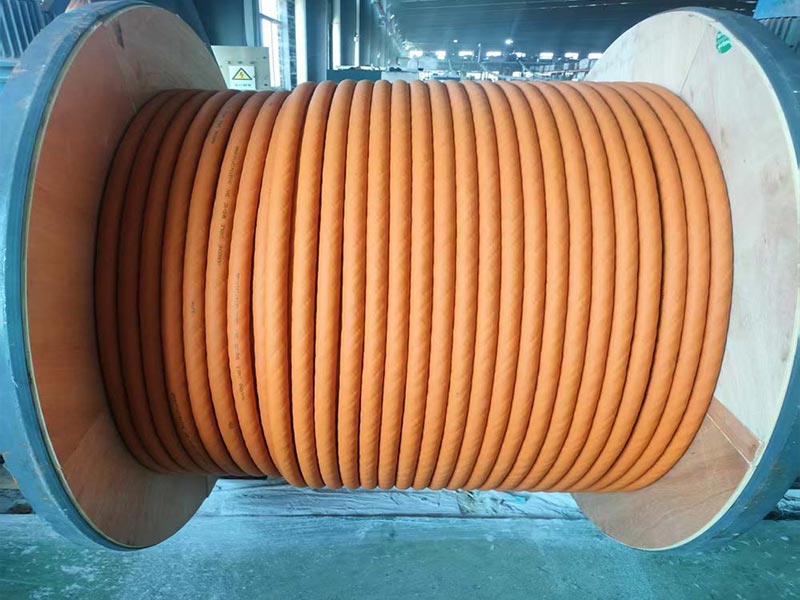

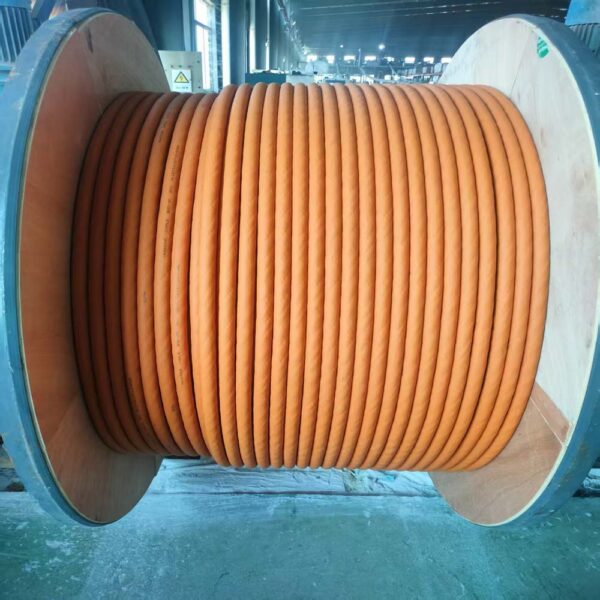

Tebaoflex-Reeling-NSHTOEU-Cable-Pakaging

The following are the standard reel dimensions (mm) for common NSHTOEU reels with outer diameters of 25–50mm and lengths of 100–300m:

1) Reel Diameter (Outer Diameter) OD
Common: 800 / 1000 / 1250 / 1400 mm
Common for LHD: 1000 mm (100–200m), 1250 mm mm (200–300m)

2) Shaft Diameter (Cylinder Diameter) ID

Must meet: ID ≥ 20 × Cable Outer Diameter (to prevent factory bending damage)

Typical: 350 / 400 / 500 mm
For NSHTOEU (outer diameter ≈ 30–45mm): Recommended ID ≥ 500 mm

3) Coil Width (Inner Width) W
Single Layer Winding: W = Cable Length Layout Width + 50mm Allowance
Common: 400 / 500 / 600 mm
LHD Common: 500 mm

4) Side Plate Thickness
Solid Wood: 25–30 mm
Iron Wood / Iron Coil: 20–25 mm

NSHTOEU Cable FAQ

Q: What is NSHTOEU cable mainly used for?

A: It is a 0.6/1 kV heavy-duty reeling cable specially designed for mining LHDs, scoops and other mobile underground mining machines.
Q: What are its core advantages?

A: It features outstanding flexibility, torsion resistance, tensile strength, abrasion resistance, oil resistance and flame retardancy.
Q: What standard does NSHTOEU comply with?

A: It is manufactured in accordance with VDE 0250 Part 814, the German industrial standard for mining cables.
Q: What is the operating temperature range?

A: The static temperature ranges from -40°C to +90°C, and the dynamic working temperature is -25°C to +60°C.
Q: Does this cable have a tension member?

A: Yes. It is fitted with a central steel wire or aramid fiber tension member to withstand pulling force during reeling.
Q: How is it different from SHD-GC mining cable?

A: NSHTOEU is low-voltage unshielded cable for LHDs, while SHD-GC is high-voltage shielded cable equipped with ground check function.
