Mining Trailing Cable
Product Categories
Heavy-duty rubber cables for mining, port cranes, submersible pumps, EV charging, elevators and marine duty. Pick a family to filter the range.
Mining Trailing Cable
TEBAOFLEX mining trailing cables connect shovels, draglines, continuous miners, shuttle cars and LHD loaders to the mine power system while the machine moves. The range spans two families: ICEA types such as SHD-GC, G-GC and Type W, rated 600/2000 V to 25 kV in AWG/kcmil sizes with grounding and ground-check conductors where the type requires them, and VDE types such as NSSHCGEÖU, NSHTOEU and (N)TSCGEWÖU, rated 0.6/1 kV to 20/35 kV in mm² with Class 5 conductors.
Showing 49–54 of 54 results
-

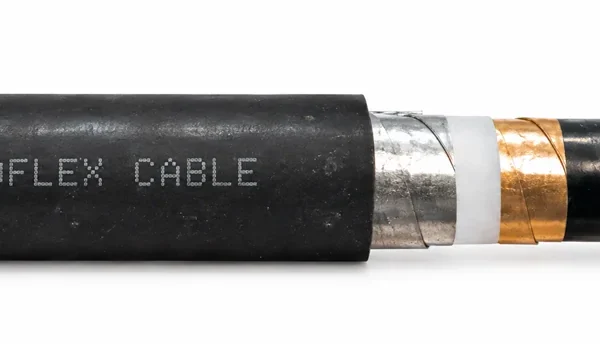

YKGYFtZnyn 3.6/6 kV Steel Tape Armored Mining Cable
-

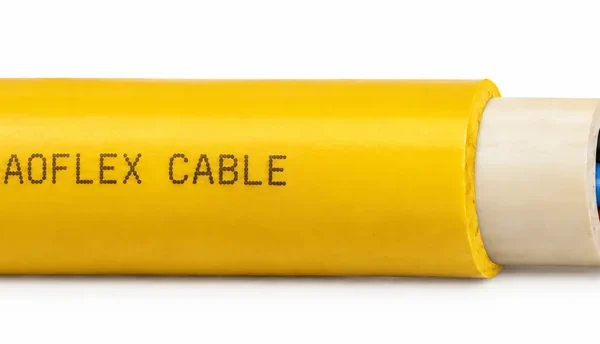

YKGYyn-żo 0.6/1 kV PVC Mining Cable with Inner Sheath
-

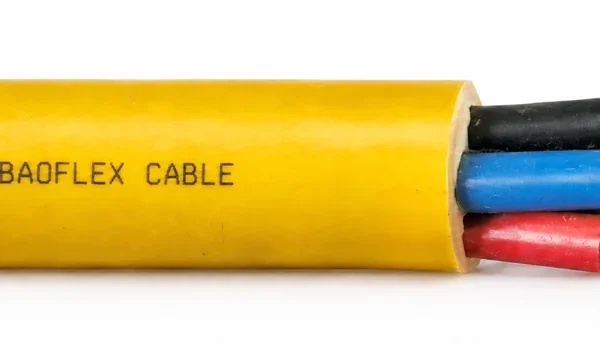

YnKGY-żo 0.6/1 kV PVC Mining Power Cable
-

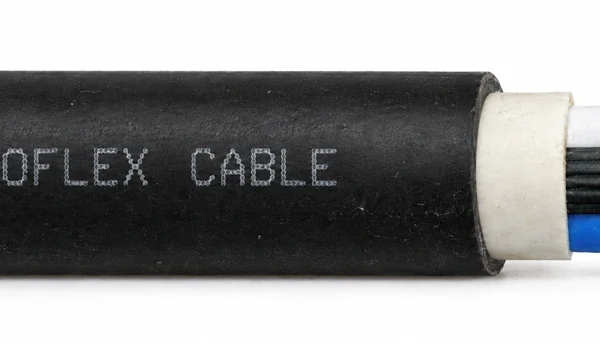

YnOGY 0.6/1 kV PVC Mining Cable
-

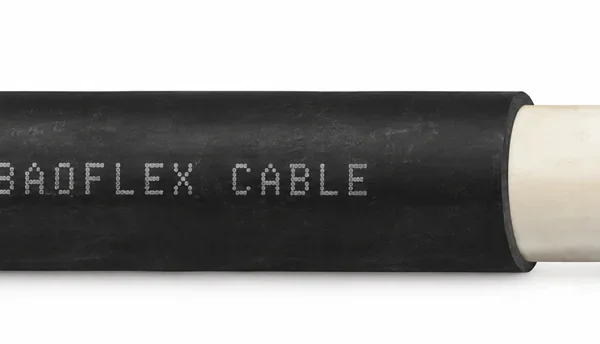

YnOGYek 0.6/1 kV Screened Mining Cable
-

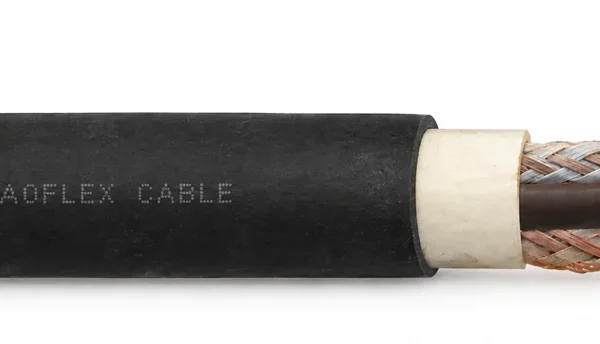

YnOGYekm 0.6/1 kV Braid-Screened Mining Cable
Selection Guide
Mining Trailing Cable Selection Guide
Model comparison, operating conditions and RFQ checklist.
Product Advantages
What sets TEBAOFLEX Mining Trailing Cable apart in service.
ICEA and VDE Families
North American ICEA types in AWG/kcmil and European DIN VDE 0250 types in mm², so the cable matches the rules the machine was designed around.
Earth Monitoring Conductors
Type G-GC and SHD-GC carry two grounds and one yellow-insulated ground-check conductor; NSSHCGEÖU(V) has concentric monitoring conductors around its control cores.
Low to Medium Voltage
600/2000 V Type W and G-GC, 0.6/1 kV NSSHCGEÖU and NSHTOEU, 2–25 kV SHD-GC and medium-voltage VDE types from 3.6/6 kV to 20/35 kV.
Flexible Tinned Copper
Stranded tinned copper to ASTM B-172 on Type G-GC and Type W, Class 5 flexible copper on VDE types, for cables that are dragged, reeled and flexed.
Feeder and Hoist Cables Too
Type MP-GC and (N)3GHSSYCY feeders, NTMTWOEU hoist cable, DLO leads and P1209 monitoring cable are listed alongside the trailing types.
CPE, PCP and LSZH Sheaths
CPE jackets on Type G-GC and Type W, CPE or TPU on SHD-GC, PCP 5GM5 on NSSHCGEÖU and NSHTOEU, and halogen-free sheaths on (N)3GHSSHCH for tunnels.
Technical Specifications
Capabilities across the Mining Trailing Cable range; each product page lists the exact construction, rating and reference standard.
| Specification | Available options |
|---|---|
| Product types | ICEA trailing types (SHD-GC, G-GC, W); VDE trailing and reeling types (NSSHCGEÖU, NSHTOEU, (N)TSCGEWÖU family, (N)TMCGETMPU); also listed: feeder, hoist, DLO and signal cables (MP-GC, (N)3GHSSYCY, NTMTWOEU, P1209, LiYCY) |
| Rated voltage | 600/2000 V (Type W, G-GC); 2–25 kV (SHD-GC); 5–15 kV (MP-GC feeder); 0.6/1 kV to 20/35 kV U0/U (VDE types); 0.69/1.15 kV (TRM-J, TRMC-J) |
| Conductor | Stranded tinned copper to ASTM B-172 (Type W, G-GC); bare or tinned copper (SHD-GC); Class 5 flexible tinned or bare copper to IEC 60228 / DIN VDE 0295 (VDE types) |
| Cross-section | AWG/kcmil on ICEA types, e.g. 4/0 AWG Type W and 535 kcmil DLO; mm² on VDE types, e.g. 3×25/16 to 3×150/70 (NSSHCGEÖU(V)) and 4×16 to 4×95 (NSHTOEU) |
| Insulation | EPR (G-GC, Type W, VDE types to 3GI3); EPDM (SHD-GC, some VDE medium-voltage types); XLPE (MP-GC XLPE/PVC version); flame-retardant XLPO (125 °C DLO) |
| Sheath | CPE (G-GC, Type W, MP-GC EPR/CPE); CPE or TPU (SHD-GC); PCP or synthetic rubber 5GM5/5GM3 (VDE types); TPU ((N)TMCGETMPU, (N)TMCGCW11Y); halogen-free ((N)3GHSSHCH); PVC ((N)3GHSSYCY, P1209) |
| Grounding and monitoring | Two grounds plus one insulated ground-check conductor (SHD-GC, G-GC, MP-GC); no bare grounds (Type W); ground-check conductor ((N)TMCGETMPU); concentric copper/steel earth with monitoring conductors (NSSHCGEÖU); split or concentric earth with optional pilot cores (NTSCGECWOEU) |
| Reinforcement | Polyester or polyamide anti-torsion braid (NSHTOEU, R-(N)TSCGEWÖU); copper–steel braid (NSSHCGEÖU(V), NSSHCGEÖU(Z)); optional polyester braid (Type W); galvanised steel wire braid (tunnel feeders) |
| Temperature | 90 °C maximum conductor temperature on most power types; -40 to +90 °C (Type W); fixed -40 to +80 °C and flexible -25 to +60/+80 °C on most VDE types; -55 to +125 °C (XLPO DLO) |
| Minimum bending radius | 6 × OD (Type W); 10 × OD (NSSHCGEÖU(V)); 6 × OD fixed and 10 × OD flexed ((N)TSCGECEWÖU); several VDE pages refer to DIN VDE 0298-3 |
| Reference standards | ICEA S-75-381, ICEA S-66-524, ICEA S-95-658, ASTM B-172, AAR RP-585/S-501; DIN VDE 0250 Parts 812, 813 and 814; DIN VDE 0298-3 |
| Documents | Datasheet, test report and certification documents for the exact model on request at RFQ stage |
Application Scenarios
Where Mining Trailing Cable from TEBAOFLEX is installed.
01
Continuous Miners and Shuttle Cars
2000 V Type G-GC with two grounds and a ground-check conductor for AC track equipment; flat Type W for DC off-track shuttle cars, drills and loaders.
02Coal Cutters and Longwall Shearers
NTSCGECWOEU medium-voltage trailing cable with split or concentric earth for shearers and longwall systems; 0.6/1 kV NSSHCGEÖU(V) for coal cutters and roadheaders.
03Heavy LHDs and TBMs
NSSHCGEÖU(Z) adds a double-layer copper–steel braid for heavy LHDs, TBMs and longwall equipment on high-speed drums, tight sheaves and vertical shafts.
04Shovels, Draglines and Excavators
Type SHD-GC at 2–25 kV with braid-shielded power cores, or R-(N)TSCGEWÖU reeling cable at 3.6/6–18/30 kV with a polyamide anti-torsion braid.
05Dredgers and Submersible Pumps
(N)TSCGEWÖU submersible versions for permanent use in salty or brackish water up to 300 m, for pumps, dredges and floating docks.
06Mine Power Feeders and Tunnels
Type MP-GC at 5–15 kV for non-flexing feeders in duct, tray or direct burial; (N)3GHSSHCH with halogen-free sheaths for tunnel feeders.
How to Choose Mining Trailing Cable
Four decisions specify the right cable the first time; send them with your RFQ and our engineers confirm the type designation.
1
ICEA or VDE
Follow the machine and site electrical rules: ICEA type letters with AWG/kcmil sizes, or DIN VDE 0250 type codes with U0/U ratings and mm² sections.
2
Voltage and Cores
Rated voltage, number and size of power cores, and the grounding, ground-check, pilot, control or fibre-optic cores the protection system needs.
3
Movement Type
Trailing, drum reeling, festoon, suspended or fixed duty; compare drum and sheave diameters, travel speed and tensile load with the product limits.
4
Site Environment
Permanent immersion only for submersible builds, the flexing temperature for mobile machines, and halogen-free, low-smoke sheaths where tunnels require them.
Industry Solutions
Cable packages engineered around the application, not just the cable.
Open Pit
Open-pit Mining
ICEA Type SHD-GC for shovels and drills, with Type W, G-GC and DLO cables for North American-specified mobile equipment.
VDE Types
VDE Mining Cable
DIN VDE 0250 types from 0.6/1 kV to 20/35 kV for LHD reels, open-cast excavators, dredgers and tunnel boring machines.
Global Projects
Recent deliveries from the TEBAOFLEX project team.
Standards & Certifications
ISO 9001 quality management for cable production; ISO 14001 and ISO 45001 for sales and related management. UL and cUL (flexible cord), VDE (EN 50525-2-21), Korea KC, China MA and US MSHA approvals cover the certified types; CE is a third-party verification of conformity (VoC).
ISO 9001ISO 14001ISO 45001ULcULVDEKC (KTL)MAMSHACE VoC
Manufacturing Process
From compound to shipment, the production steps and routine tests behind each cable length.
- 1
Compound preparation
EPR, CPE, PUR and silicone compounds are mixed and tested for hardness, tensile strength and elongation before use.
- 2
Conductor stranding
Tinned or bare copper is bunched and rope-stranded to Class 5/6 flexibility for trailing and reeling duty.
- 3
Insulation extrusion
Cores are extruded and continuously vulcanised; wall thickness and spark tests are recorded on every length.
- 4
Core assembly and screening
Cores, earth conductors, pilot and fibre-optic elements are laid up with the fillers and screens the type designation requires.
- 5
Inner and outer sheathing
Reinforced double-sheath constructions are extruded and cured for abrasion, oil and tear resistance.
- 6
Routine electrical tests
Conductor resistance, voltage withstand and insulation resistance tests at the levels set by the referenced standard.
- 7
Mechanical and ageing tests
Bending, tensile, hot-set, ozone and flame tests according to the referenced standard.
- 8
Marking, packing and shipment
Metre marking, drum packing and documentation for worldwide project delivery.
Cable Manufacturing Quality Control
Five-stage quality assurance from incoming copper to the packed drum.
- 01
Raw Material Inspection
Every batch of copper rod, rubber compound and reinforcing material is checked before it reaches the line.
- Copper: conductor resistance, elongation and surface condition on incoming rod and drawn wire
- EPR, CPE, PUR and silicone compounds: hardness, tensile strength, elongation and ageing samples from each mix
- 02
Manufacturing Process Control
Stranding, insulation extrusion, core assembly and sheathing run under recorded process parameters.
- Class 5/6 stranding with lay length and tension monitored for trailing and reeling flexibility
- Continuous-vulcanisation extrusion with wall thickness and spark tests logged on every length
- Operators sign off each stage before the cable moves to the next machine
- 03
Electrical Testing
Finished lengths go through the routine tests required by the referenced VDE, ICEA, IEC or NEK standard.
- Conductor resistance and insulation resistance on every length
- Voltage withstand test at the level set by the referenced standard
- Screen and pilot-core continuity checks for mining and reeling constructions
- 04
Mechanical and Ageing Tests
Samples from production are tested for the duty a mining, crane or submersible cable will actually see.
- Tensile strength and elongation of insulation and sheath before and after ageing
- Hot-set, ozone, oil-immersion and low-temperature bending tests
- Constant-temperature water bath for insulation resistance of submersible constructions
- 05
Flame Test and Final Inspection
Before packing, the cable is checked against the order and the flame-performance requirement of its standard.
- Single-cable vertical flame test to IEC 60332-1-2 where specified
- Metre marking, printing, drum length and appearance inspection
- Packing list with every shipment; test documents for the order confirmed at quotation
Factory & Workshop Gallery
TEBAOFLEX CABLE, No.77 Wusongbang Road, Taicang, Suzhou.
Related Articles
Selection and application guides from the TEBAOFLEX engineering team.
Oil Resistant Cable: PR I vs PR II
PR I is a 96-hour oil immersion, PR II is 1,440 hours with a higher pass mark. What the two UL ratings prove, and how to specify oil duty.
Read more
Abrasion-Resistant Mining Cable for Mobile Equipment
Why mining cable jackets wear out on mobile equipment, how CPE, TPU/PUR and PVC compare, and how to match the jacket to trailing or reeling duty.
Read more
Armoured and Static Mining Cable: Fixed Distribution Routes
Armoured mining cable suits static routes, not trailing duty, and its armour is pliable not rigid SWA. Compare fixed routes, pilot cores and standards.
Read moreFrequently Asked Questions
Quick answers about Mining Trailing Cable from our engineers.
01What is a mining trailing cable?
A mining trailing cable is a flexible, heavy-duty power cable that connects a moving mining machine, such as a shovel, dragline, continuous miner, shuttle car or LHD loader, to the mine power system. It is built to be dragged, reeled and flexed, and usually carries grounding plus ground-check or pilot conductors so that the earth circuit can be monitored.
02Should I choose an ICEA or a VDE mining cable?
Choose the family your machine and site electrical rules were designed around; voltage alone does not make the two interchangeable. ICEA types use type letters such as W, G-GC and SHD-GC, one voltage figure such as 2000 V and AWG/kcmil sizes. VDE types use codes such as NSSHCGEÖU or (N)TSCGEWÖU, U0/U ratings from 0.6/1 kV to 20/35 kV, mm² sections and Class 5 conductors.
03What is the difference between Type G-GC, Type W and Type SHD-GC?
Type G-GC is a 2000 V round cable with three power cores, two grounding conductors and one ground-check conductor for continuous miners, shuttle cars and drills. Type W is rated 600/2000 V with 2 to 5 cores in flat or round form and no bare grounds. Type SHD-GC adds a copper braid over each power core and covers 2 kV to 25 kV for shovels, drills and mine feeders.
04Which cables carry ground-check or pilot conductors?
ICEA Type G-GC and SHD-GC have two grounding conductors and one yellow-insulated ground-check conductor, and Type MP-GC feeders have two bare grounds and one 8-gauge insulated ground check. Type W is used where bare grounding conductors are not required. On the VDE side, NSSHCGEÖU(V) carries control cores with concentric monitoring conductors, and (N)TMCGETMPU has a dedicated ground-check conductor.
05Are all cables in this category trailing cables?
No. Feeder, hoist, locomotive-wire and signal cables are listed here but are not trailing types. Type MP-GC and the (N)3GHSSYCY and (N)3GHSSHCH tunnel cables feed distribution equipment, NTMTWOEU hangs in hoist shafts, the DLO cables serve as motor, battery and locomotive leads, and P1209 and LiYCY carry monitoring or signal circuits. Choose a trailing or reeling type for machines that drag or reel their cable.
06What should I send with a mining trailing cable RFQ?
The type designation or existing cable marking (ICEA or VDE); rated voltage, number of cores and conductor size in AWG/kcmil or mm²; grounding, ground-check, pilot, control or fibre-optic cores; the machine and its movement, whether trailing, reeling (drum type and speed), festoon, suspended or fixed; water, oil, temperature, flame or LSZH requirements; and length per drum and total length.
Why Choose Us
A special-cable manufacturer in Taicang, Suzhou, making heavy-duty and special cables since 2014.
Certified Quality
UL and cUL, VDE, Korea KC, China MA and US MSHA approvals for the certified types, CE verification of conformity, and ISO 9001 quality management.
200+ Sets of Equipment
More than 200 sets of advanced production and test equipment at home and abroad, from compounding to final electrical testing.
15 Senior Cable Engineers
Constructions engineered to VDE, ICEA, IEC and NEK 606 standards and checked against the real duty cycle of your equipment.
1,500+ Cable Types
0.6/1 kV to 35 kV heavy-duty rubber cables, reeling and festoon crane cables, submersible, marine, ROV and high-temperature cables.
Custom Cable Design
Special constructions, fibre-optic elements, colours, printing and lengths built to the specification of your project.
Worldwide Project Supply
Cables working in tunnel engineering, marine and offshore equipment, mining, petrochemical, steel and urban construction projects around the world.
Can’t Find What You Need?
Send us the equipment, voltage, cores and operating conditions and our engineers will propose a cable construction and quotation.
